Circular vs Linear Vibrating Screen: Which is Better for Coal Mining?

In the coal mining and preparation industry, selecting the right screening machinery is not merely a matter of equipment preference; it directly impacts hourly tonnage, moisture control, and overall plant profitability. Among the various classification technologies available, the debate between the Circular Vibrating Screen and the Linear Vibrating Screen remains a core technical consideration for project engineers worldwide.

While both systems are engineered to separate material fractions by size, their operating mechanics, motion trajectories, and material handling capabilities are distinct. Deploying the wrong unit in a specific stage of coal processing can lead to severe material blinding, poor dewatering efficiency, and premature structural failure.

This comprehensive technical analysis from Dahan Machinery evaluates both configurations specifically within the context of coal mining and washing operations to guide your equipment selection and optimize plant efficiency.

Understanding the Fundamental Mechanical Differences for Coal Processing

To determine which configuration suits your coal processing line, it is essential to analyze how their motion dynamics interact with bulk materials under heavy industrial loads.

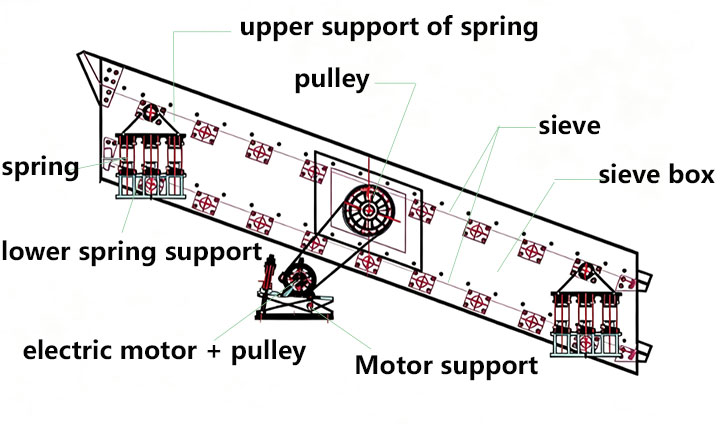

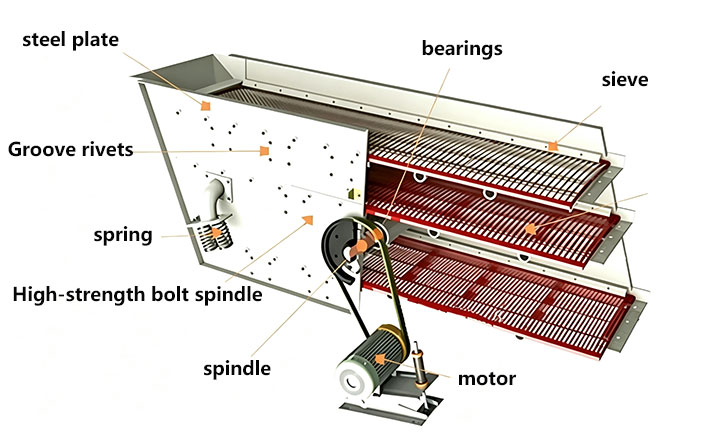

The Circular Vibrating Screen: High Inertia, Inclined Design, and Gravity-Driven Scalping

The circular configuration operates on a single-shaft eccentric block system that generates a continuous circular or elliptical motion trajectory. The entire screen box moves in a circular plane, throwing the material forward and upward. Crucially, these units are installed at a downward incline, typically ranging from 15 to 20 degrees. The separation mechanism relies heavily on a combination of the mechanical throwing action and gravitational pull, causing the raw coal to travel rapidly across the deck.

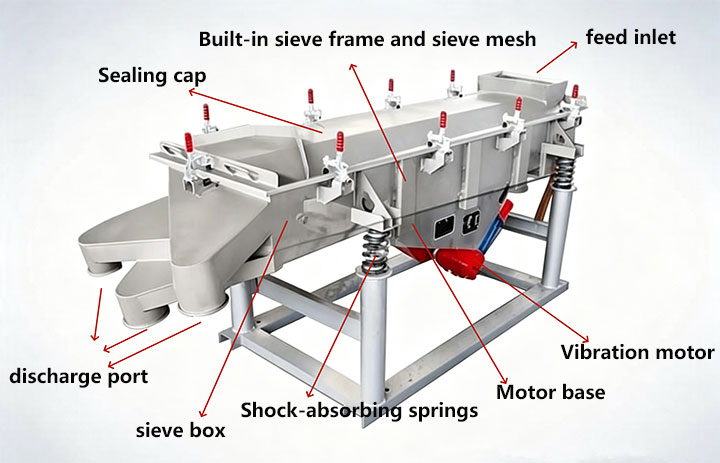

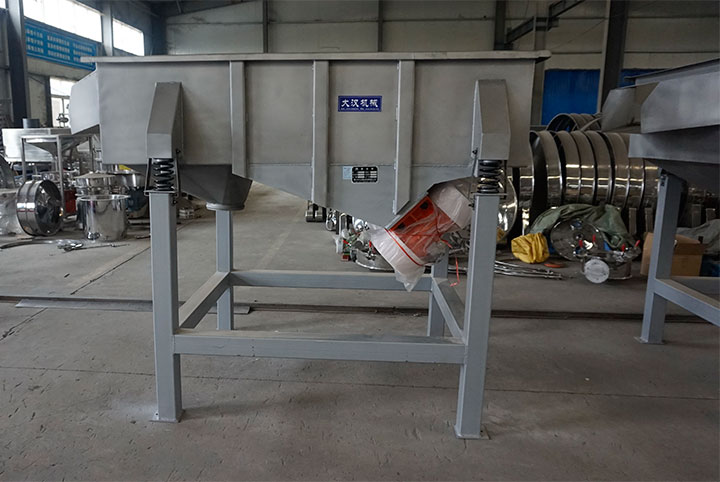

The Linear Vibrating Screen: Dual-Shaft Precision and Horizontal Separation

In contrast, the linear configuration utilizes dual self-synchronizing vibrating motors or a twin-shaft exciter system. These shafts rotate in opposite directions, neutralizing lateral forces and creating a single, directional linear vibration vector (usually at a 45-degree angle to the screen surface).

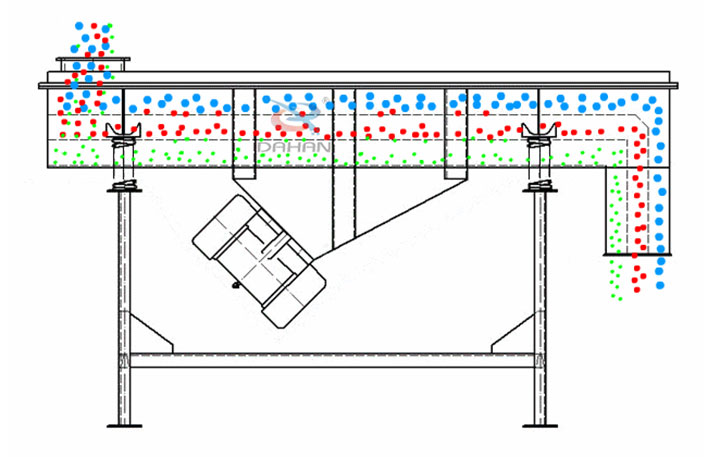

Linear units are installed horizontally or at a very slight upward slope (0 to 5 degrees). The material does not slide due to gravity; instead, it hops forward uniformly along the deck in a highly controlled linear path, making it ideal for precision sizing and dewatering.

Technical Comparison Matrix for Coal Processing & Preparation

The following performance breakdown outlines where each machine delivers peak ROI based on our engineering diagnostics across dozens of coal washing plants:

Where Circular Vibrating Screens Excel in Coal Mining

Primary Scalping and Run-of-Mine (ROM) Handling

Based on our engineers' decades of on-site diagnostic experience, when raw coal is initially extracted from the underground face or open-pit mine, it arrives as a highly inconsistent mix of massive coal blocks, fine particles, and heavy shale or slate (rock partings). This raw material requires robust, high-impact classification before hitting the primary crushers.

The circular vibrating machine is the standard choice for this raw coal scalping phase. Because it sits at a steep angle, gravity accelerates the material flow, allowing the deck to handle massive volumetric surges without flooding. The high-amplitude circular motion effectively breaks up sticky clay-laden material layers, ensuring that large rocks are quickly separated from smaller fractions.

Preventing Blinding in Coarse Fractions

Coarse coal separation often suffers from "near-size blinding," where particles slightly larger than the screen openings become wedged in the mesh. The circular motion provides a continuous variation in the angle of impact as the coal hops along the deck. This dynamic shifting action naturally dislodges trapped particles, keeping screen apertures open and maintaining a continuous, high-volume material feed.

Where Linear Vibrating Screens Dominate the Coal Washing Plant

Once the raw coal passes the initial crushing stage and enters the actual coal washing or preparation plant (CPP), the processing requirements shift from massive throughput to precise material management. This is where the linear configuration becomes indispensable.

Advanced Dewatering and Moisture Reduction

Moisture control is a critical parameter in commercial coal production; excess water increases shipping weights and degrades thermal efficiency. Linear units, often referred to as dewatering screens in this context, are uniquely capable of extracting liquid from fine coal slurry.

Because the screen is mounted horizontally or with a slight upward incline, the coal slurry forms a material bed on the deck. The 45-degree linear vibration forces the solid coal particles to move uphill while water drains through the screen apertures under the influence of high-frequency vibration. The steady material bed acts as a secondary filter media, trapping even finer coal particles while allowing clean water separation.

Desliming and Heavy Media Recovery

In heavy media separation systems—where magnetite is mixed with water to separate coal from impurities based on density—recovering the expensive magnetite media is vital for cost control. Linear screening machines provide the precise, consistent retention time needed to spray and wash the magnetite off clean coal fractions efficiently.

Overcoming the Moist Coal Dilemma: Materials and Media Control

A major operational hurdle in coal classification is dealing with mid-range moisture content (typically 8% to 15% inherent or surface moisture). When coal fines hit this moisture threshold, they become highly cohesive, forming a paste that can quickly seal standard woven wire meshes.

To mitigate this issue, modern operations look beyond mechanical motion alone and focus heavily on the choice of screen media installed inside the machine housing:

• Polyurethane Screen Modules: Replacing traditional steel wire with modular polyurethane panels significantly reduces material adhesion due to natural elasticity, actively shedding sticky coal fines.
• Wedge Wire Profiles: For dewatering applications, V-shaped wedge wire profiles feature widening aperture gaps beneath the surface, eliminating clogging hazards during high-density slurry processing.

Strategic Allocation: The Final Engineering Verdict from Dahan Machinery

In the modern coal mining landscape, engineering excellence lies in the strategic allocation of each machine type to its optimal operational zone:

Select a Circular Vibrating Screen if: Your primary objective is high-capacity raw coal separation, primary scalping before the crushing stage, or handling dry, coarse materials where maximum volumetric throughput is required.

Select a Linear Vibrating Screen if: Your process involves downstream washing, fine coal classification, slurry dewatering, desliming, or media recovery where high fluid extraction rates and exact material retention times are paramount.
