A Gyratory Screen Separator is a high-performance industrial screening machine engineered to deliver high-precision, high-capacity material separation. Unlike standard vibrating sifters, it utilizes a unique multi-dimensional motion trajectory that ensures exceptional classification accuracy for fine powders, granules, and bulk materials while preventing mesh blinding.
The operational efficiency of our gyratory screener lies in its specialized dynamic design, which optimizes material flow across the entire screen surface for maximum throughput.
The machine combines horizontal circular motion, elliptical transition, and upward vertical vibration. This balanced multi-dimensional motion spreads material rapidly across the screen center, stratifies particles effectively, and ensures fine particles pass through the mesh quickly.

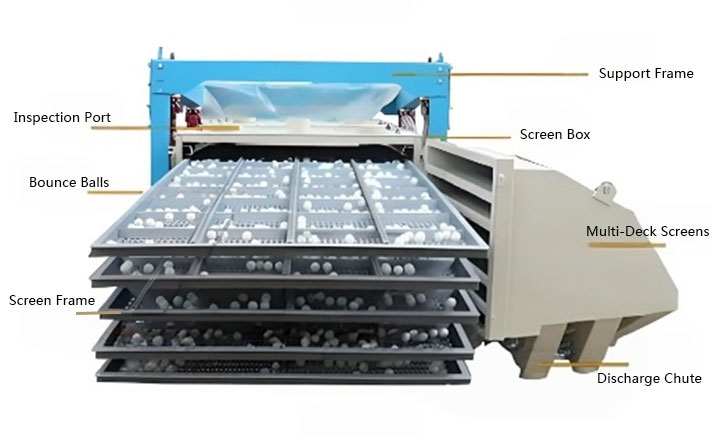

To prevent mesh clogging—a common issue when handling fine or sticky powders—our separators can be equipped with advanced anti-blinding devices such as bouncing balls, rotating brushes, or ultrasonic systems, ensuring continuous, uninterrupted operation.
Observe the efficient operational trajectory and robust structural design of our industrial-grade gyratory vibrating screen.
Our FYB series gyratory vibrating screen is engineered in multiple standard models to accommodate varying plant layouts and capacity requirements. Key specifications overview:
| Model Range | Screen Surface (mm) | Motor Power (kw) | Available Layers |
|---|---|---|---|
| Standard Models (e.g., FYB1021 - FYB1030) | 1000 * 2100 to 1000 * 3000 | 3.0 | 1 ~ 5 Layers |
| Medium Duty (e.g., FYB1236 - FYB1536) | 1200 * 3600 to 1500 * 3600 | 4.0 - 5.5 | 1 ~ 5 Layers |
| Heavy Duty (e.g., FYB1836 - FYB2050) | 1800 * 3600 to 2000 * 5000 | 7.5 - 11.0 | 1 ~ 5 Layers |
Need a tailored size or specific stroke? Contact our engineering team for custom configurations.
Our gyratory vibrating screen is engineered with advanced structural and functional advantages to maximize productivity and lower maintenance costs:
Balanced multi-dimensional motion ensures optimal particle stratification and exceptional separation efficiency.
The gentle trajectory reduces mechanical impact and wear on the screen cloth, significantly lowering replacement frequency.
Fully enclosed structure prevents dust leakage, ensuring a clean and safe industrial working environment.
Optimized motor configuration minimizes power waste and keeps operational noise at a low level.

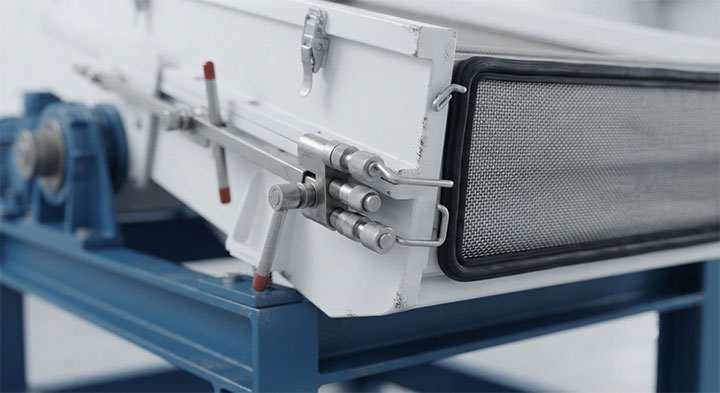

User-friendly tensioning system allows for rapid and hassle-free screen mesh replacement to reduce downtime.
Built for continuous, long-hour industrial operations with robust structural components and stable performance.
Handling fine powders often presents challenges such as agglomeration, poor flowability, and severe mesh clogging. Our gyratory vibrating screen is specifically engineered to overcome these obstacles:

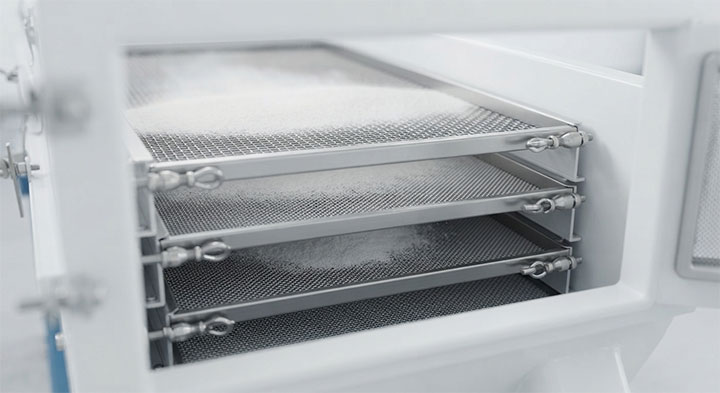

Ultra-Fine Particle Separation: Capable of achieving multi-stage precise grading down to fine mesh sizes without damaging particle integrity.
De-dusting & Impurity Removal: Swiftly strips away unwanted airborne fines or extracts trace contaminants to guarantee exceptional product purity.
Consistent Output Quality: Maintains stable throughput and uniform particle size distribution even during continuous, high-volume production cycles.

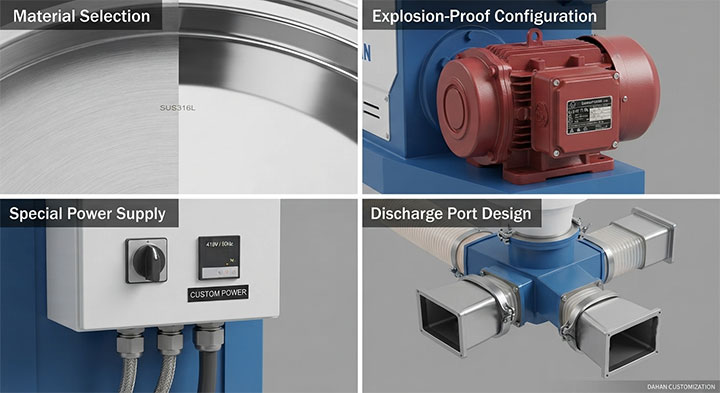

Every industrial production line has unique requirements. To ensure seamless integration into your facility, we offer comprehensive customization services:
To ensure long-term, trouble-free operation of your gyratory vibrating screen, Dahan Machinery provides comprehensive after-sales support and reliable spare parts supply:

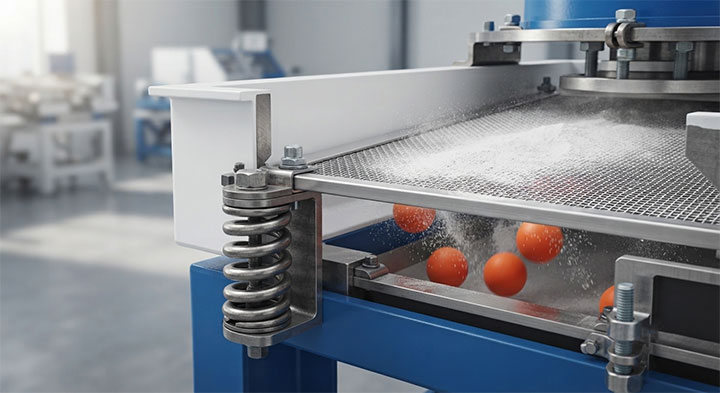

Original Spare Parts: We supply high-durability replacement parts, including precision screen mesh panels, cleaning devices, seals, and vibration-resistant springs.
Quick Replacement Design: Components are engineered for easy disassembly and swift replacement, minimizing equipment downtime in your plant.
Remote Technical Assistance: Our experienced engineering team offers professional guidance for installation, troubleshooting, and routine maintenance via online support.

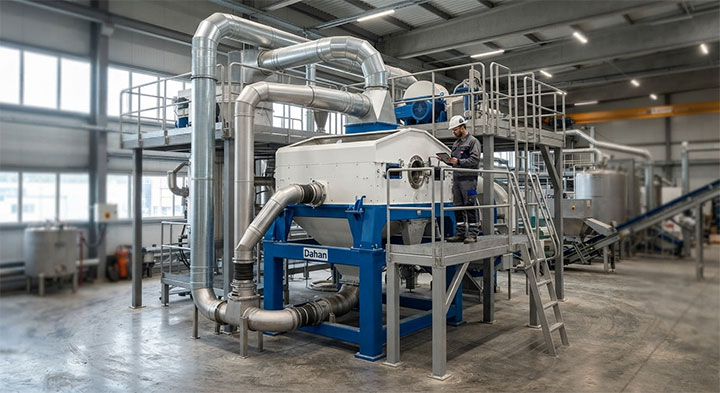

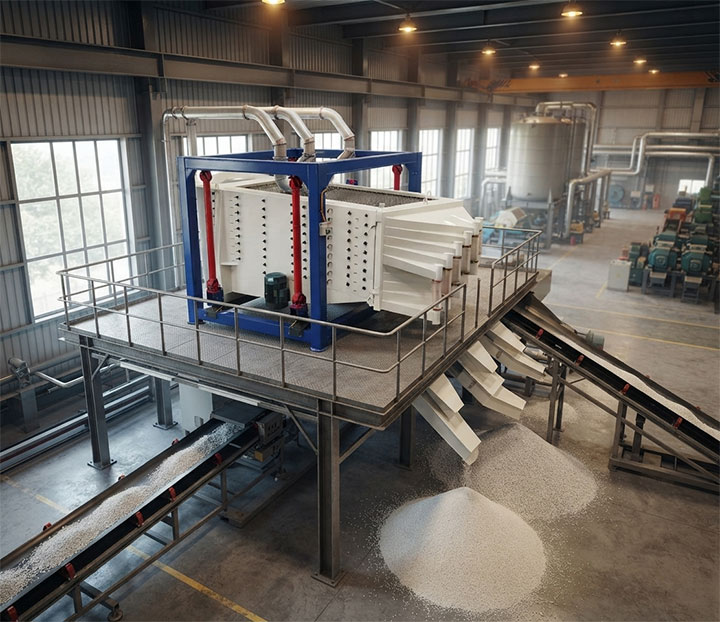

Dahan Machinery's gyratory vibrating screens have been successfully implemented across diverse global industrial sectors. Here is how our equipment delivers value in real-world plant environments:
We welcome you to send your material samples to our testing laboratory for customized screening performance reports and video demonstrations.
A gyratory vibrating screen utilizes a unique multi-dimensional composite motion (horizontal, elliptical, and vertical) designed for high-capacity, high-precision industrial grading and large throughput, whereas standard rotary sifters primarily rely on circular vibration for general-purpose powder screening.
Our separators can be equipped with dynamic anti-blinding systems such as bouncing cleaning balls, rotating brushes, or advanced ultrasonic devices to continuously clear the mesh and prevent clogging.
Yes. We offer comprehensive customization options including variable discharge port directions, food-grade or chemical-resistant stainless steel materials (SUS304/SUS316L), and tailored power supply specifications.
You can send your material samples to our testing laboratory. Our engineers will perform a professional screening test and provide a detailed report and model recommendation tailored to your production capacity.
Looking for an efficient, customized screening solution tailored to your production line? Our engineering team is ready to analyze your material characteristics and throughput requirements.
