With automatic lifting and telescopic functions, it is mainly used for bulk grain, bag grain transportation, loading and unloading operations
Price:$800.00-$5,000.00/Set
Consult now and enjoy a 10% discount
Belt width: 400-1200mm
Length: 8+4M, 10+5M, 12+6M, 13+7M
Belt speed: 1.5-2.8M/S
Lifting height: 2.7-12M
Capacity: 50-400T/H
Power: 8.5KW-18KW (depending on the length)
Application: used in construction sites, mines, factories, warehouses, quarries, stations, ports, etc., for loading and unloading bulk and block materials, such as crushed stone, sand, coal, grain, etc.
Commitment:

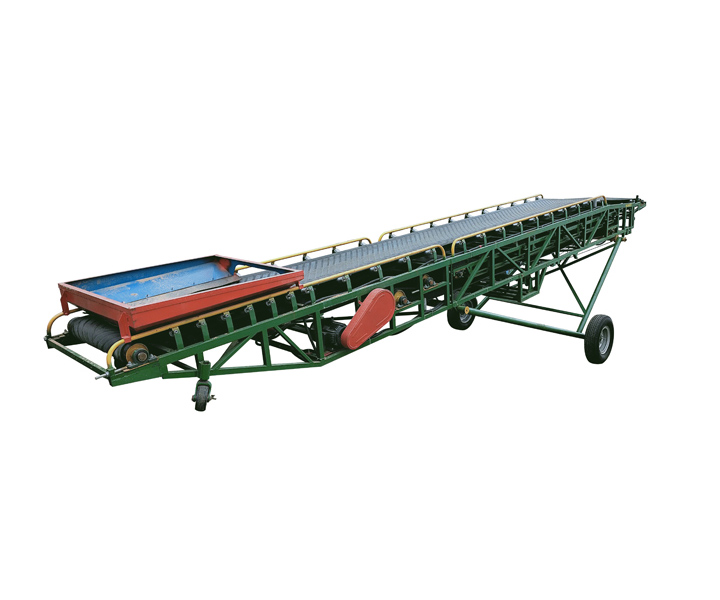

Height adjustable belt conveyor, also known as mobile lifting belt conveyor, is equipped with a lifting device, which can control the height of its end at any time, which is divided into 5 meters and 8 meters. , 10 meters, 12 meters, 15 meters, 18 meters, 20 meters and other specifications, can be moved as a whole through casters as needed, and the required height can be adjusted through the hydraulic top, which is conducive to more convenient transportation of materials.
Height adjustable belt conveyor is mainly used for short-distance transportation, loading and unloading of bulk materials and products that are frequently replaced at unloading stations such as ports, docks, stations, coal yards, warehouses, construction sites, quarries, and farms. Motorized with forward and reverse operation.
| Type | Hydraulic Height Adjustable Belt Conveyor | Double Hydraulic Height Adjustable Belt Conveyor |
| Image |  |
 |
| Features | The height of the lift can be adjusted according to the height of the silo or truck, and is often used for short-distance transportation of bulk materials or finished items. | Different angles can be adjusted according to the usage scene to transport the goods. |
The height of the height adjustable belt conveyor can be adjusted within the specified height, which is easy to operate and has high efficiency. The length of use and the lifting height can be customized according to the actual situation of the site.
The following table shows the adjustable height of different models of loading and unloading adjustable height conveyors:
| Specification | 6 Meters | 8 Meters | 10 Meters | 12 Meters | 15 Meters |
| Height Adjustable | 1.7-2.7 Meters | 2.5-3.7 Meters | 2-4 Meters | 2-4.5 Meters | 3-6 Meters |
Height adjustable
The conveying height is adjustable, the lifting height is 1.7-6 meters, and the efficiency can reach 30 pieces/min. Motor lifting and manual lifting can be used.
Easy to move
There are 4 wheels at the bottom that can be moved at will, one person can easily move the belt conveyor and lock the steering wheel and the conveyor position after moving in place.
Large capacity
It can transport and unload bulk materials in a short distance, and can bear a large amount of capacity, and the single material can bear about 300 catties.
Two-way delivery
The discharge port can be converted into a feed port, and the feed port can also be converted into a discharge port, which is also more practical in loading and unloading.
Low cost
When loading and unloading vehicles, it shortens the manual round-trip material handling distance, shortens loading and unloading time, reduces labor intensity, reduces loading and unloading costs, and improves efficiency.
Flexible layout
It can be conveyed by a single machine, or it can be combined with other equipment to form a horizontal or inclined conveying system to meet the needs of different layouts of the operation line.
Height adjustable belt conveyor is composed of a large frame of the fuselage, a walking wheel, a universal wheel, a lifting device, etc. It operates through the power provided by the driving device, and the tensioning device provides the required friction between the conveyor belt and the roller. Belts and materials provide the necessary support. The material is discharged at the diverting roller of the belt conveyor. The conveyor can be equipped with walking wheels to move in the workplace, and can also be equipped with a lifting device for height-adjustable conveying as required.
Height adjustable belt conveyor is composed of main frame, walking wheel, universal wheel, lifting device and so on. Among them, the large frame of the fuselage is usually made of steel pipes to reduce its own weight and improve the mobility and lightness of the belt conveyor. The lifting device is electric lifting, which reduces the danger and working intensity of manual lifting.
Lifting device: its end height can be controlled at any time.
| Belt width (mm) |
Conveyor Length (m) |
Belt Speed (m/s) |
Angle | Adjustable Height (m) |
Capacity (tons/hour) |
Power (kW) |
| 450 | 3~12 | 0.6～2 | 6 ~ 30 | 1.6～5.5 | 40~100 | 0.5～7.5 |
| 600 | 3~12 | 0.6～2 | 6 ~ 30 | 1.6～5.5 | 40~100 | 0.5～7.5 |
| 800 | 3~12 | 0.6～2 | 6 ~ 30 | 1.6～5.5 | 40~100 | 0.5～7.5 |
| 1000 | 3~12 | 0.6～2 | 6 ~ 30 | 1.6～5.5 | 40~100 | 0.5～7.5 |
Selection and ordering need to specify:
Basic technical parameters such as belt speed, bandwidth, conveying distance, conveying volume, inclination angle, material characteristics, working environment, stacking angle, etc. In addition, parallel conveyors are used for conveying box-like items such as fertilizers and parcels to convey grain, coal, sand and gravel. A trough belt conveyor should be used for bulk materials.
Different from ordinary belt conveyors, the height adjustable belt conveyor has a lightweight mobile conveying system, and the slope can be adjusted by adjusting the lifting frame to achieve the optimal height of the unloading point, which is very suitable for unloading grain in bags or bulk, suitable for coal , metallurgy, mining, chemical industry, building materials, docks, warehouses, construction sites, etc. to transport bulk materials or box-like items, mobile belt conveyors are especially suitable for use in fertilizer plants, cement plants and other environments that require manual loading, saving Lots of manpower.
Conveyors with different bandwidths can be produced on site according to customer requirements. Movable, fixed, and the lifting methods include motor lifting and artificial lifting. Customers can order different styles of conveyors according to their own conditions.
Dahan height adjustable belt conveyor manufacturer has 15 years of production experience. It is mainly used in food, medicine, chemical industry, building materials, metallurgy, coal and many other industries. It is used for short-distance transportation and loading and unloading of bulk materials and finished materials. The level can be adopted according to process requirements. Or inclined arrangement to meet the needs of more users.
All products are assembled and delivered by the manufacturer to ensure that the user can put into production after receiving the goods. The manufacturer promises that the machine can be returned and exchanged for free if there are performance and quality problems within 7 days of sale. The direct-selling operation mode can save 30%~40% % cost, the manufacturer provides a 30-minute quick response, and can customize the plan according to customer requirements, the equipment is guaranteed for 1 year, and the maintenance is free during the warranty period.
