Mobile Belt Conveyor for Grain

Overview of Mobile Grain Belt Conveyor Systems

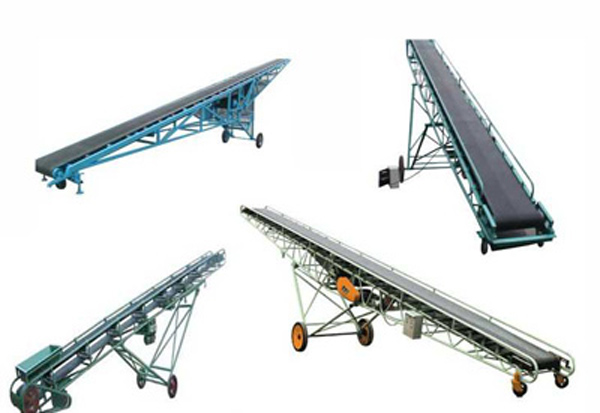

Our Mobile Grain Belt Conveyor provides a modular solution for transporting bulk grain and agricultural commodities. The system integrates a robust conveyor body with a high-efficiency drive and a mobile chassis for rapid site deployment. The following overview details the technical configuration and performance capabilities of the unit

strong>Mobile Belt Conveyor for Grain is a core conveying equipment in grain harvesting, storage, transshipment, and loading/unloading. Equipped with omnidirectional wheels, it allows for flexible relocation and quick positioning. Its height is adjustable, enabling adjustments to the conveyor angle as needed, ensuring stable feeding, stacking, and loading onto trucks. This significantly reduces manual handling. The belt material is made of food-grade PVC. Customization is available to meet specific customer requirements.

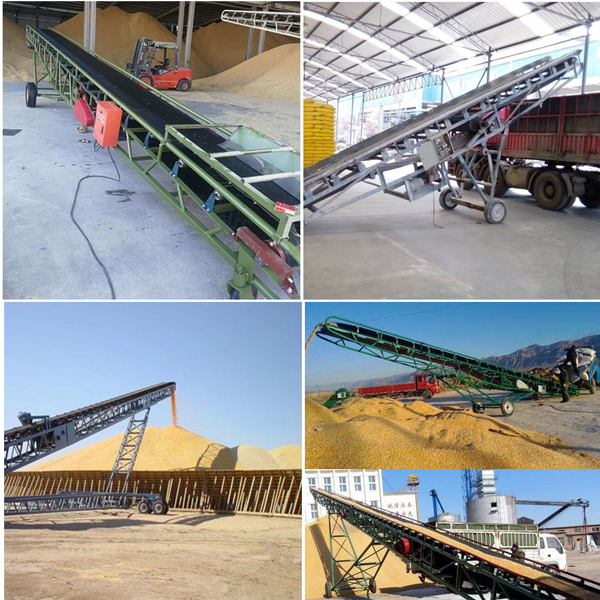

The mobile belt conveyor was used for loading wheat into trucks at a capacity of 20 tons per hour. The conveyor length was 12 meters, belt width was 500 mm, and the maximum lifting height reached 3.5 meters.

Operational Principles and Mechanical Design

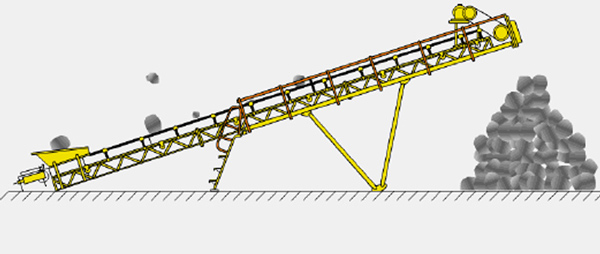

The conveyor utilizes a high-torque drive to power a continuous belt mechanism. Bulk material is fed into the intake hopper and transported uniformly along the frame. We utilize industrial-grade, abrasion-resistant belts engineered to withstand heavy loads and friction. This ensures material stability and high-throughput efficiency throughout the entire conveying cycle.

Engineering Strengths for Material Handling Efficiency

The Mobile Belt Conveyor for Grain is highly mobile and easy to operate. Its built-in wheels allow for easy relocation, and its height is adjustable to adapt to various working conditions such as loading, storage, and warehousing. It provides stable conveying without damaging the grain, boasts high conveying efficiency, significantly saves manpower, and effectively improves grain transshipment efficiency.

Rapid Mobility: Equipped with an independent, heavy-duty chassis, the unit ensures swift relocation and stable positioning across diverse work sites, meeting dynamic operational requirements.

Operational Flexibility: The modular design allows for rapid on-site installation and reconfiguration, providing the agility to adapt to shifting material handling priorities.

High Throughput: Optimized drive mechanics support high-volume material transit, significantly reducing cycle times and increasing overall logistical efficiency.

System Integration: The control interface supports seamless integration with existing automated systems, streamlining material flow while minimizing manual labor and operational risk.

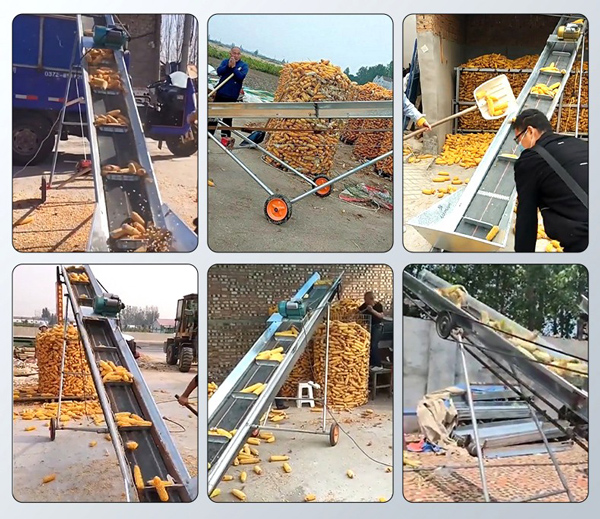

The mobile belt conveyor is suitable for conveying wheat, corn, rice, soybean, barley, sorghum, sunflower seeds, and feed pellets in grain storage and transportation systems.

Industrial Applications and Use Cases

Engineered for versatility, our mobile belt conveyors provide high-performance solutions for grain storage, transshipment, and logistics. The system optimizes the loading, unloading, and in-warehouse circulation of wheat, corn, rice, and similar commodities, effectively reducing manual labor and accelerating operational turnaround.

Farm Harvesting: Streamlines crop transfer from fields to storage, enhancing site-wide harvesting efficiency and logistics.

Grain Processing: Ensures consistent, automated material feed into processing lines, including cleaning and sorting equipment, to maintain steady production rates.

Warehouse Logistics: Optimizes the transfer of stored grain to loading equipment or transport vehicles, facilitating rapid turnaround in distribution.

Ports and Terminals: Supports high-capacity grain handling between vessels and storage, maximizing loading/unloading speed in demanding logistics environments.

Real-World Performance in Diverse Grain Operations

Our systems have been deployed globally to optimize grain handling workflows. Below is a case study highlighting how our equipment solves common logistics bottlenecks:

Client Challenge: XYZ Agricultural Products faced critical bottlenecks in transporting high-volume crops from fields to processing centers during peak harvest.

Engineered Solution: We provided a 10m x 800mm mobile belt conveyor featuring a hydraulic height-adjustment system, allowing for flexible loading across various vehicle heights.

Operational Impact: This deployment enabled rapid site-to-site relocation, resulting in a significant reduction in manual labor and an accelerated loading turnaround.

Food-Grade Conveyor Belt Materials & Specifications

The selection of belting material is critical to both food safety compliance and operational longevity. We provide a range of industry-standard, food-grade belt options tailored to specific grain properties and environmental requirements, as summarized below:

Frequently Asked Questions (Project Planning)

F: Need guidance on equipment selection or project deployment?

A: Here are the most common considerations from our clients during the planning phase:

F: How do I select the right conveyor length and belt width for my site?

A: The selection depends on your daily throughput (tons/hour) and vehicle height requirements. Our engineering team provides a technical consultation to match the throughput needs of your specific grain (wheat, corn, or soy) with the optimal conveyor dimensions.

F: How do you handle shipping and international on-site assembly?

A: We offer modular, easy-to-assemble designs that minimize shipping costs and on-site labor. For large-scale projects, we provide comprehensive installation manuals or remote technical guidance to ensure rapid commissioning.

F: What is the maintenance cycle for grain-handling belt systems?

A: Our conveyors are built for low-maintenance operation. We recommend quarterly inspections of the belt tensioning and drive system. We maintain a full inventory of replacement parts to ensure zero downtime during critical harvest periods.
