Stainless steel vibrating screen for making soy milk

Stainless steel vibrating screen for making soy milk is a screening device used in the soy milk production process. Its core function is to filter out impurities from soy milk. Made of food-grade stainless steel, it meets food production hygiene standards and effectively removes residual soy pulp, soy skin, and other solid particles from soy milk while retaining its nutritional components. It prevents impurities from affecting subsequent processing and the final product's taste. The screen surface can be made from 400mm to 2m in diameter and is available in 304 and 316 stainless steel. It supports 24-hour continuous operation and is compatible with industrial production lines.

What is the function of a stainless steel vibrating screen for making soy milk?

The core function of a stainless steel vibrating screen for making soy milk is to remove various impurities from the soy milk, ensuring its purity and taste, and laying the foundation for subsequent processing. It effectively separates solid residues such as soy pulp and soy skins, preventing these impurities from causing a rough texture and reducing the risk of scorching during the subsequent boiling process. Furthermore, this equipment helps retain nutrients such as plant protein, calcium, and phospholipids in the soy milk, without damaging its nutritional structure, resulting in a smooth and uniform texture in the finished product.

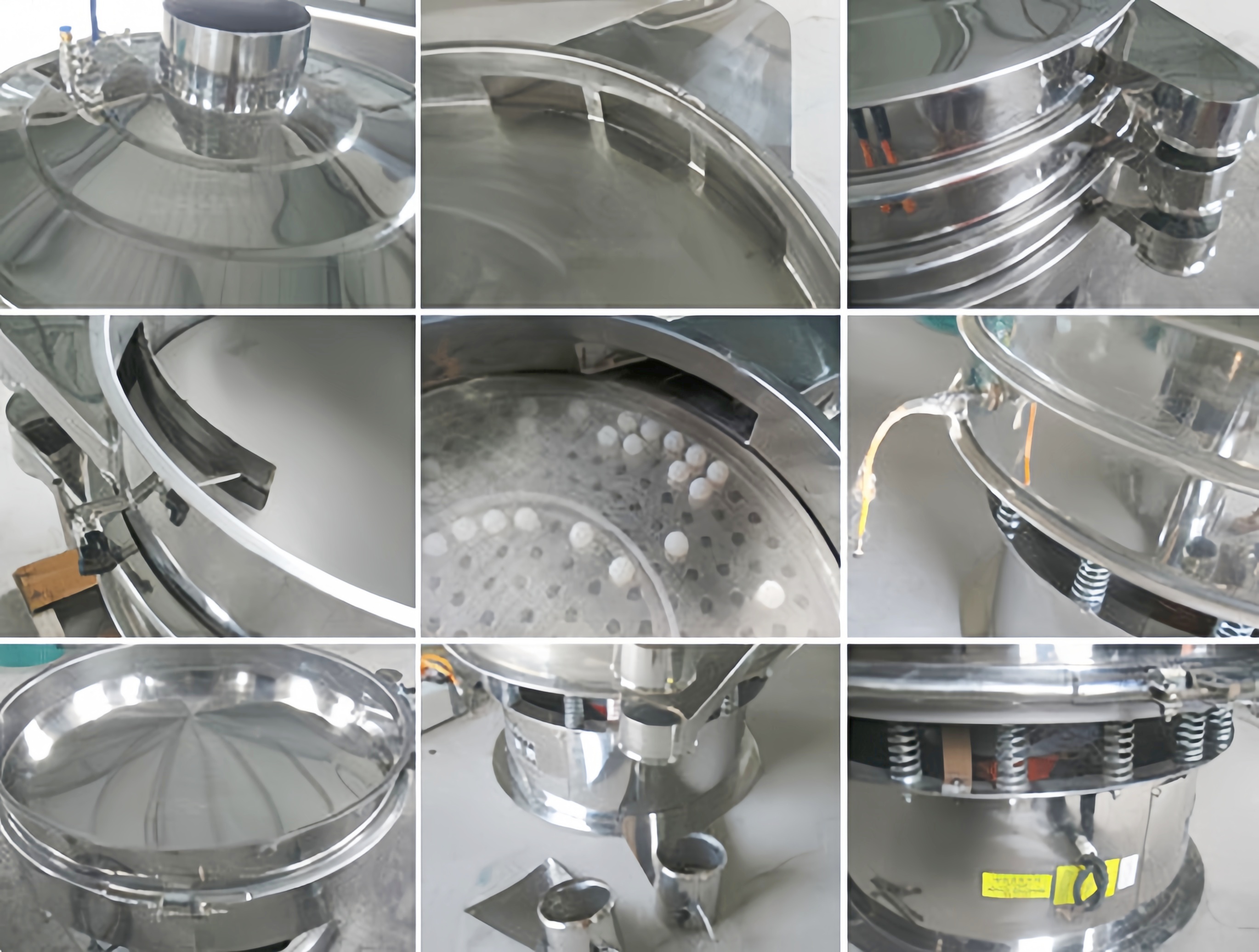

Structure of a Stainless Steel Vibrating Screen for Making Soy Milk

The stainless steel vibrating screen for making soy milk has a simple and rational structure. All components work together to ensure effective screening, and the entire screen is made primarily of food-grade stainless steel. The system mainly consists of a screen box, screen mesh, vibrating motor, damping springs, support frame, and inlet and outlet. The screen box and screen mesh, which come into direct contact with the soy milk, are made of stainless steel, polished to remove burrs and dead corners, meeting food contact safety standards. The vibrating motor, as the core power component, has eccentric weights at both ends to provide power for screening. Damping springs are installed between the support frame and the screen box to reduce vibration transmission during operation. The screen mesh is detachable for easy replacement and cleaning. The overall structure is compact and adaptable to various production scenarios.

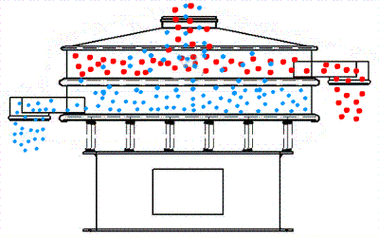

How does the Stainless Steel Vibrating Screen for Making Soy Milk work?

The Stainless Steel Vibrating Screen for Making Soy Milk uses a vertical vibrating motor as the excitation source. The eccentric weights at both ends of the motor convert the motor's rotational motion into a three-dimensional composite motion (horizontal, vertical, and inclined), which is then transmitted to the screen surface. In practical use, the angle between the upper and lower weights is usually adjusted to 90 degrees to create a suitable vibration trajectory on the screen surface. When soy milk is uniformly injected into the screen through the inlet, under the action of three-dimensional vibration, soy milk that fits the screen mesh size will pass through smoothly and be discharged from the outlet below. Soy pulp, soy skins, and other impurities are retained on the screen surface and gradually move towards the edge of the screen with vibration, automatically being discharged from the discharge outlet.

Stainless steel vibrating screen for making soy milk technical parameters

What are the advantages of a stainless steel vibrating screen for making soy milk?

The advantages of a stainless steel vibrating screen for making soy milk lie in its practicality, safety, and adaptability, perfectly meeting the core needs of soy product processing. All parts in contact with soy milk are made of food-grade stainless steel, which is rust-proof and corrosion-resistant. It can resist the acidic corrosion of soy milk, is easy to clean and disinfect, prevents bacterial growth, and ensures food production safety. The equipment operates with stable vibration, and the vibration-damping spring design reduces the impact on the surrounding environment. The sealed structure prevents soy milk leakage and splashing. The screen is easy to change, taking only 3-5 minutes, and supports the use of multiple screens to adapt to different processing needs. Furthermore, the equipment is of moderate size and can be flexibly moved according to the production scenario, meeting the needs of intermittent production in small workshops as well as the continuous production lines of large enterprises.

What mesh size screen should be used for the Stainless Steel Vibrating Screen for making soy milk?

The mesh size of the Stainless Steel Vibrating Screen for making soy milk is mainly determined by the intended use of the soy milk and the desired texture. Generally, an 80-120 mesh screen is used. An 80-mesh sieve has a moderate aperture, retaining a small amount of fine soy pulp after filtration, making it suitable for processing soy products such as tofu and dried tofu, enhancing the texture of the finished product. A 100-mesh sieve produces soy milk with a uniform texture and no obvious residue, meeting the production needs of most soy milk beverages. A 120-mesh sieve provides even finer filtration, resulting in more fluid soy milk, suitable for ready-to-drink soy milk and soy milk products where a high-quality taste is required. The choice of sieve should be adjusted flexibly based on production scale and finished product requirements.

What is the price of a Stainless Steel Vibrating Screen for Making Soy Milk?

The overall price range for DaHan Vibration Machinery's Stainless Steel Vibrating Screen for Making Soy Milk is $800.00-$4,500.00. A detailed quote requires calculation based on product configuration, number of layers, and power. The price varies significantly depending on the equipment model; larger models offer higher processing capacities and are therefore more expensive. More screen layers allow for multi-level screening, also increasing the price. Different vibrating motor power levels suit different production scales; higher power motors also increase the price. Furthermore, material grade and whether custom design is required will affect the final quote. We will recommend the appropriate model and provide a quote based on your specific production needs.

The Stainless Steel Vibrating Screen for Soy Milk is a key auxiliary device in soy product processing. With its reasonable structure, stable operation, and safe materials, it effectively removes impurities from soy milk, ensuring its quality and taste.
