How to Prevent Test Sieve Clogging: Practical Solutions for Accurate Particle Analysis

Accurate particle size analysis depends heavily on the condition of your test sieves. However, mesh clogging remains one of the most frequent operational bottlenecks in quality control laboratories. When particles wedge into or adhere to the wire cloth openings, screening efficiency drops sharply, leading to distorted test data, prolonged test cycles, and unnecessary re-testing costs.

Whether you are handling fine chemicals, aggregates, or powders, understanding how to prevent and manage sieve blinding is essential for reliable results. Below are practical, field-proven strategies to keep your test sieves clean and ensure precise particle separation.

Understanding the Root Causes of Test Sieve Clogging

Pinpointing why mesh blockages occur is the first step toward mitigating them. In most laboratory environments, poor separation performance stems from specific physical interactions between the sample material and the sieve wire cloth.

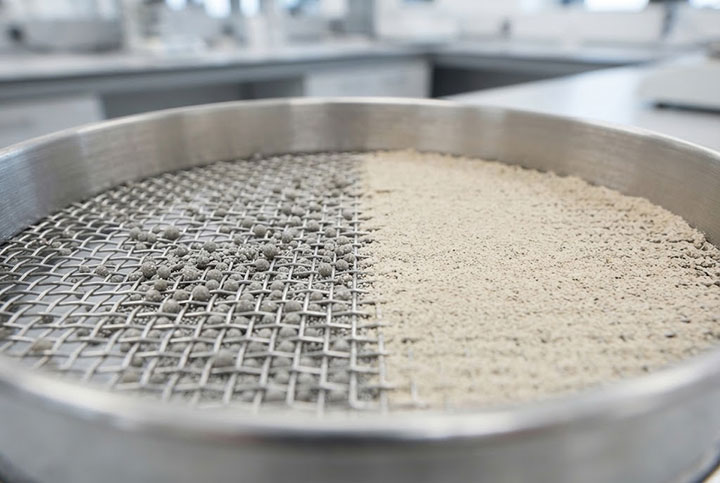

What is the Difference Between Clogging, Blinding, and Pegging?

Although these terms are often used interchangeably, they describe distinct physical phenomena during the screening process:

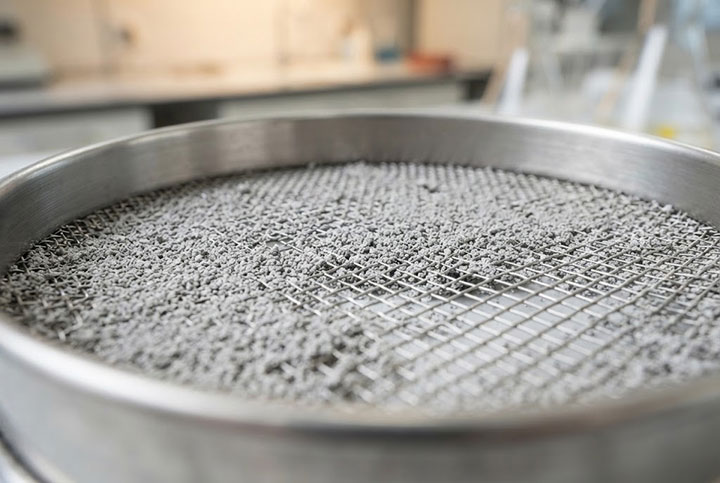

• Clogging: Occurs when near-size particles become wedged directly into the mesh openings, physically blocking individual apertures.
• Blinding: Caused by moisture, static, or cohesive fine particles adhering to the wire intersections, forming a film or crust over the mesh surface.

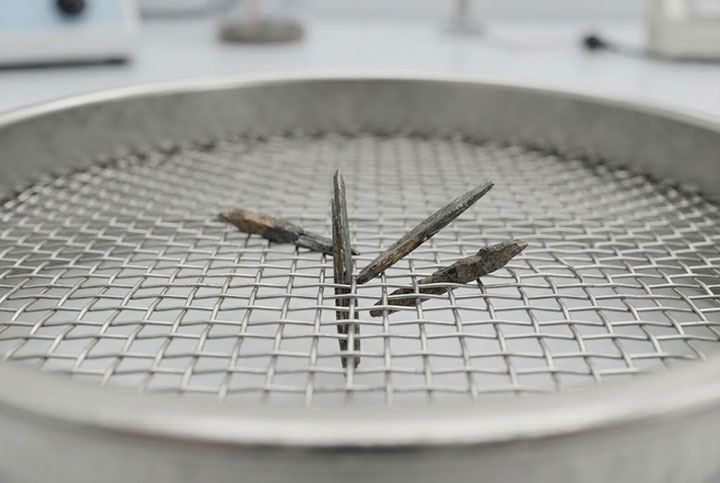

• Pegging: Refers to elongated or flaky particles that slide halfway into a square or rectangular aperture and get stuck vertically.

Common Culprits: Moisture, Particle Shape, and Overloading

Three primary variables usually trigger these blockages during testing:

• Excess Moisture: Even trace amounts of humidity cause fine powders to clump, instantly creating surface blinding on fine mesh sieves.
• Particle Morphology: Flat, needle-like, or irregular particles frequently cause pegging compared to smooth, spherical granules.
• Sample Overloading: Dumping too much material onto the sieve stack prevents particles from finding the apertures, causing immediate blinding on the top layers.

Material-Specific Clogging Challenges and Solutions

Different materials present unique physical properties that directly influence how they interact with test sieve apertures. Tailoring your approach based on the specific substance being tested is key to maintaining data integrity.

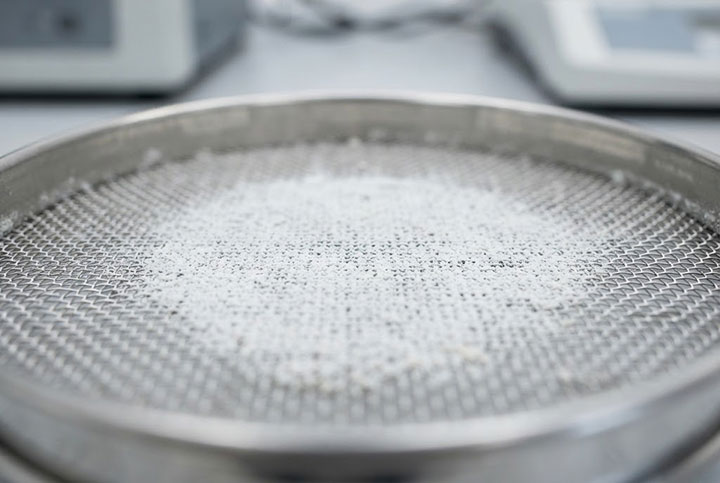

Tackling Sticky and Cohesive Powders in Chemicals and Pharmaceuticals

Fine chemical and pharmaceutical powders often cohere due to natural intermolecular forces or residual moisture. To mitigate surface blinding:

• Apply brief anti-static treatments or blend small amounts of approved flow agents if testing protocols allow.
• Use intermittent tapping or manual intermediate brushing carefully during longer screening intervals.

Handling Abrasive and Hard Minerals in Construction Aggregates

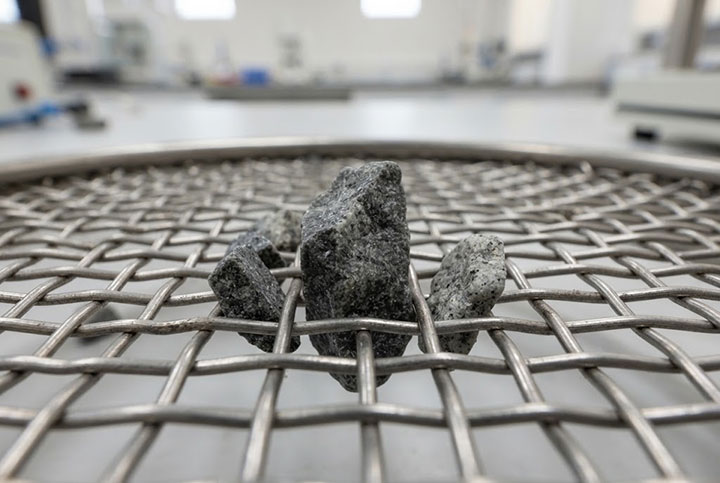

Hard, angular mineral aggregates exert high physical stress on wire mesh, leading to rapid pegging and wire wear. To address this:

• Avoid prolonged mechanical shaking that forces irregular stones deeper into the apertures.
• Use precision-woven stainless steel sieves with superior tensile strength to resist permanent mesh distortion.

Dealing with Electrostatic Charges in Fine Powders

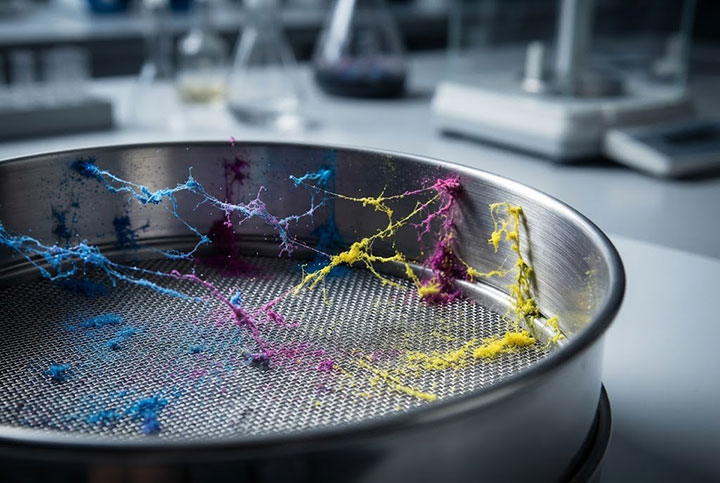

Fine polymer powders, resins, and dry chemicals easily accumulate static charges during dry sieving, causing particles to cling to the frame and wire cloth. To resolve this:

• Ensure proper grounding of the sieve shaker and accessories to dissipate static buildup.
• Introduce environmental humidity control in the testing room if static interference persists.

Practical Pre-Treatment & Operational Solutions to Stop Clogging

Proactive operational adjustments before and during the screening process can drastically reduce blockages and protect your test sieves from premature wear.

Optimize Sample Size and Avoid Overloading

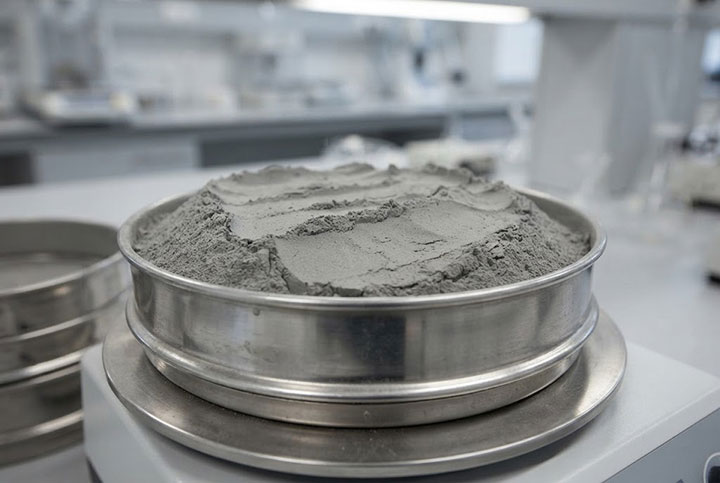

Overloading is the most common self-inflicted cause of sieve blinding. When too much material is placed on a single screen:

• Particles form a dense layer, preventing finer fractions from contacting the wire openings.
• Reduce total sample weight or split the sample into smaller, manageable batches for multi-stage screening.

Pre-drying Samples to Prevent Moisture-Induced Blinding

Moisture turns loose powders into sticky agglomerates that instantly coat fine mesh.

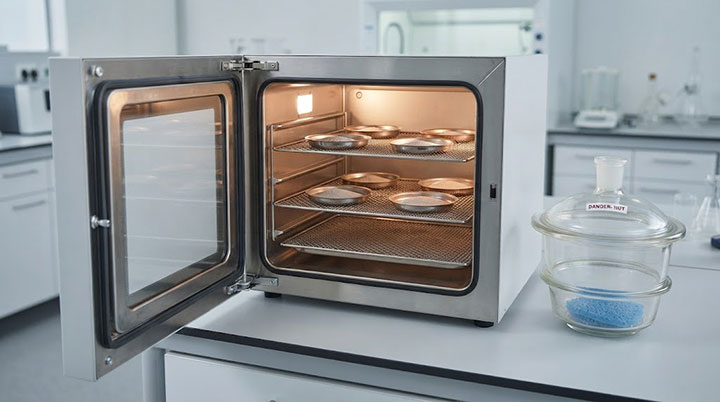

• Always oven-dry hygroscopic or damp samples to a constant weight prior to particle size analysis.
• Allow samples to cool to room temperature in a desiccator before testing to prevent condensation inside the sieve stack.

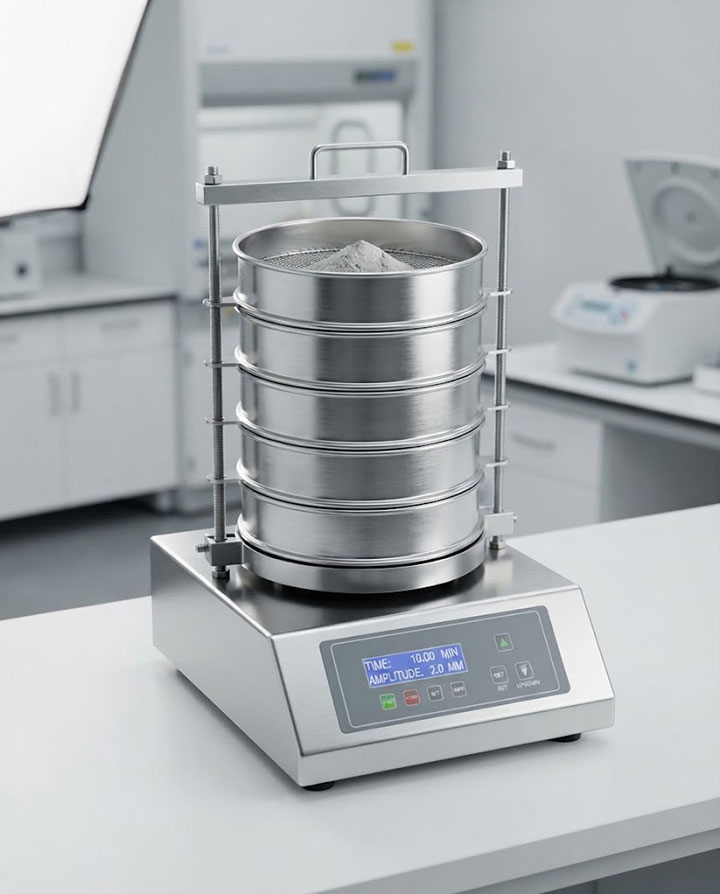

Adjusting Sieve Shaker Parameters and Vibration Intensity

Incorrect machine settings can worsen pegging and damage delicate wire cloth.

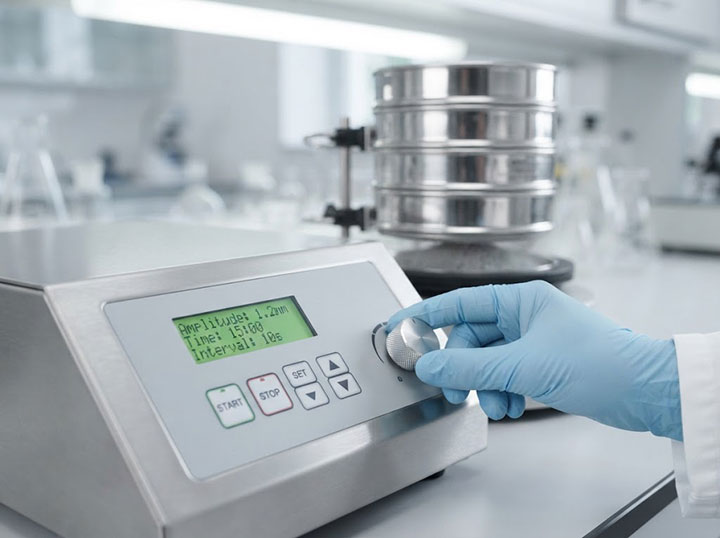

• Optimize the amplitude and intermittent pause intervals on your electromagnetic sieve shaker.
• Ensure the throwing motion is balanced so particles continuously re-orient themselves across the mesh surface rather than hammering into fixed spots.

Advanced Mechanical & De-blinding Techniques

When standard dry sieving and basic parameter adjustments are insufficient for stubborn fine powders, integrating specialized mechanical or secondary de-blinding accessories becomes necessary.

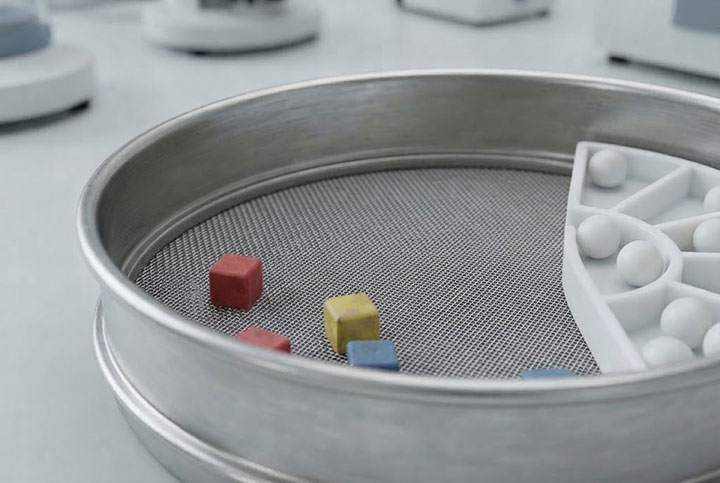

Utilizing Rubber or Urethane Cubes and Ball Trays

For mechanical sieve shakers handling difficult granular materials, auxiliary clearing tools are widely deployed:

• Place rubber cubes, brushes, or ball trays beneath the wire mesh to provide continuous mechanical impact against the underside of the screen during operation.
• This gentle, constant bouncing action dislodges near-size particles trapped in the apertures without damaging the delicate wire diameter.

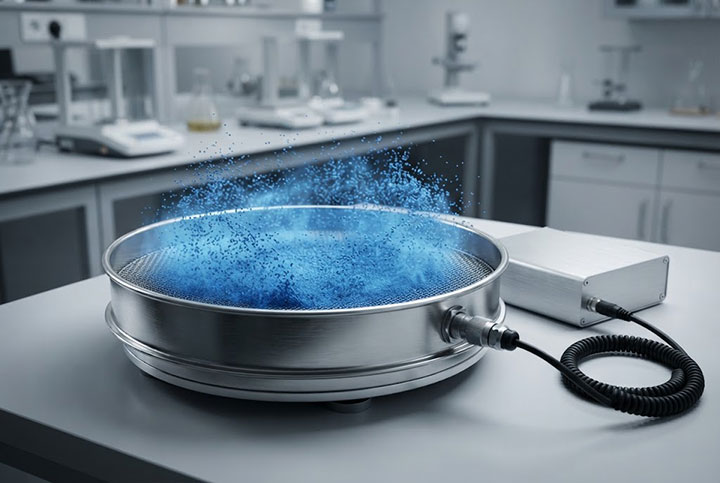

Integrating Ultrasonic De-blinding Systems for Fine Mesh

When working with ultra-fine powders below 100 mesh where traditional tapping fails:

• High-frequency low-amplitude ultrasonic energy can be applied directly to the sieve frame to fluidize the powder layer.
• If your laboratory or processing line frequently handles difficult micro-powders that cause persistent blinding, upgrading to specialized ultrasonic or high-frequency laboratory screening equipment provides a reliable, long-term solution for clean, accurate separations.

The Hidden Cost of Sieve Clogging: Why Accuracy Matters

Dismissing a clogged test sieve as a minor nuisance is a costly mistake. In quality control, a blocked mesh directly compromises data integrity and operational efficiency.

The Real Danger: Skewed PSD Curves and Rejected Batches

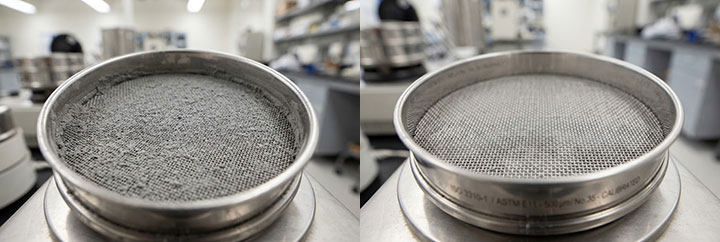

When apertures are blinded, fine particles cannot drop through to the lower collection pans. This distorts your particle size distribution (PSD) curve, making the sample look coarser than it actually is. As a result, good production batches get falsely rejected, or worse, flawed materials slip through and cause severe downstream processing failures.

Protecting Compliance with ISO 3310 and ASTM E11

Global standards require strict aperture tolerances and open-area percentages. Clogged mesh changes the effective screening area, rendering your test results invalid and non-compliant. Keeping your sieves pristine is the only way to ensure your lab data holds up under strict audits.

Proper Maintenance, Cleaning, and Inspection Protocols

Post-test cleaning is just as critical as pre-treatment. Improper cleaning habits can permanently stretch or fracture fine wire mesh, ruining expensive test sieves.

Correct Brushing Techniques: Do’s and Don’ts

Manual brushing is standard practice, but incorrect execution causes immediate damage:

• Do: Use a soft-bristled nylon or horsehair brush. Sweep gently across the mesh surface at a diagonal angle, following the weave pattern rather than aggressively stabbing or scrubbing.
• Don’t: Never use metallic wire brushes, screwdrivers, or sharp instruments to force trapped particles out, as this permanently distorts aperture sizes.

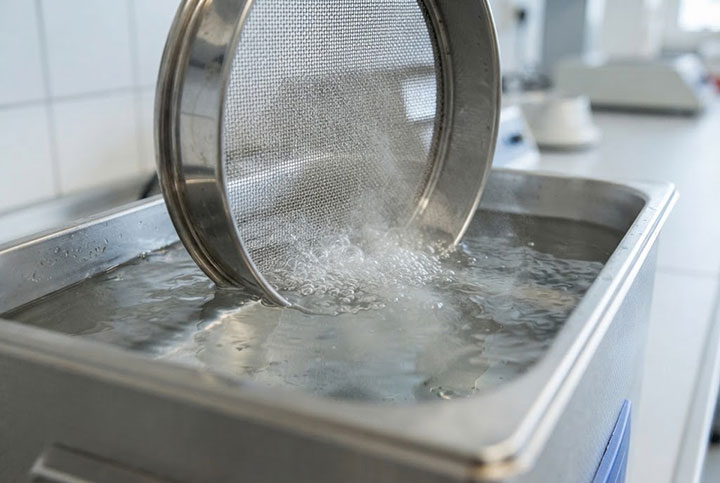

The Role of Ultrasonic Cleaners in Deep Maintenance

For stubborn residues embedded deep within fine mesh sieves:

• Immerge the sieve into a dedicated ultrasonic cleaning bath filled with a mild, non-corrosive cleaning solution.
• High-frequency cavitation safely lifts micro-particles off the wire intersections without applying mechanical friction. Always dry the sieve thoroughly post-cleaning to prevent oxidation.

Regular Mesh Inspection for Wear and Tension

Test sieves are precision measuring tools that degrade over time:

• Periodically inspect the wire cloth under a magnifying glass or optical comparator to check for sagging, localized stretching, or broken wires.
• Keep an active inventory log to track usage cycles, and retire or recertify sieves that no longer meet calibration tolerances.

Frequently Asked Questions (FAQ)

Can I use compressed air to clean a clogged test sieve?

Yes, but with caution. Using compressed air from the underside of the sieve can blow out trapped near-size particles effectively. However, you must maintain a safe distance and low pressure to avoid deforming or stretching delicate fine wire mesh.

What is the difference between dry sieving and wet sieving for blinding prevention?

Dry sieving is faster but highly prone to blinding when handling electrostatic or moisture-sensitive fine powders. Wet sieving uses a liquid medium (usually water with a wetting agent) to wash fine particles through the mesh, effectively controlling static and surface blinding for difficult samples.

How often should laboratory test sieves be inspected or replaced?

Frequency depends on usage and material abrasiveness. For high-volume labs, inspect sieves visually every month and check calibration tolerances or wire tension periodically. If you notice broken wires, loose mesh, or distorted apertures, replace the sieve immediately to avoid non-compliant test results.

Actionable Maintenance Checklist

Preventing test sieve clogging is a continuous process that combines proper sample preparation, smart operational settings, and careful post-test maintenance. By implementing these practices, laboratories can eliminate data distortion and extend equipment lifespans.

Quick Maintenance Checklist for Lab Technicians

• Pre-dry moisture-sensitive samples before starting particle size analysis.
• Avoid sample overloading to prevent immediate mesh blinding.
• Use soft-bristled brushes and ultrasonic baths instead of sharp tools for cleaning.
• Inspect mesh tension and aperture integrity on a regular schedule.
