An industrial scalping screen is a heavy-duty mechanical screening machine positioned at the very beginning of a processing plant (primary stage). Its main job is "scalping"—rapidly separating oversized boulders, heavy debris, and raw soil from feed material before it enters sensitive downstream machinery like primary crushers or conveyor belts.Unlike fine grading screens or rotary vibratory sifters designed for high-accuracy sizing, scalping screens are built strictly for high-impact, high-volume coarse separation under brutal operating conditions.
Selecting the correct type of industrial scalper depends heavily on your feed material characteristics and operational mobility. Review the classification matrix below to find your ideal match:
| Equipment Type | Best Application | Core Design Features |
|---|---|---|

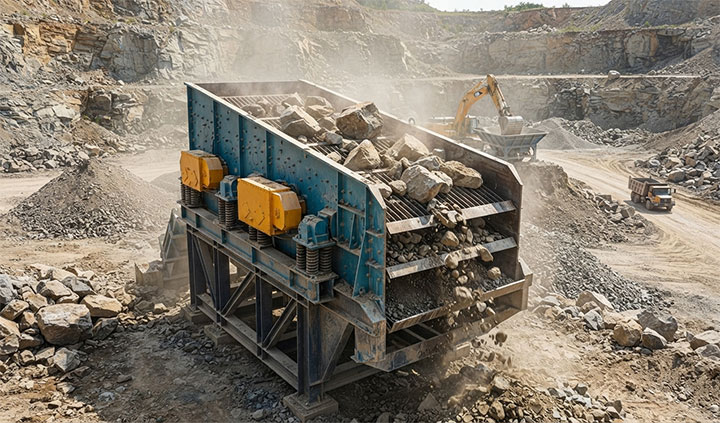

 Heavy-Duty Vibrating Scalper Screens |
Quarries, hard rock mining, and aggregate production | Equipped with robust grizzly bars or heavy punch plates to withstand extreme impact and high-volume drops. |
 Grizzly Scalping Feeders |
Direct feeding ahead of primary jaw crushers | Combines controlled material feeding and coarse pre-screening into a single unit, bypassing small particles efficiently. |
| Wet, sticky soil, compost, and construction waste | Rotating cylindrical drum design prevents blinding and handles high-moisture, complex separation smoothly. | |
 Mobile Tracked Scalping Stations |

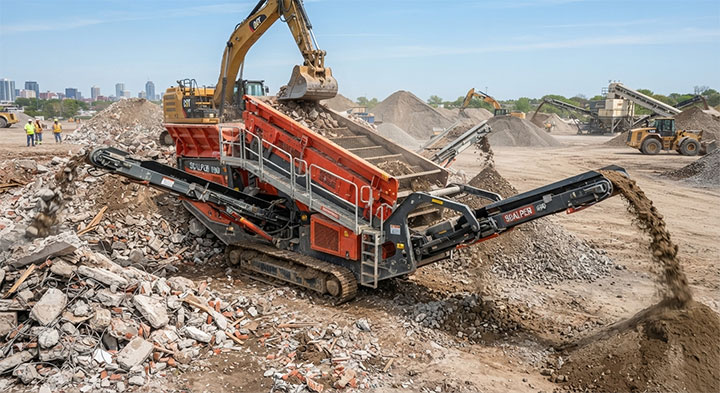

On-site recycling, demolition waste, and mobile quarries | Fully integrated on tracks with hydraulic folding conveyors for rapid deployment and multi-way material splitting. |
See Dahan Heavy-Duty Vibrating Scalpers in action at our manufacturing facility. Our durable design ensures high-impact resistance and reliable primary screening performance.

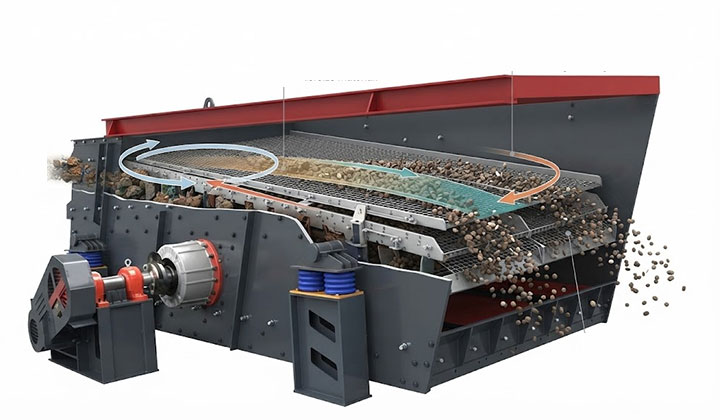

Understanding the operational mechanics of an industrial scalping screen explains why it thrives where standard screens fail. The separation process relies on three critical engineering mechanisms:
Driven by heavy-duty eccentric shaft vibrators or robust vibration motors, the screen box delivers strong centrifugal force and long strokes. This prevents heavy, raw feed from dead-heading or packing tightly on the deck.

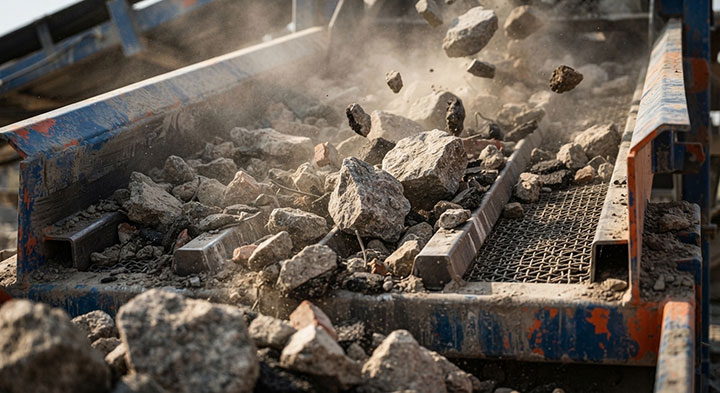

As raw material cascades down the steeply inclined deck, the violent kinetic energy forces large, heavy boulders to float to the top layer, while fine particles and small fractions migrate downward and pass rapidly through the mesh or grizzly bars.
The feed end is reinforced with shock-absorbing rubber pads or thick punch plates to absorb the brunt of raw rock drops. Meanwhile, continuous vibration and optional self-cleaning elements eliminate material blinding and clogging.
Choosing the correct industrial scalping screen prevents bottlenecks and unnecessary equipment wear. Follow this quick 4-step selection framework to evaluate your requirements:
Determine if your material is dry rock, abrasive stone, or wet, sticky clay. Sticky materials generally require rotary trommels or specialized anti-blinding decks, while hard rock demands heavy-duty grizzly bars.
Match the throughput requirements (Tons Per Hour) of your primary crusher. The scalper must handle peak load surges without starving or overloading downstream equipment.
Establish the exact separation size (e.g., separating materials below 80mm). Choose between single-deck or double-deck configurations depending on whether you need a 2-way or 3-way material split.
Decide between a stationary plant installation for long-term quarry operations or a mobile tracked scalping unit for flexible, on-site recycling and demolition tasks.
To help engineers and procurement managers evaluate equipment compatibility, review the standard technical parameters of Dahan industrial scalping screens below. Custom specifications are available upon request.
| Technical Parameter | Specification Range / Options |
|---|---|
| Handling Capacity (TPH) | 50 TPH to over 800 TPH (Customizable based on feed size) |
| Screen Deck Dimensions | Width: 1200mm - 2400mm | Length: 3000mm - 6000mm (Single or Double Deck) |
| Excitation Mode | Heavy-duty eccentric block vibrator / Dual vibration motors |
| Screen Surface Options | Grizzly Bars, Heavy Punch Plates, Polyurethane (PU) Modular Panels, or Finger Screens |
| Power Requirement | 7.5 kW – 45 kW (IP55 / Explosion-proof options available) |
| Max Feed Particle Size | Up to 800mm (Depending on model and application requirements) |
Industrial scalping screens are built to perform under the harshest operational conditions. They are deployed across multiple heavy-duty industries to protect downstream crushers and optimize material flow:

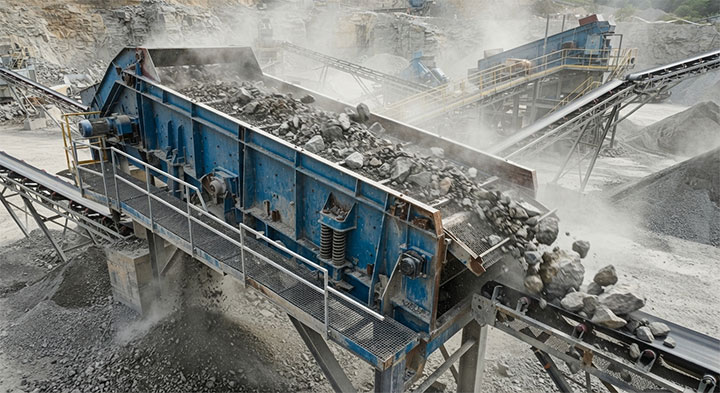

Quarries & Aggregate Production: Positioned right after primary blasting and dumping, scalpers remove oversized rocks and fine dirt before raw materials enter jaw or impact crushers, preventing equipment overloads and ensuring steady production output.
Hard Rock Mining Operations: Designed to handle high-tonnage, abrasive ores and heavy mineral drops, providing reliable primary separation in underground or surface mining setups under continuous heavy-load conditions.
Construction & Demolition (C&D) Waste Recycling: Effectively separates valuable concrete rubble, bricks, and asphalt from soil and fine debris, enabling efficient on-site material recovery and waste reduction.
Topsoil & Wet Clay Processing: Utilizes specialized rotary trommels or anti-blinding decks to break down and screen high-moisture, sticky organic materials cleanly without blinding or clogging the screening mesh.

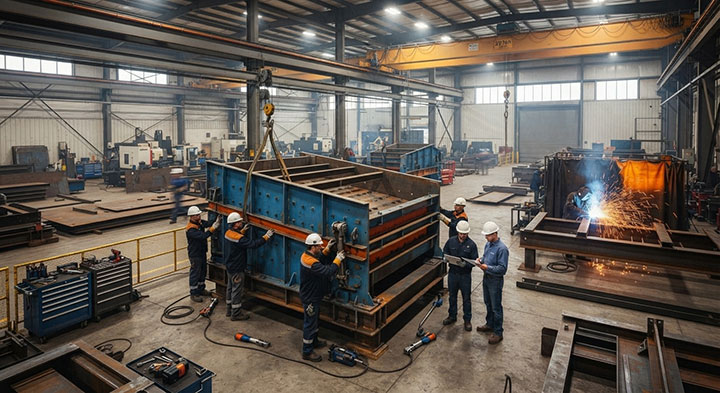

Every industrial production line has unique spatial constraints, material properties, and capacity demands. Standard off-the-shelf equipment does not always fit complex plant layouts. As a direct manufacturer, Dahan Machinery provides flexible, non-standard engineering customization to match your exact operational requirements.
Dimensional & Layout Adjustments: Customizing overall machine length, width, and feed chute angles to seamlessly integrate into your existing structural framework or limited plant space.
Deck & Material Upgrades: Tailoring wear-resistant liners, high-strength manganese steel grizzly bars, or polyurethane (PU) modular panels based on the abrasiveness and impact level of your raw materials.
Drive & Power Configurations: Selecting specialized explosion-proof motors, dual eccentric shaft configurations, or variable frequency drives (VFD) to match local power standards and precise vibration control needs.
Integration Support: Engineering complete feed-and-discharge transitions to ensure flawless connectivity with your primary crushers and belt conveyors.
Contact our engineering team with your site drawings or specific material data to get a tailor-made scalping solution designed specifically for your plant.
A scalping screen is specifically engineered to handle raw, un-crushed, high-impact feed material directly from blasting or primary dumping. It is equipped with heavy-duty grizzly bars, thick punch plates, and high-energy strokes to remove oversized boulders and protect downstream crushers, whereas standard vibrating screens typically handle finer, pre-sorted materials further down the processing line.
Yes. For high-moisture or clay-heavy applications, we offer specialized rotary trommel scalpers or custom anti-blinding deck configurations (such as polyurethane modular panels or self-cleaning elements) to prevent material blinding and ensure smooth, continuous separation.
The cut-off size depends entirely on the feed opening requirements of your primary crusher (such as a jaw or impact crusher) and your target product grading. Generally, material smaller than the crusher's optimal feed size is bypassed through the scalper deck to maximize overall plant capacity.
Absolutely. As a direct manufacturer, Dahan Machinery specializes in non-standard engineering. We can customize overall machine dimensions, deck angles, motor configurations, and discharge chutes to fit your existing plant layout.
As a direct manufacturer, Dahan Machinery delivers robust, high-performance scalping solutions backed by professional non-standard engineering capabilities. Contact our technical team today to discuss your project requirements, request detailed equipment drawings, or get a custom-tailored quote for your plant.
Send us your material specifications and capacity requirements to receive a professional engineering proposal within one business day.
