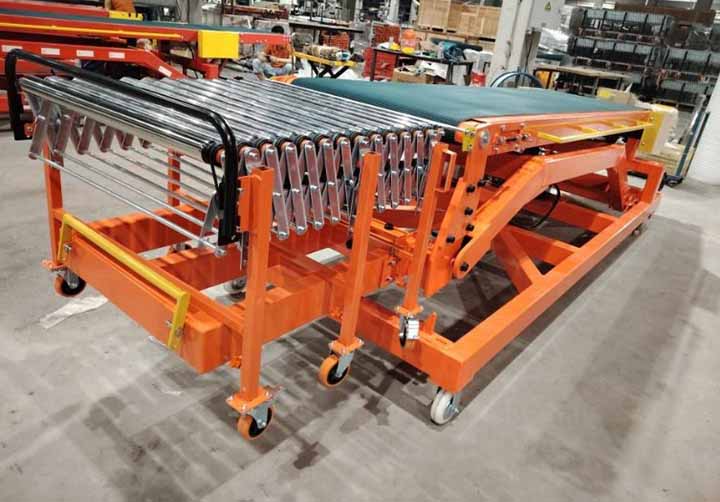

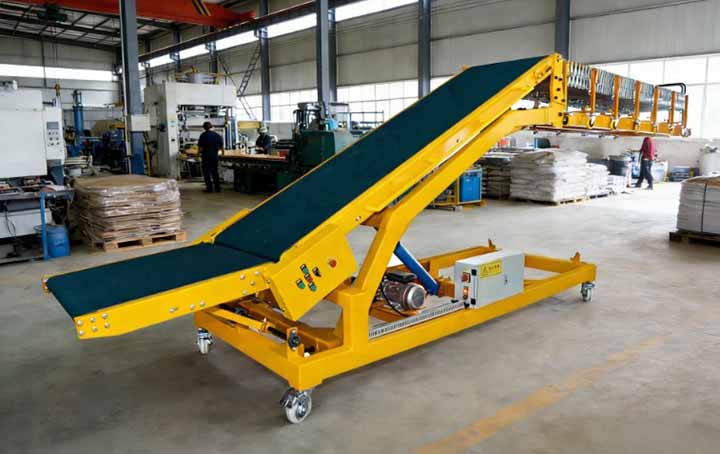

In logistics and warehousing operations, manual handling often leads to process delays, increased labor costs, higher cargo damage rates, and longer vehicle downtime. Mobile Conveyors for Truck Loading establish a connection between the warehouse floor and transport vehicles to streamline loading and unloading processes. For operational flexibility, these systems are equipped with heavy-duty swivel casters or electrically driven wheels, allowing a single operator to adjust the equipment position between different loading and unloading gears.
Depending on the characteristics of the materials, these machines use different types of belts: textured PVC belts are used for conveying cartons, rubber belts for heavy industrial goods, and belts with guards to prevent items from slipping during tilting operations. In terms of size, the system offers a variable length range, typically extending from 6 meters in a retracted state to 15 meters or longer when fully deployed inside a trailer.

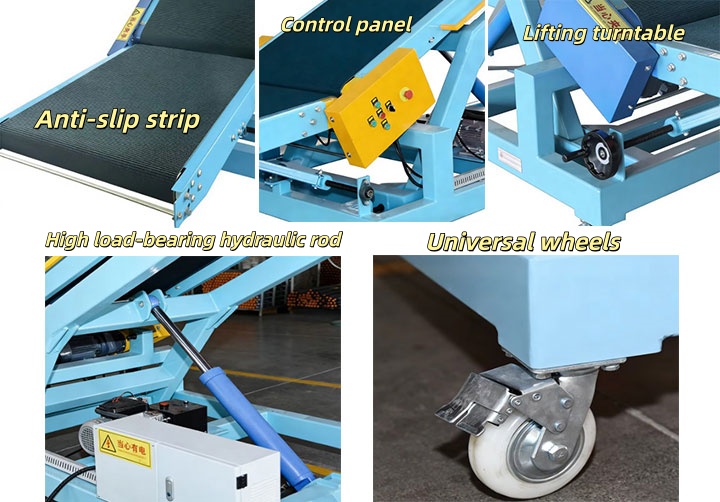

Mobile truck loading conveyors rely on heavy-duty hardware for operation: their main frame and telescopic frame are made of high-grade carbon steel or thick-walled channel steel, combined with an industrial powder-coated coating to withstand warehouse environments. The drive system consists of a high-torque motor and frequency converter, controlling the belt speed between 10 and 30 meters per minute. The bed includes precision steel idlers and rollers with built-in sealed self-lubricating bearings to reduce friction. Height adjustment is achieved by an integrated 2.2kW hydraulic pump station driving a heavy-duty cylinder, while electrical control is achieved through a centralized panel equipped with industrial buttons and an emergency stop switch.
The high-grade steel structure and wear-resistant coating of the Mobile Conveyor for Truck Loading give the equipment excellent durability, enabling it to withstand high-intensity continuous operation. Mechanized loading and unloading reduces truck turnaround time by 50%, significantly improving daily delivery efficiency. The equipment features casters at the bottom, combined with telescopic and hydraulic height adjustment functions, demonstrating high flexibility, allowing for on-the-spot deployment and eliminating the need for long-distance manual handling inside the truck bed. This transformation reduces tasks that previously required four people to perform to only two, lowering labor costs and the risk of personnel injury. Continuous mechanized transitions also reduce rough drops due to fatigue, lowering cargo breakage rates and optimizing supply chain metrics.
| Parameter / Feature | Standard Mobile Model | Telescopic Heavy-Duty Model |
|---|---|---|
| Operation Function | Reversible (Truck Loading & Unloading) | Bi-directional (Fast Loading/Unloading Switch) |
| Belt Width | 500 mm / 600 mm / 800 mm | 600 mm / 800 mm / Customized |
| Extension / Telescopic Range | 6m - 10m (Fixed / Foldable Boom) | 6m Retracted -> Up to 15m Extended |
| Conveying Speed | 10 - 30 m/min (VFD Speed Control) | 10 - 35 m/min (Adjustable Speed) |
| Max. Load Capacity | 50 - 80 kg/m | 100+ kg/m (Total Capacity > 1000 kg) |
| Lifting / Height Adjustment | Hydraulic Cylinder (0.8m - 3.5m) | Heavy-Duty Hydraulic Power Pack |
| Belt Type / Material | Textured Anti-slip PVC / Rubber Belt | High-Grip Patterned Industrial Rubber |
| Motor Power | 2.2 kW - 5.5 kW | 5.5 kW - 11 kW |
| Vehicle Compatibility | Vans, Light Trucks, Box Trailers | 20ft / 40ft Containers, High-sided Trucks |

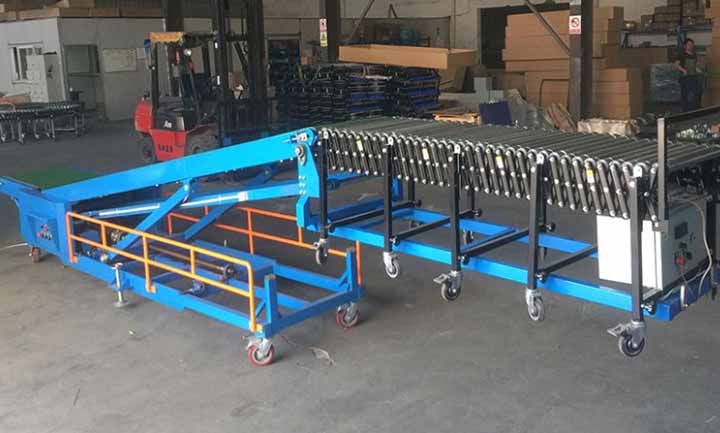

When budgeting for a mobile truck loader, investment costs vary depending on factors such as size, number of extension stages, and load capacity. Basic gravity or power-driven models with a fixed length and a load capacity of up to 50 kg per meter typically range from $3,399 to $8,500, making them an entry-level option for small warehouses. Medium-sized models, requiring hydraulic height adjustment, with a load capacity of up to 80 kg per meter and equipped with two extension stages, typically cost between $9,500 and $19,500. Heavy-duty multi-stage telescopic models, capable of penetrating 12 to 15 meters into a 40-foot container, with a total load capacity of over 1,000 kg, a load capacity exceeding 100 kg per meter, and equipped with electric drive and photoelectric sensors, range in price from $25,000 to $45,000.

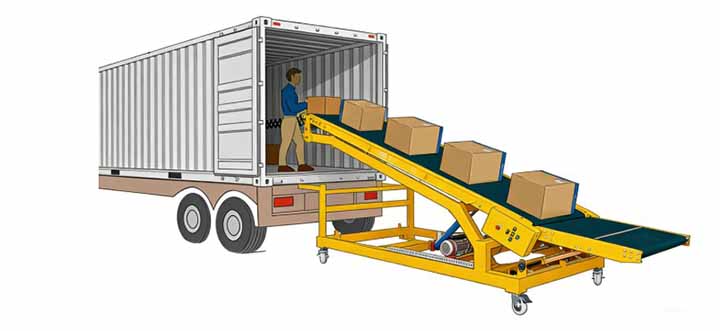

Mobile truck loaders act as dynamic bridges, adapting to various spatial environments and vehicles. When fully retracted, the telescopic boom occupies only 3 to 5 meters of floor space on the warehouse floor, providing ample space for forklifts to access the loading and unloading platform. During deployment, the boom extends directly into the compact space of containers (such as 20-foot and 40-foot ocean shipping containers), delivering the conveyor belt directly to the front of the stacks, eliminating the need for workers to walk back and forth in dark, cramped compartments. In terms of vehicle adaptability, it can accommodate both flatbed trucks and high-sided trailers with high lathes, as well as box trucks with low headroom. In industry applications, this configuration solves the flow and congestion problems encountered by e-commerce fulfillment centers handling thousands of packages daily, FMCG transshipment and distribution centers, and manufacturing plants loading finished products.

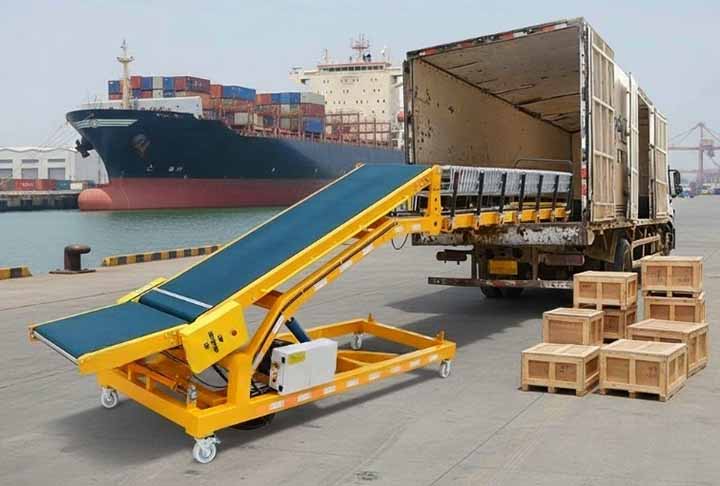

At a regional e-commerce fulfillment center in the United States, the center faced severe process disruptions during peak shipping periods. Due to the lack of elevated concrete loading and unloading platforms, workers had to manually carry 20-kilogram packages from the warehouse floor, across metal ramps, and into 40-foot containers; it took four workers nearly three hours to fill a single container.
The workflow was transformed after the introduction of a custom-designed 12-meter mobile telescopic conveyor with hydraulic tilting capability. The equipment was pushed to the container door and extended into the truck bed, adjusted to a waist-high working position. This reduced the number of personnel working inside the container to two, and the overall loading time for a single container decreased to 1.5 hours, enabling the facility to handle twice the number of outbound trucks per shift.
Yes, absolutely. Our mobile conveyors are equipped with a bi-directional (reversible) belt system. By simply toggling the switch on the central control panel, the conveyor belt reverses its running direction, making it equally efficient for both truck loading and unloading operations.
A telescopic belt conveyor features a multi-stage extendable mechanism. When fully deployed, the boom penetrates up to 12 to 15 meters directly into a 20ft or 40ft shipping container. This eliminates the need for workers to carry heavy loads back and forth inside the container, allowing seamless loading directly at the stack face.
The system handles a wide variety of packaged goods, including corrugated boxes, cartons, bags, plastic crates, sacks, and luggage. Depending on your material type, we offer textured anti-slip PVC belts or high-grip patterned rubber belts to prevent slipping during incline conveying.
Equipment pricing depends on conveyor length, telescoping range, and load capacity:
• Standard Mobile Belt Conveyors: $3,500 - $8,500
• Medium Duty Hydraulic Conveyors: $9,500 - $19,500
• Heavy-Duty Telescopic Systems (for Containers): $25,000 - $45,000+
Yes. The equipment is fitted with a 2.2kW hydraulic lifting system that smoothly adjusts the conveyor's operating height (ranging from 0.8m to 3.5m). This ensures versatile connectivity between warehouse floors and various vehicles, including box trucks, flatbeds, and high-sided trailers.
Mobile truck loading conveyors are essential machines in high-paced receiving and shipping operations. They combine robust steel construction with reliable drive hardware, solving the problems of high labor dependence, slow vehicle turnaround, and poor ergonomics on loading and unloading platforms. Whether navigating the compact space of a 40-foot container or adapting to the open lathe of a truck bed, their ability to streamline material flow makes them a cost-effective investment.
