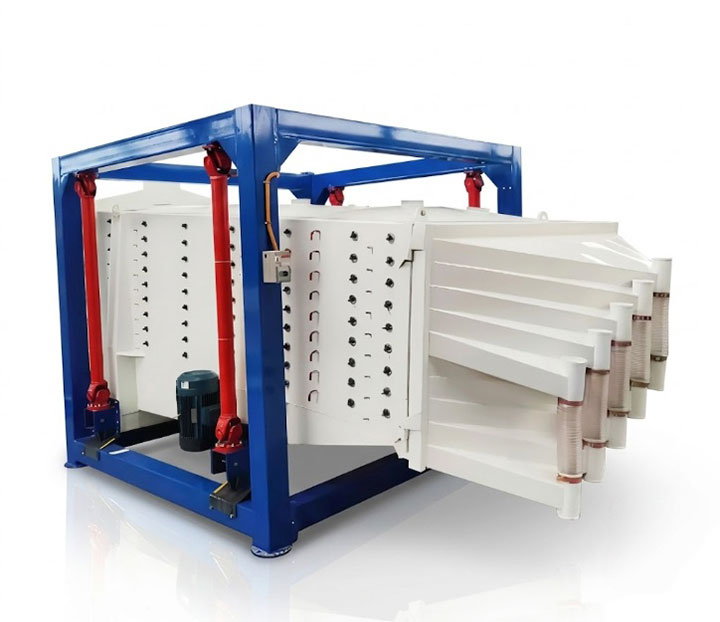

Pre-cleaner Swing Sieve

The Pre-cleaner Swing Sieve (also widely recognized as a Heavy-Duty Square Gyratory Sifter) is a high-capacity industrial screening machine for raw grain pre-cleaning, scalping, and precise particle classification. Driven by a robust motor with a precision eccentric balancing mechanism, it delivers a smooth, low-frequency horizontal planar swing motion. This gentle yet high-performance stroke achieves multi-stage impurity removal and accurate material sizing with near-zero grain breakage, making it an essential asset for modern grain storage silos and flour mills.

Core Features & Technical Advantages

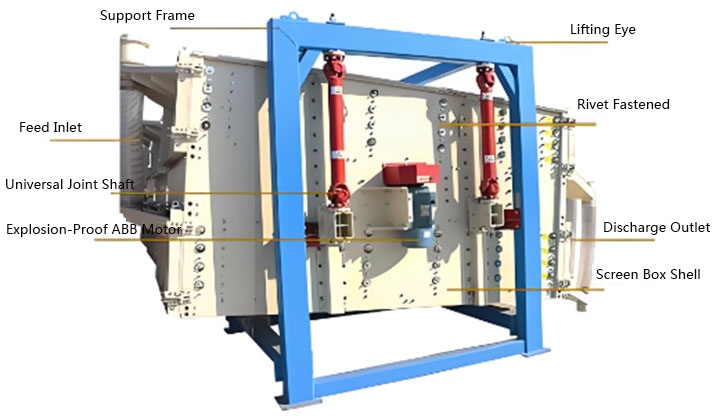

Separated Multi-Layer Screen Cassettes: Every mesh deck is configured as an independent cassette layer. Operators can easily slide out, inspect, or replace any single screen tier without disassembling the entire screen box, drastically reducing downtime and simplifying routine maintenance changeovers.

Multi-Stage Impurity Classification & Sizing: Equipped with multiple stacked screen decks, the equipment isolates distinct fractions in a single pass: top decks capture large foreign debris (stones, straw, and metal fragments), intermediate decks perform precise particle sizing, and lower decks segregate broken kernels, weed seeds, and fine sand.

Gentle Horizontal Stroke with Near-Zero Kernel Damage: Unlike conventional high-frequency vibrating screens that induce harsh vertical impacts and kernel cracking, the continuous horizontal gyratory motion keeps material in constant, smooth contact with the screen mesh. This extends retention time for superior screening accuracy while safeguarding fragile agricultural grains.

Modular Aspiration & Dust Control Integration: Designed with standard flanged air duct connections, the unit can be seamlessly integrated with external suction blowers and multi-cyclone dust collectors to efficiently extract lightweight dust, husks, and chaff directly at the feed and discharge terminals.

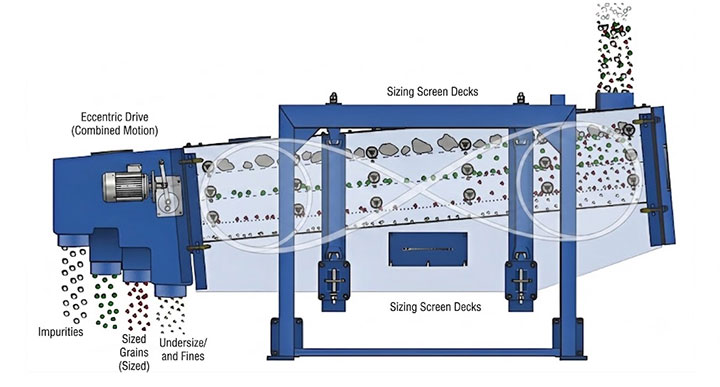

Working Principle & Material Separation Flow

The robust drive motor operates an eccentric weight mechanism that transforms rotational force into a smooth, horizontal planar gyratory motion across the entire screen assembly. As bulk raw grain enters the feeding inlet, it spreads uniformly across the top screen deck in a continuous, gentle sliding action rather than a harsh vertical bounce.

Through successive modular screen layers, materials are progressively classified by particle size and aerodynamic profile. Large coarse impurities (such as stones, straw, and debris) are safely retained on upper decks, sound marketable grains are accurately sized and routed to primary outlets, while undersized fractions, weed seeds, and fine sand pass through the lower screen beds to dedicated discharge spouts.

Pre-cleaner Swing Sieve Technical Specifications

The Pre-cleaner Swing Sieve (Square Gyratory Sifter) is engineered with flexible modular screen cassette layouts and configurable drive options to match diverse grain processing capacities and industrial plant requirements. Standard technical parameters are outlined in the specification table below:

Note: Overall dimensions, motor specifications, and deck counts can be custom-tailored to your specific plant layout and grain separation targets.

Applicable Materials & Industry Applications

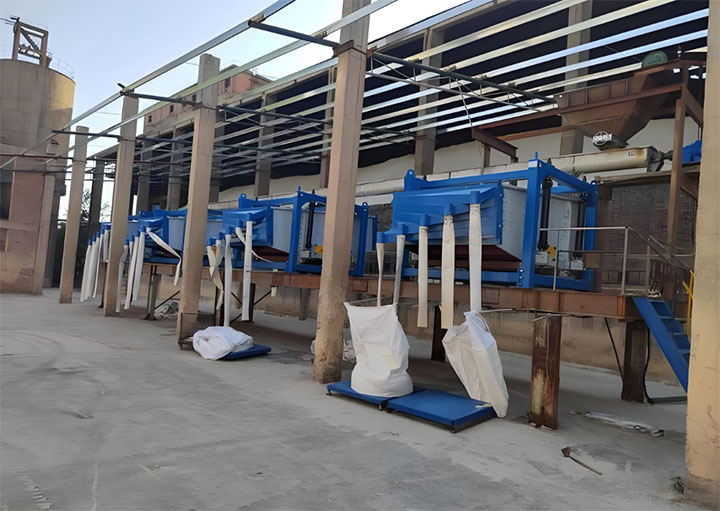

The Dahan Pre-cleaner Swing Sieve is widely deployed across demanding industrial bulk handling sectors requiring high throughput and reliable separation:

Grain & Seed Processing: High-efficiency scalping and cleaning of wheat, corn, rice, soybeans, sorghum, and oilseeds prior to long-term silo storage or milling.

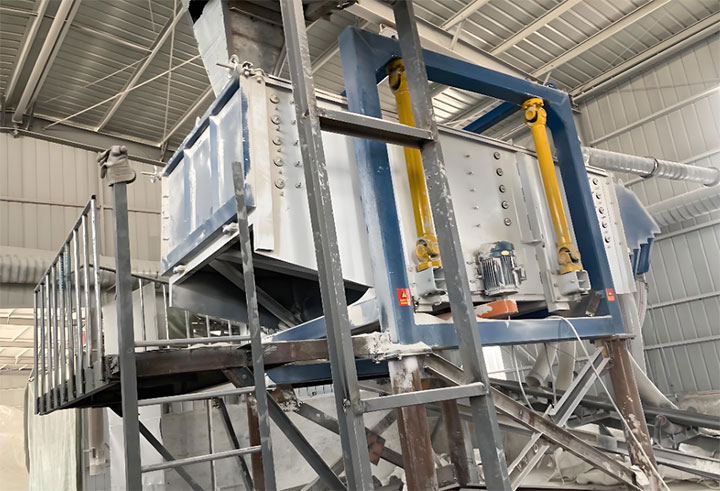

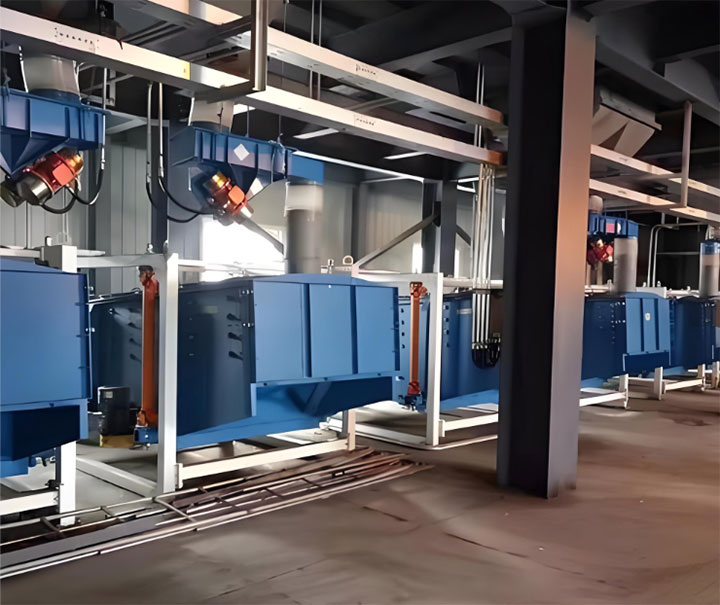

Flour & Feed Milling: Removing coarse foreign debris and fine contaminants to safeguard downstream milling machinery and ensure high purity standards in commercial feed production.

Oilseed & Food Processing: Pre-cleaning bulk oilseeds and food-grade grains to eliminate oversized waste materials, preventing equipment blockages and optimizing extraction yields.

Frequently Asked Questions (FAQ)

Q1: What is the main difference between a pre-cleaner swing sieve and a standard vibrating screen?

A1: While conventional vibrating screens rely on harsh vertical vibrations that can crack or damage fragile agricultural grains, the Dahan Pre-cleaner Swing Sieve utilizes a smooth, continuous horizontal planar gyratory motion. This ensures high-capacity scalping with near-zero grain breakage and superior multi-stage separation accuracy.

Q2: How does the machine prevent screen blinding when processing damp or sticky grains?

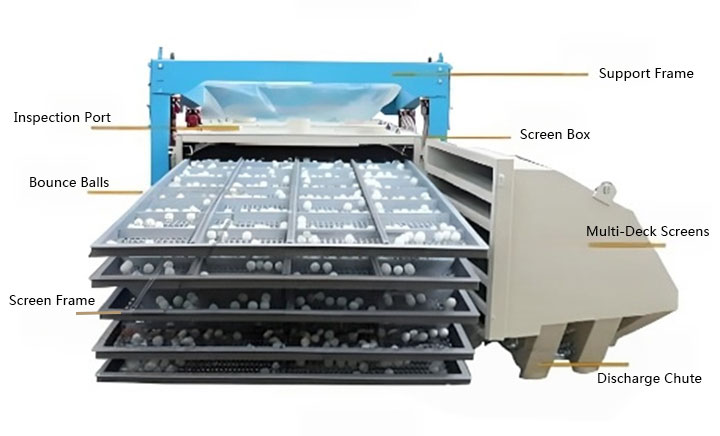

A2: The equipment is engineered with an efficient internal anti-blinding cleaning system—featuring specially weighted bouncing rubber balls that continuously agitate beneath the screen mesh. This prevents damp materials from clogging apertures and ensures continuous, stable throughput.

Q3: Can the number of screening decks be customized for our specific plant requirements?

A3: Absolutely. The machine features a flexible modular cassette design, allowing 2 to 6 independent screen tiers to be easily configured and adjusted according to your exact impurity separation and grading targets.
