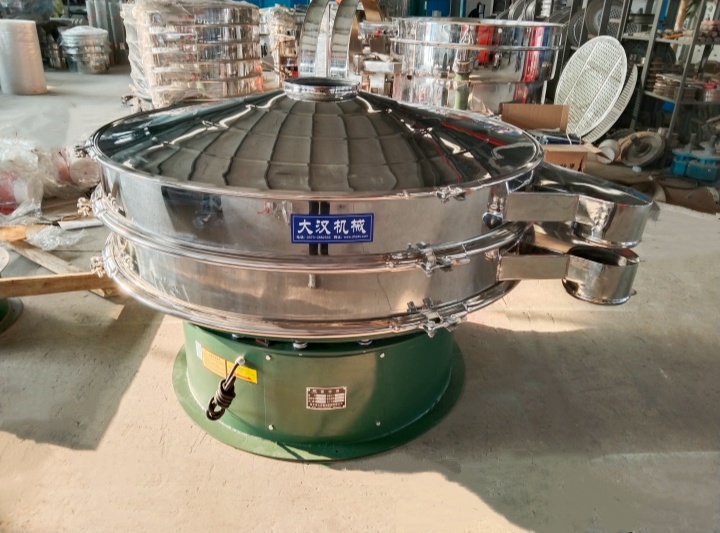

Concrete Sand Vibrating Screen

Concrete Sand Vibrating Screen uses screens with different aperture sizes and a vibrating motor to quickly separate stones, mud, and impurities from sand, accurately classifying sand of different particle sizes. It is suitable for both dry and wet screening scenarios, with easy screen replacement, stable operation, and supports multi-level use. It can work continuously for 24 hours, easily adapting to production lines. Non-standard customization is supported, allowing for the customization of appropriate sizes, functions, and other additional conditions to suit the production site.

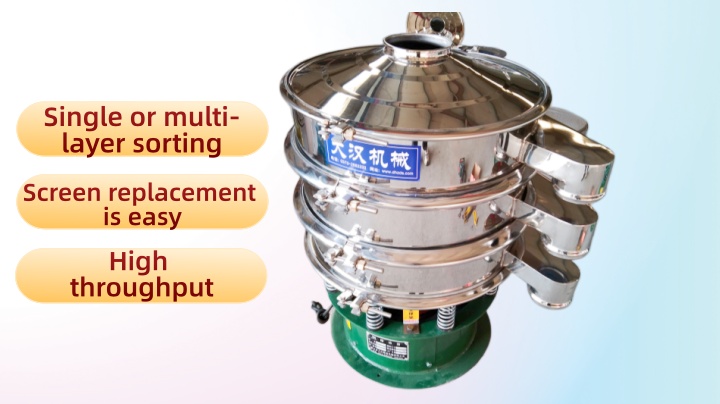

What are the advantages of the Concrete Sand Vibrating Screen?

The Concrete Sand Vibrating Screen uses three-dimensional rotary vibration technology, resulting in a uniform screening trajectory and large processing capacity. It can quickly classify, remove impurities, and eliminate mud from sand and gravel, improving sand purity. Screen replacement is convenient, and particle size can be flexibly adjusted according to needs. It is suitable for both dry and wet screening and has strong adaptability. The machine operates smoothly, has a low failure rate, is easy to maintain, consumes little energy, and is highly efficient, effectively reducing manual screening costs. Non-standard customization is supported; drawings can be customized according to production site requirements.

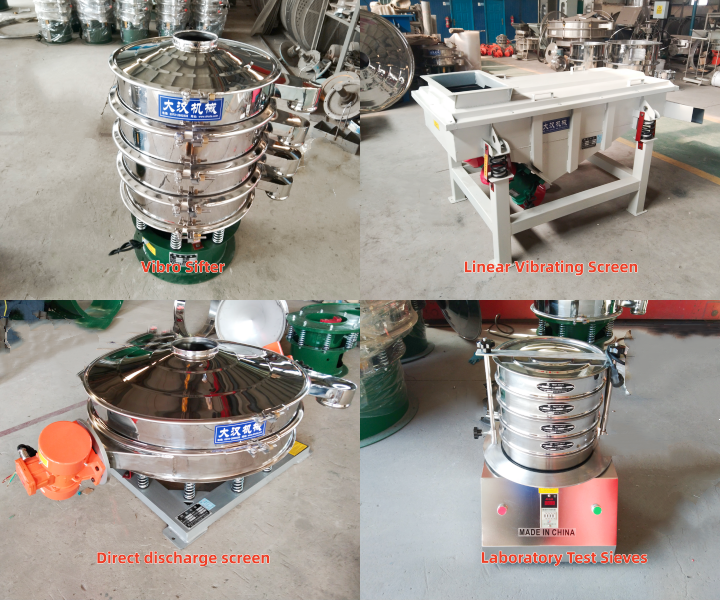

What types of Concrete Sand Vibrating Screens are available?

Our factory offers different models of Concrete Sand Vibrating Screens to choose from, based on customer production needs. We can recommend suitable screening equipment based on site conditions and production requirements, ensuring a smooth and accurate screening process.

Vibrating Screen: Utilizes a three-dimensional vibrating principle, ensuring stable operation and high screening accuracy. Suitable for classifying various materials such as fine powders, granules, and slurries. It can be equipped with 5 layers of screens and supports the addition of an ultrasonic system to easily handle various ultrafine powders.

Linear Screen: Conveys materials using linear vibration, offering large processing capacity and fast screening speed. Primarily used for materials with larger particles and high output requirements, suitable for continuous, large-scale production lines.

Linear Vibrating Screen: Utilizes a vertical vibration structure, ensuring fast discharge speed and preventing screen clogging. Specifically designed for powders and wet materials prone to agglomeration and screen adhesion, it allows for rapid discharge and impurity removal.

Test Sieve: Also known as an analytical sieve or inspection sieve, it is primarily used for particle size analysis and small-batch sample analysis in laboratories. Compact in size and offering precise sieving, it can be used with standard sieve frames and is widely used in research institutions, factory quality control, and raw material testing.

How does a Concrete Sand Vibrating Screen work?

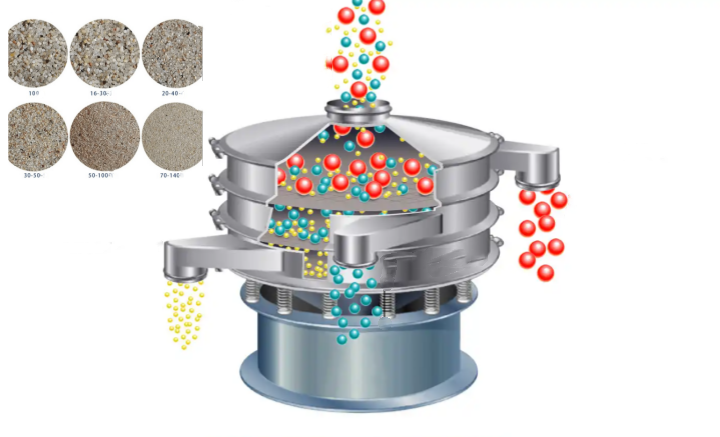

The Concrete Sand Vibrating Screen operates on the principle of three-dimensional rotational vibration. Its core components, including a vibrating motor, screen box, screen mesh, and shock absorbers, work in tandem. After startup, the vibrating motor generates composite vibrations in three directions: horizontal, vertical, and inclined. Concrete sand enters the screen through the inlet and, under the combined vibration force, undergoes continuous throwing and sliding motion along the screen surface. The screen mesh is designed with corresponding aperture sizes based on the particle size requirements of the concrete sand. Sand meeting the particle size standard quickly passes through the screen holes and falls into the receiving device below. Impurities such as stones, mud, and debris in the sand, due to their larger particle size than the screen holes, slide along the screen surface with the vibration and are discharged through the discharge port, completing the grading and impurity removal process.

Concrete Sand Vibrating Screen Technical Parameters

Concrete Sand Vibrating Screen Customer Cases

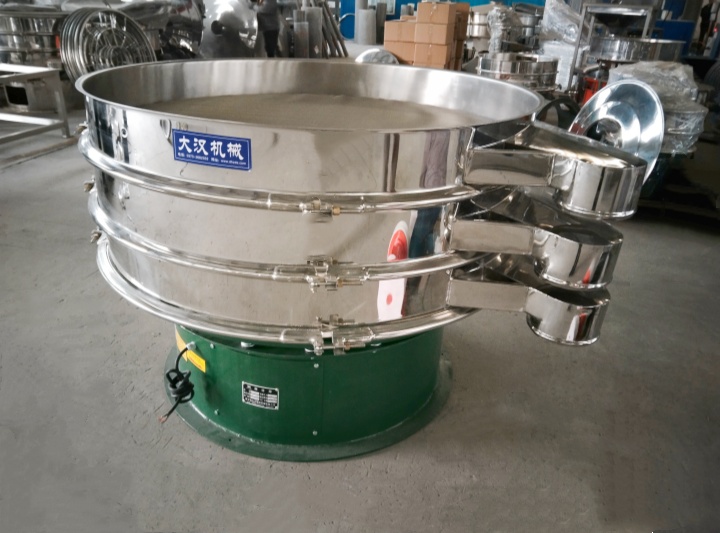

The customer's building material mixing plant has long faced problems such as high mud content, numerous impurities, and uneven grading in its concrete sand, affecting the concrete mix proportions and strength. Five custom-made Concrete Sand Vibrating Screens were installed. These screens feature a three-dimensional rotary vibrating structure, an 800mm diameter, and custom-made 8-mesh and 60-mesh screens for rapid separation of stones, mud, and impurities from sand. After being put into operation, screening efficiency was significantly improved, the finished sand achieved the required purity and stable gradation, thus enhancing concrete quality and production efficiency.

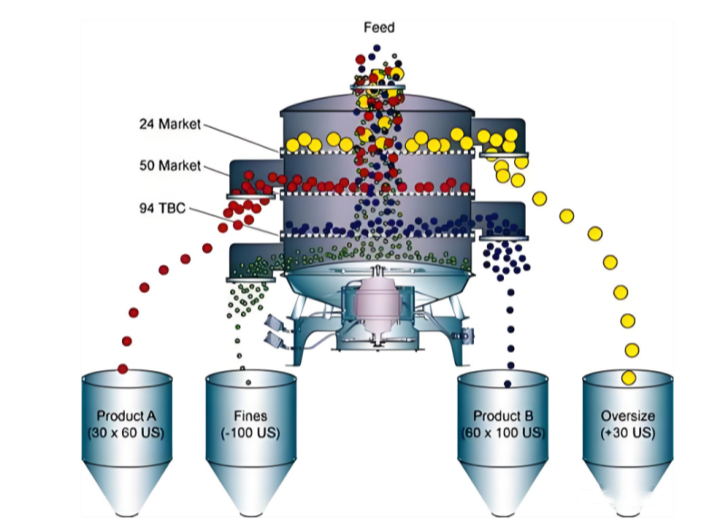

How many grades can a Concrete Sand Vibrating Screen separate into at one time?

The Concrete Sand Vibrating Screen can be flexibly configured with the number of screen layers according to production needs, enabling multiple grading with a single feed, eliminating multiple screening processes. Depending on actual usage requirements, 16-layer screens can be customized, capable of separating 7 different particle size grades at once. This meets the simple grading needs of ordinary mixing plants for coarse, medium, and fine sand, and also adapts to the fine particle size separation requirements of high-standard building material enterprises. Note that the screening effect of the top layer will be slightly worse with higher grading levels; for high-precision screening, it is recommended to use multiple units.

Concrete Sand Vibrating Screen Manufacturer

Dahan Vibration Machinery, established in 2008, boasts years of manufacturing experience. Our Concrete Sand Vibrating Screens are exported globally, and we possess large-scale production and customized service capabilities. Our product range covers various models and screening accuracies to meet the production needs of construction sites, sand and gravel plants, mixing plants, laboratories, and other scenarios. We support non-standard customization, tailoring equipment parameters and structures to meet customers' actual working conditions, output requirements, and screening particle size needs. We provide a one-stop service from selection and design to production and delivery.

Concrete Sand Vibrating Screens are easy to operate and maintain, suitable for continuous operation on construction sites and in sand and gravel yards. They are stable and reliable key equipment in concrete production and sand and gravel processing, providing strong guarantees for project quality and production efficiency.
