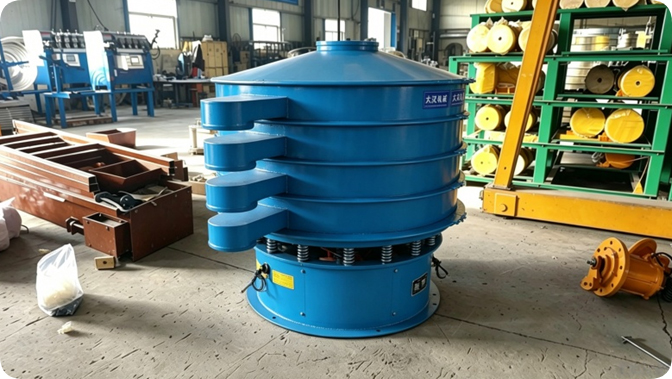

Industrial Vibrating Screen for Plantain Flour Processing

The vibratory sifter for plantain flour is a critical industrial sifter used in food processing to remove foreign particles and break down agglomerates. This high-performance vibro sifter ensures a fine, uniform powder ideal for culinary and industrial uses. By delivering consistent screening efficiency, our vibrating screen for plantain flour helps manufacturers achieve superior product quality while maximizing throughput.

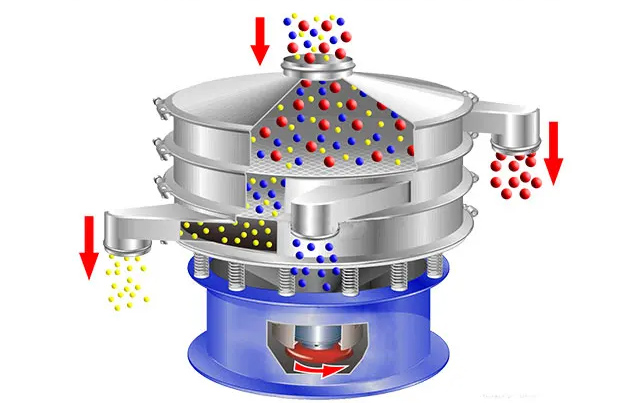

The principle of the plantain flour strong>vibratory sifter is to use the vibration force of the motor to cause the screen to vibrate at high frequencies. The raw materials enter the upper part of the vibrating screen. Due to the vibration force, larger particles will be blocked by the screen, while smaller particles will fall through the screen into the collecting port below. By adjusting the amplitude and frequency of the vibrating screen, materials of different particle sizes can be screened.

Key Challenges in Plantain Flour Screening and Our Solutions

Plantain flour presents unique screening challenges due to its high starch and fiber content. Here are the three main issues processors face:

Clumping: Plantain flour readily absorbs moisture from the air, forming hard lumps that clog screens and compromise product quality.

High Fiber Content: The fibrous nature of plantain causes particles to tangle and block mesh openings, reducing effective screening area.

High Fineness Requirements: Premium plantain flour demands extremely fine and uniform particle sizes. Industry research indicates an ideal average particle size of approximately 236μm (about 60 mesh), while high-end applications may require 120 mesh or finer.

Our Targeted Solutions:

For Clumping: Our vibratory sifters can be equipped with an ultrasonic deblinding system. High-frequency ultrasonic energy actively breaks down soft agglomerates and prevents fine particles from blinding the mesh, ensuring efficient screening at high mesh counts.

For Fiber Tangling: We install bounce balls or rubber cleaning rings inside the machine. These continuously strike the screen surface during operation, effectively dislodging tangled fibers and adhered particles to maintain consistent throughput.

For High-Precision Grading: Our machines feature high-quality stainless steel screens available from 40 to 325 mesh. Combined with adjustable vibration amplitude and frequency, we help you achieve precise particle size control—whether you ne ed 236μm for standard markets or finer grades for specialty applications.

Technical Specification & Selection Guide for Plantain Flour Vibratory Sifters

Note: Actual throughput varies based on material moisture content, fiber percentage, and mesh size. Please consult our engineers for customized recommendations.

Success Story: Upgrading Plantain Flour Processing for a Nigerian Client

A major plantain flour processing facility in Nigeria faced persistent quality issues with their existing screening equipment. Their throughput was limited to just 200 kg/h, and their final product frequently contained fine fibers and clumps, leading to customer complaints.After evaluating their needs, we supplied our DH-1200 vibratory sifter equipped with an ultrasonic deblinding system and a 120-mesh screen. The results were transformational:

Throughput increased from 200 kg/h to 800 kg/h—a 4x improvement in productivity.

Impurity removal rate exceeded 99%, delivering exceptionally clean, uniform flour.

The upgraded product quality allowed them to access premium food markets, significantly increasing their revenue.

This case demonstrates how the right vibrating screen for plantain flour processing can turn operational challenges into competitive advantages.

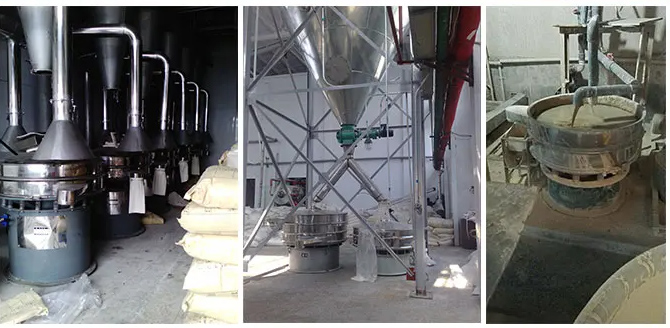

Plantain flour vibratory sifter has a wide range of applications in the food processing industry. For example, during flour processing, flour needs to be screened to remove impurities and lumps to improve the quality of the flour. The plantain flour vibrating screen can complete this process efficiently, improving flour quality and processing efficiency. In addition, the plantain flour vibrating screen can also be used to screen other food raw materials, such as rice flour, bean flour, etc.

In addition to the food processing industry, plantain flour vibratory sifter is also widely used in chemical, pharmaceutical and other industries. In the chemical industry, it can be used to screen granular chemical raw materials, such as pigments, rubber powder, etc. In the pharmaceutical industry, plantain flour vibrating screens can be used for screening and grading medicinal powders to meet the requirements of pharmaceutical production.

Plantain flour vibratory sifter is an important screening equipment with wide application prospects. It uses the movement of the vibrating screen to screen and separate materials of different particle sizes, improving product quality and processing efficiency. In food processing, chemical, pharmaceutical and other industries, plantain flour vibrating screens play an important role.

Solve clumping and purity issues with our high-efficiency vibratory sifter for plantain flour. Boost flour quality with 96% screening efficiency. Get a quote today!
