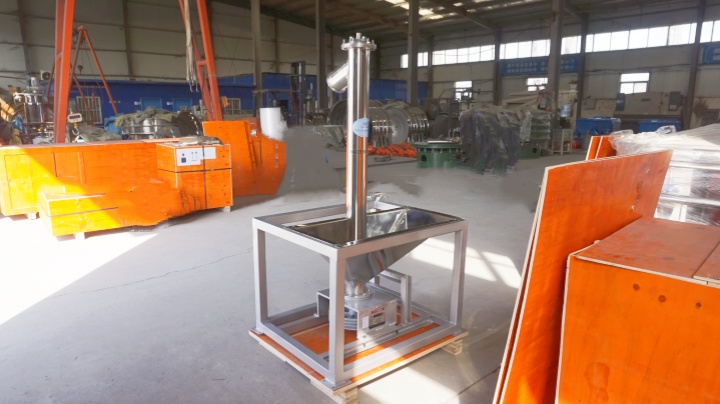

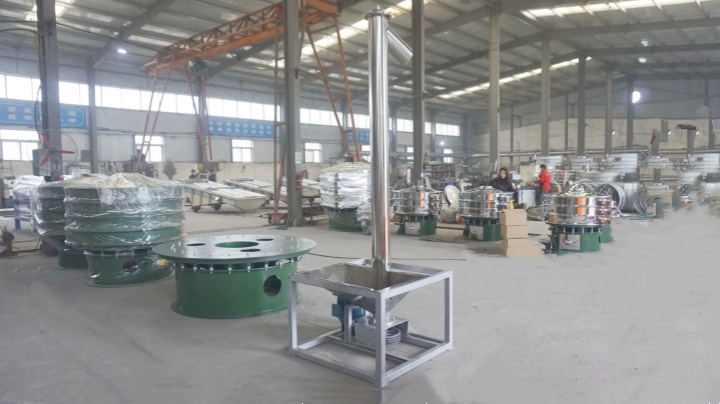

Stainless steel small vertical conveyor is a lightweight conveying equipment designed for the vertical transfer of powder and granular materials. Its core function is to transfer materials from a low position to a high position. The main body is made of 304 or 316 stainless steel, offering corrosion resistance and easy cleaning. It supports a mobile roller design, allowing for flexible placement without fixed installation, adapting to multi-station operations in workshops. The compact structure uses a motor to drive the screw shaft to rotate, generating thrust to achieve vertical lifting of materials. The lifting height can be customized as needed, directly connecting to various equipment to complete the production work of the entire production line.

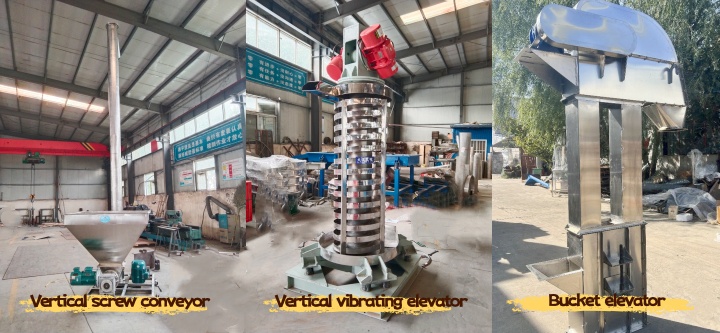

Our factory supplies various types of stainless steel small vertical conveyors, including vertical screw conveyors, vertical vibrating elevators, and bucket elevators. We can customize the selection based on material characteristics, conveying capacity, and working conditions, adapting to the vertical transfer of powders and granules in multiple industries.

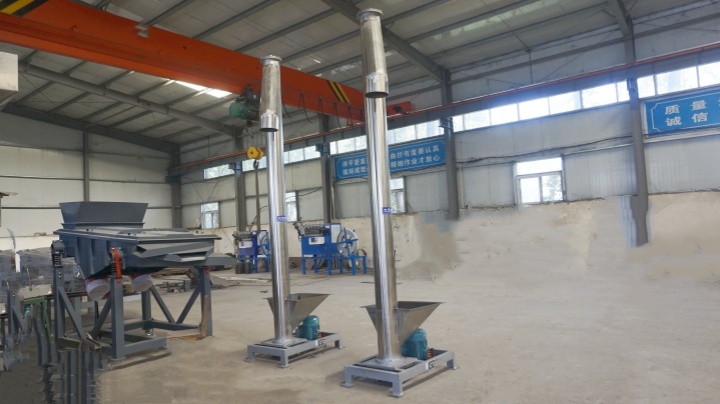

Vertical screw conveyor: Uses a screw blade as the core conveying component, with a stainless steel pipe. It is suitable for the vertical transfer of powder and granular materials, with a vertical height of up to 5 meters. The motor drives the screw shaft to rotate at high speed, using the screw thrust to push the material from the bottom inlet to the top outlet.
Vertical vibrating elevator: Operates based on the excitation force generated by a vibrating motor. The stainless steel trough is designed in a spiral upward shape, and the material moves upward along the trough at a constant speed under the action of vibration. Its advantage is that the conveying process is gentle and does not easily damage the granular form of the material.
Bucket elevator: Composed of stainless steel buckets, traction components, and a driving device. The buckets are evenly fixed on a chain or belt and circulate with the traction components to complete the digging and lifting of materials. The equipment can lift materials up to 40 meters, with stable conveying efficiency, suitable for the feeding needs of small and medium-sized production lines.
The stainless steel small vertical conveyor features 304/316 stainless steel construction for corrosion resistance and easy cleaning, flexible casters for easy repositioning, and a fully sealed structure to prevent dust dispersion. It is suitable for conveying powder and granular materials in various industries and can be customized to meet specific requirements.
Corrosion-resistant and easy to clean: Made of 304/316 stainless steel, it resists acid and alkali corrosion and meets the clean production standards of the food, pharmaceutical, and chemical industries.
Flexible mobility: Equipped with casters, it can be quickly moved to different workstations as needed, eliminating the need for fixed infrastructure. It is suitable for multi-equipment linkage in workshops and small-batch feeding in laboratories.
Sealed conveying: The fully enclosed pipeline effectively prevents dust and granular materials from escaping, ensuring a clean workshop environment and preventing material waste, while also preventing external impurities from contaminating the materials.
Wide range of applications: Covering screw, vibration, and bucket types, it can be selected based on powder fineness and particle hardness to meet the lifting needs of different industries.

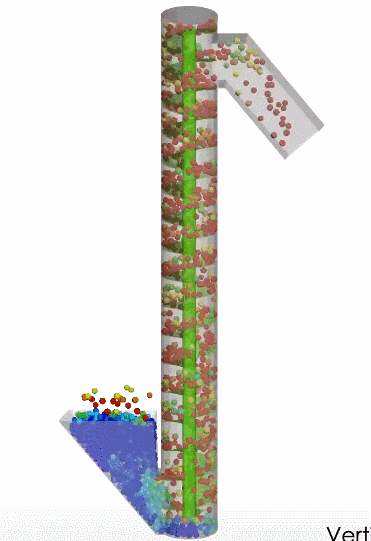

The working principle of the stainless steel small vertical conveyor varies depending on the type, but the core function is to achieve vertical transfer of powder and granular materials. Driven by a motor system, the material enters from the bottom inlet, moves smoothly upwards along the vertical track under mechanical power, and is automatically discharged at the top through a turning mechanism, completing the vertical feeding of the material.

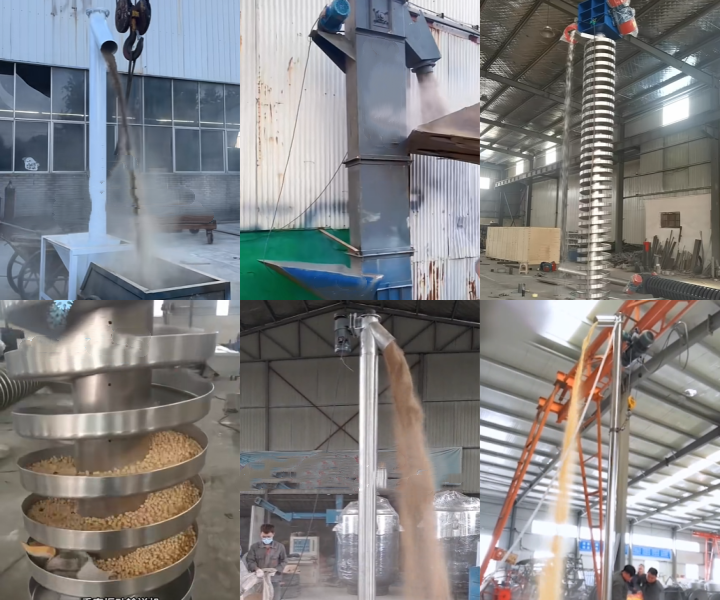

The stainless steel small vertical conveyor is widely used in food, pharmaceutical, chemical, and other fields, addressing the need for vertical conveying of powder and granular materials. The enclosed design ensures a clean production environment, and the stainless steel material meets various clean and corrosion-resistant working conditions.
Food processing: In the production workshops of flour, milk powder, sugar, and grain particles, it is often used for vertical feeding in the ingredient mixing process. The fully sealed structure prevents materials from getting damp or contaminated, and the casters allow for flexible connection to different mixing tanks.
Pharmaceutical and chemical industries: Suitable for the transfer of pharmaceutical intermediate powders, fine chemical raw materials, and catalyst particles. 316 stainless steel can be selected to handle strong acid and alkali materials. Feed and Agricultural Supplies: In small feed mills and agricultural materials production workshops, it can be used for the vertical lifting of materials such as feed pellets, fertilizer raw materials, and seeds, meeting the needs of raw material feeding and finished product temporary storage and transfer in small and medium-sized production.
Plastics and Hardware: For materials such as plastic particles, masterbatches, and metal powders, it can realize feeding from the raw material warehouse to injection molding machines and forming machines. The stainless steel material is wear-resistant and corrosion-resistant, and can cope with the wear of metal powders and the electrostatic adsorption of plastic particles.
When choosing a suitable Stainless steel small vertical conveyor, we need to consider the material characteristics, working conditions, and equipment type comprehensively. First, clarify the material properties. For powdery materials, a vertical screw conveyor is preferred to avoid dust; for easily damaged granular materials, a vertical vibrating elevator is suitable for gentler conveying; for large particles and high throughput materials, a bucket elevator can be used. Secondly, pay attention to the material. For the food and pharmaceutical industries, 304 stainless steel is selected, and 316 stainless steel is required for strong acid and alkali corrosive working conditions. Then, determine the lifting height and conveying capacity according to the site layout, and match it with a mobile roller design to meet the needs of multi-station operation. At the same time, consider the sealing performance; for dusty materials, a fully sealed structure must be selected to prevent leakage and pollution.

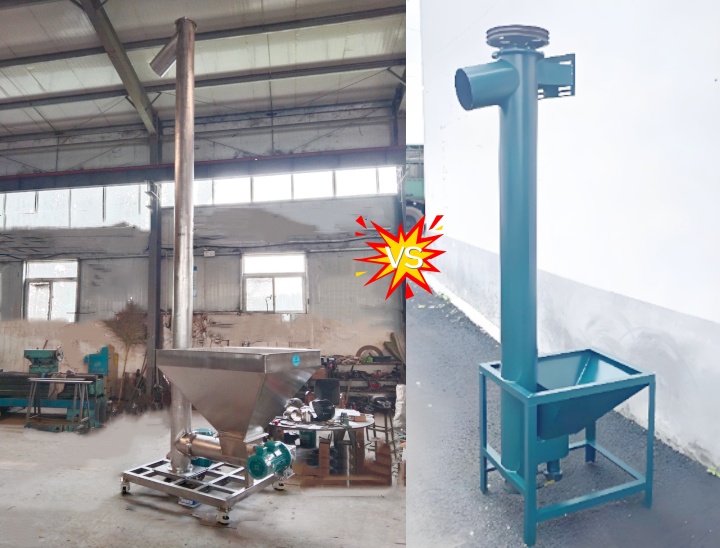

The core difference between Stainless steel small vertical conveyor and carbon steel models lies in material performance, applicable scenarios, and service life. Stainless steel models use 304 or 316 material, which has excellent corrosion resistance and rust resistance, and the surface is smooth and easy to clean, meeting the clean production standards of the food, pharmaceutical, and fine chemical industries. It can directly contact corrosive materials or materials with high hygiene requirements in powder and granular form. Carbon steel models are less expensive and have higher material hardness, but have poor corrosion resistance and are prone to rust. They are mostly used for conveying dry, non-corrosive materials and require regular anti-rust treatment. They are more suitable for rough production scenarios such as mining and construction where hygiene requirements are low.
Dahan Machinery's stainless steel small vertical conveyors start at $500, with transparent pricing and no hidden fees. The price is primarily influenced by material specifications, model, lifting height, conveying capacity, and customization requirements, such as adding casters, upgrading the sealing structure, or configurations for special working conditions. We adhere to a factory-direct model, eliminating intermediary markups, and offer both standardized basic models and non-standard customization services. All equipment includes a basic warranty and free technical solution design, ensuring customers receive durable equipment for vertical conveying of powders and granular materials at a high cost-performance ratio.
Choosing us as your stainless steel small vertical conveyor manufacturer is based on a triple guarantee of strength, quality, and service. We have been deeply involved in the industry for many years, possessing a mature production system and technological expertise. Our equipment uses high-quality 304/316 stainless steel materials and undergoes strict quality control to ensure corrosion resistance and durability, with a longer lifespan than the industry average. We support customized lifting height, conveying capacity, and functional configurations to perfectly adapt to various industry working conditions. Our factory-direct model eliminates intermediary markups, resulting in outstanding cost-effectiveness.We provide full-process service, from free solution design and rapid delivery to after-sales response and quality assurance of spare parts, ensuring worry-free procurement and use.
The stainless steel small vertical conveyor features a compact structure, convenient mobility, and secure sealing, combining material corrosion resistance with adaptability to various working conditions. It can meet the needs of small-batch multi-station transfer and ensure clean and safe material conveying, making it a preferred choice for lifting operations in many industries.
