A YK Series Inclined Vibrating Screen is a robust, high-capacity mechanical classification machine engineered for primary, secondary, and tertiary sizing in heavy-duty industrial environments. Unlike light-duty separators designed for fine powder or laboratory use, our industrial-grade screening equipment is purpose-built to handle high-impact, high-volume material flows—such as raw mineral ores, heavy aggregates, and run-of-mine (ROM) coal—where high throughput, sharp separation, and structural durability are critical.
By deploying an optimized inclined screen deck, mineral processing and aggregate operations can capitalize on the synergistic combination of gravity and high-intensity circular vibration. This proven design configuration maximizes processing speed, volumetric capacity, and screening efficiency, ensuring the plant withstands the rigorous demands of large-scale crushing and screening circuits while minimizing operational downtime.

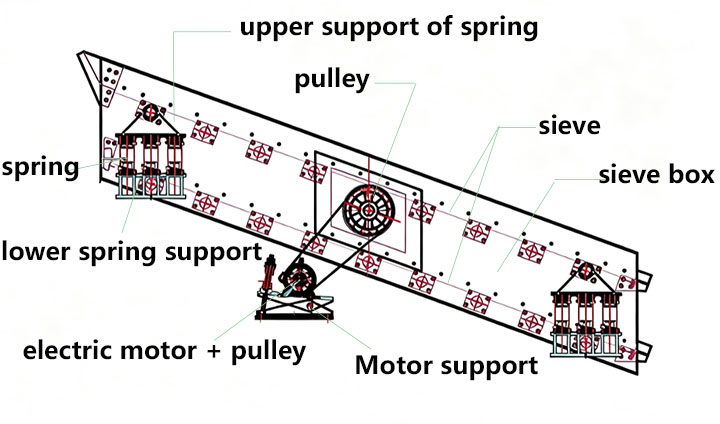

The screening performance of the YK Series inclined vibrating screen is achieved through a mechanical interaction between gravity, the adjustable screen deck angle, and centrifugal force generated by the single-shaft eccentric design.
Generation of Circular Motion
The system is powered by a custom-engineered, single-shaft eccentric vibrator system. Driven by an electric motor via heavy-duty V-belts, the rapid rotation of the eccentric shaft creates a precise, unbalanced centrifugal force. This force drives the entire robust screen box into a continuous, stable circular motion within a vertical plane.
The Acceleration and Stratification Process

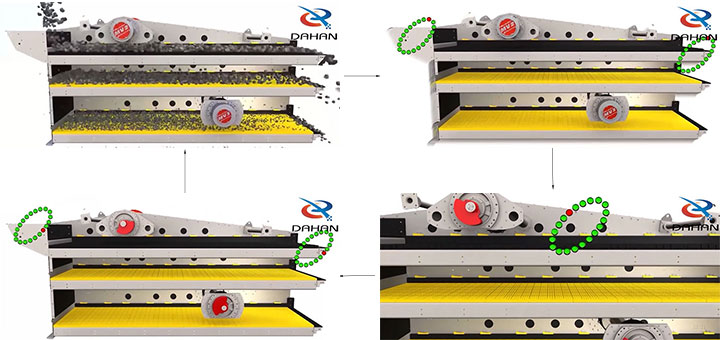

As the screen box vibrates, every point on the inclined deck describes a circular trajectory. This motion imparts an upward and forward acceleration to the material bed. When the upward acceleration of the deck exceeds gravity, the material is thrown upward, breaking the compacted material bed. This action facilitates rapid material stratification:
Gravity-Assisted Continuous Flow
Unlike horizontal vibrating screens that rely strictly on dual-shaft mechanical force to push material forward, our inclined screens utilize the optimized deck angle (typically 15° to 25°) to let gravity naturally assist the material flow. This gravity-assisted travel accelerates material velocity across the deck, preventing material accumulation, minimizing the risk of screen blinding (mesh clogging), and delivering significantly higher processing speeds and volumetric capacities for heavy-duty plants.
The Dahan YK Series inclined vibrating screens are engineered for classification in industrial applications. The core technical parameters for our standard units are detailed below.
| Model | Decks | Area (m²) | Angle (°) | Mesh Size (mm) | Max Feed (mm) | Capacity (t/h) | Amplitude (mm) | Motor Model | Power (kW) |
|---|---|---|---|---|---|---|---|---|---|
| YK1230 | 1 | 3.6 | 15-30 | 3-50 | ≤200 | 220 | 6-10 | Y160M-6 | 7.5 |
| 2YK1230 | 2 | 3.6 | 15-30 | 3-50 | ≤200 | 220 | 6-10 | Y160L-6 | 11 |
| YK1530 | 1 | 4.5 | 15-30 | 3-50 | ≤200 | 250 | 6-10 | Y160L-6 | 11 |
| 2YK1530 | 2 | 4.5 | 15-30 | 3-50 | ≤200 | 250 | 6-10 | Y200L1-6 | 18 |
| YK1545 | 1 | 6.75 | 15-30 | 3-50 | ≤200 | 300 | 6-10 | Y180L-6 | 18 |
| 2YK1545 | 2 | 6.75 | 15-30 | 3-50 | ≤200 | 300 | 6-10 | Y200L1-6 | 22 |
| Model | Decks | Area (m²) | Angle (°) | Mesh Size (mm) | Max Feed (mm) | Capacity (t/h) | Amplitude (mm) | Motor Model | Power (kW) |
|---|---|---|---|---|---|---|---|---|---|
| YK1845 | 1 | 8.1 | 15-30 | 3-50 | ≤200 | 350 | 6-10 | Y180L-6 | 18 |
| 2YK1845 | 2 | 8.1 | 15-30 | 3-50 | ≤200 | 350 | 10-15 | Y200L-6 | 22 |
| YK2045 | 1 | 9 | 15-30 | 6-100 | ≤200 | 450 | 10-15 | Y200L-6 | 18 |
| 2YK2045 | 2 | 9 | 15-30 | 6-100 | ≤400 | 450 | 10-15 | Y250L-6 | 22 |
| YK2060 | 1 | 12 | 15-30 | 6-100 | ≤400 | 550 | 10-15 | Y200L-6 | 18 |
| 2YK2060 | 2 | 12 | 15-30 | 6-100 | ≤400 | 550 | 10-15 | Y250L-6 | 30 |
| YK2460 | 1 | 14.4 | 15-30 | 6-100 | ≤400 | 600 | 10-15 | Y250L-6 | 22 |
| 2YK2460 | 2 | 14.4 | 15-30 | 6-100 | ≤400 | 600 | 10-15 | Y250L-6 | 37 |
The Dahan YK Series is engineered for the demands of large-scale mineral processing and aggregate production, focusing on mechanical reliability and consistent throughput.

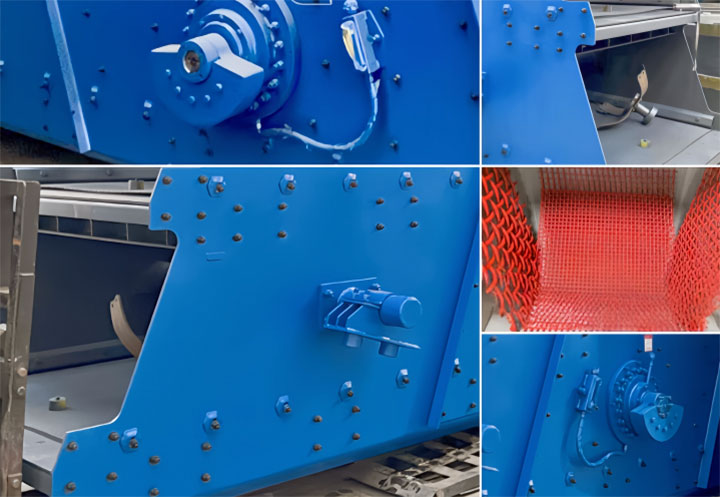

Structural Reliability: Side plates are constructed using cold-formed steel, which minimizes stress concentrations and mitigates potential cracking risks associated with traditional welded structural designs.
Precision Drive System: The single-shaft eccentric assembly ensures stable circular motion, maintaining uniform screening force and amplitude under fluctuating heavy loads.
Simplified Maintenance: Configured with modular components, the design allows safe and efficient access to high-wear parts, reducing planned maintenance downtime.
Application Flexibility: Deck angles and vibration parameters are configured to match the moisture content, abrasiveness, and particle size distribution of the specific feed material.
Optimized Vibration Isolation: Heavy-duty coil springs and high-performance dampeners isolate dynamic loads, protecting the supporting plant structure and ensuring long-term operational stability.
Screening circuits feature distinct operational parameters. The engineering team collaborates with plant operators to configure equipment dimensions and specifications to match specific material requirements.

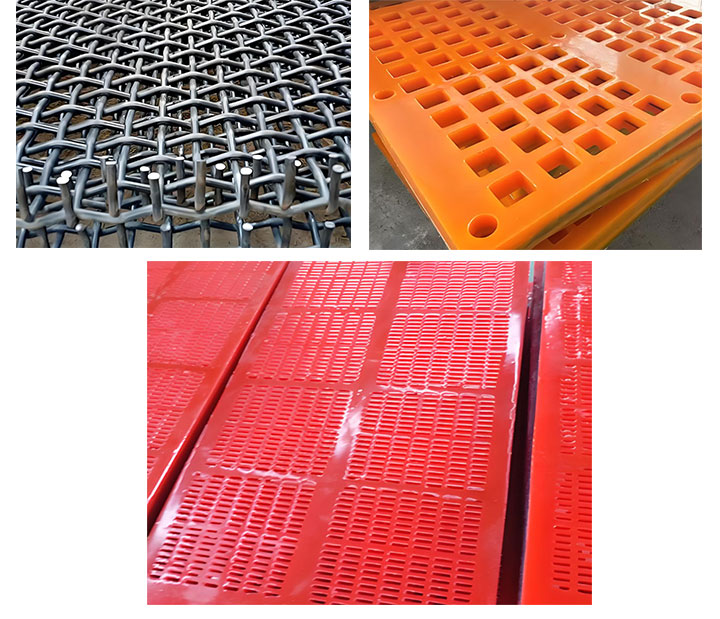

Customized Screen Media: Options include high-tensile steel wire, polyurethane, or rubber panels, selected according to feed material abrasiveness and moisture. Polyurethane panels are available to mitigate mesh blinding during high-viscosity screening.
Enhanced Wear Protection: Optional ceramic or heavy-duty rubber liners can be fitted to side plates and discharge chutes to extend operational lifespan in high-wear environments.
Environmental & Wet Screening: Dust suppression covers or specialized spray bars can be integrated for wet screening operations to manage environmental standards and material washing requirements.

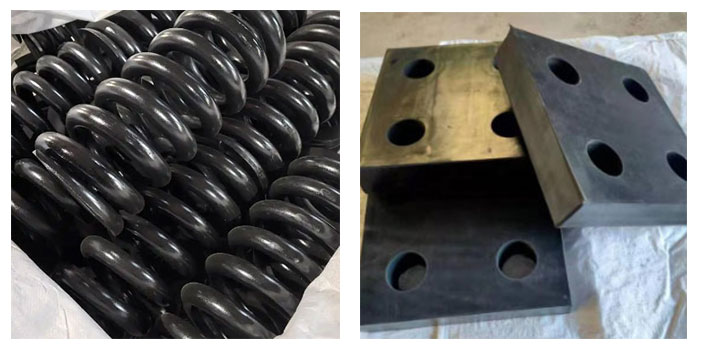

Vibration Isolation: Units are equipped with heavy-duty coil springs or rubber buffers designed to isolate dynamic forces and protect plant support structures.
Material Testing Services: Clients may submit physical product samples for laboratory evaluation. Material testing allows the engineering team to verify optimal deck angles, vibration parameters, and screen media selections prior to final manufacturing.

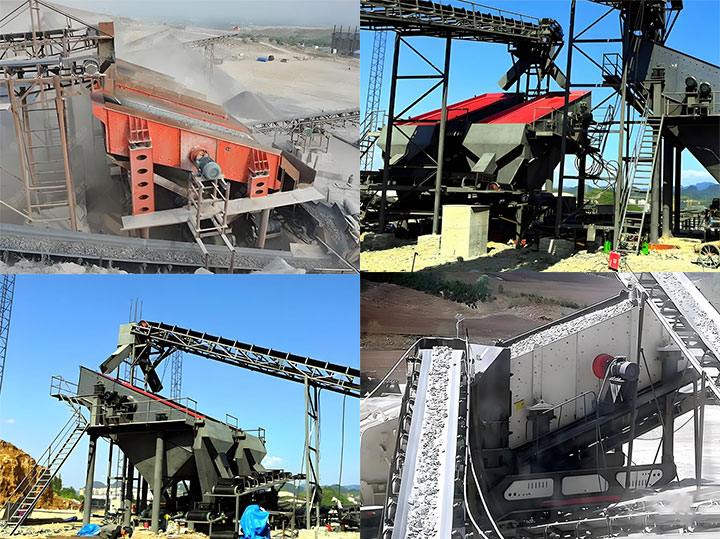

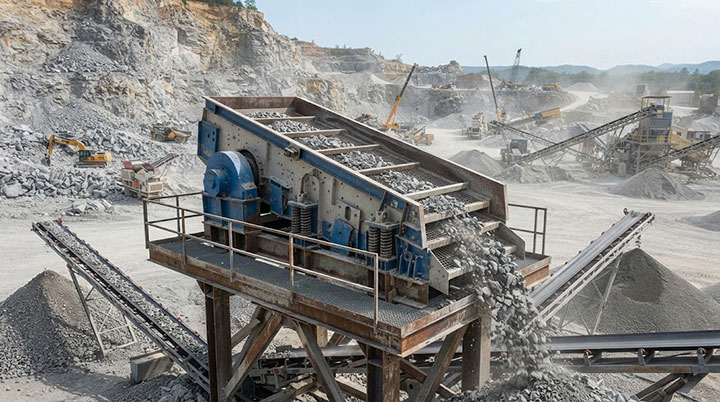

In a recent project at a large-scale limestone quarry, the facility required an upgrade to an existing screening circuit to address throughput bottlenecks and improve classification efficiency. By integrating the Dahan YK Series Inclined Vibrating Screen, the plant transitioned to a high-capacity, stable production model.
Increased Productivity: The facility achieved a 15% increase in aggregate throughput, enabling the quarry to meet rising market demands without expanding plant footprint.
Optimized Uptime: Utilizing the modular tensioning system, the operator recorded a 25% reduction in downtime required for routine screen mesh changeovers, improving operational availability.
Structural Performance: The YK Series, constructed with cold-formed steel side plates, demonstrated mechanical stability and durability under continuous, high-impact limestone processing conditions.
Typically, the recommended installation angle ranges between 15° and 25°. Engineers adjust this angle based on material flow characteristics, moisture content, and required cut-points to ensure sizing efficiency.
Inclined screens utilize deck angle and gravity to assist material flow, accelerating processing speed and throughput. This makes them efficient for high-capacity, dry or general aggregate classification compared to horizontal configurations.
Standard inventory components and common screen meshes are maintained in stock for rapid fulfillment. Custom-engineered replacement parts or specialized configurations are prioritized by the manufacturing team to minimize plant downtime.
Selection depends on feed material abrasiveness, particle size, and moisture content. High-tensile steel wire, polyurethane, and rubber panels are available, with engineering consultation provided to match the correct media to the circuit.
Need assistance selecting the correct model for your screening circuit? The Dahan engineering team is prepared to assist with custom configurations tailored to your plant infrastructure.
Work with Our Engineers: Contact our technical department for personalized support regarding equipment sizing and circuit layout.
Request a Custom Configuration: Provide your feed material specifications, and our team will design a solution to meet your target throughput and separation requirements.
Material Testing Services: Clients are invited to submit physical product samples for laboratory evaluation. Through material testing, we verify the ideal deck angle, vibration parameters, and screen media selections to ensure maximum performance upon installation.
