Lime Powder Screw Conveyor is an enclosed conveying system designed to continuously transport lime powder, hydrated lime, quicklime powder, calcium carbonate powder, and other dry fine powders. It is suitable for conveying powder between storage silos, mixers, processing equipment, and packing systems. Depending on the material and layout, the conveyor can be configured for capacities of 2–25 t/h and conveying distances of approximately 1–30 m.
The screw conveyor uses a rotating screw inside an enclosed housing to move lime powder from the inlet to the discharge point. Horizontal and inclined configurations are available according to the plant layout, while the screw diameter, motor power, conveyor length, and construction material can be selected according to the required capacity and conveying conditions. The enclosed structure also helps reduce powder leakage and dust dispersion during continuous conveying.

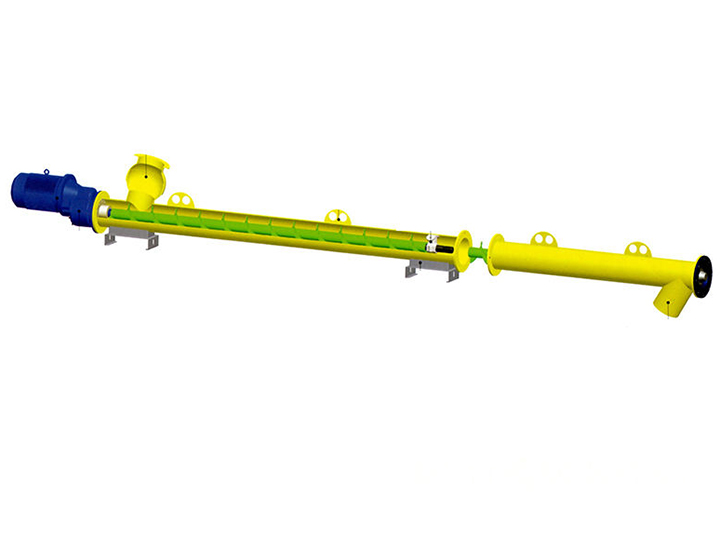

A Lime Powder Screw Conveyor works by rotating a screw shaft fitted with helical flights inside a conveyor housing. When lime powder enters through the inlet, the rotating flights push the material forward along the conveyor until it reaches the discharge outlet. The conveying speed and capacity depend on factors such as screw diameter, rotational speed, material characteristics, filling rate, and conveying angle.
For lime powder applications, the enclosed conveyor housing helps contain fine powder during transportation and reduces the amount of material exposed to the surrounding working environment. The conveyor can be arranged horizontally or at a suitable inclined angle to connect equipment such as storage silos, mixers, feeders, and packing machines.

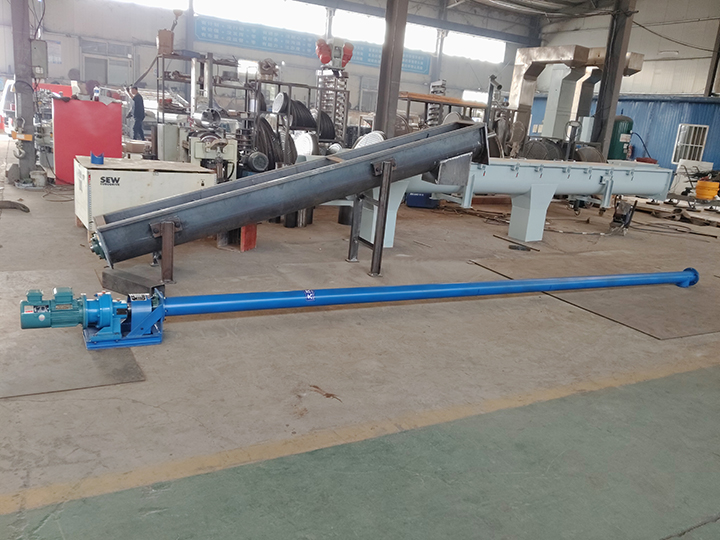

The configuration of a Lime Powder Screw Conveyor depends on the required conveying capacity, distance, installation layout, and characteristics of the lime powder. Different conveyor structures can be selected for horizontal conveying, inclined conveying, limited installation space, and applications that require a more enclosed conveying path.
U-type screw conveyor: The U-shaped housing provides convenient access for inspection and maintenance. It is suitable for many horizontal powder conveying applications where regular cleaning or maintenance is required.

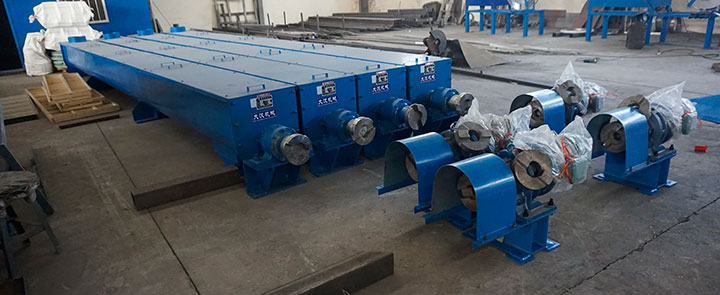

Tubular screw conveyor: A tubular housing provides a more enclosed conveying path and is suitable for dry fine powders such as lime powder. It can help reduce powder dispersion during transportation and is useful when dust control is an important consideration.

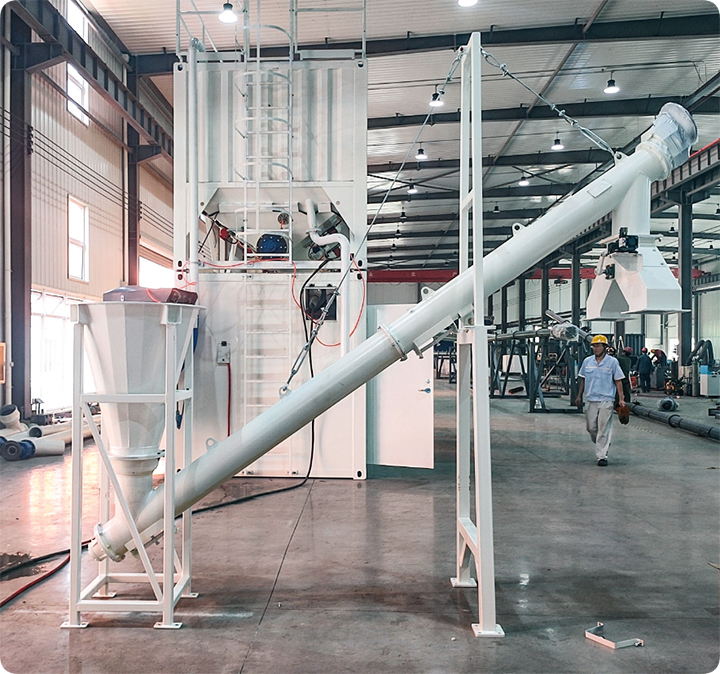

Inclined screw conveyor: An inclined configuration can be used when lime powder needs to be conveyed to a higher discharge point or when the production line requires an elevation change. The conveying capacity and motor power should be selected according to the conveying angle and material characteristics.
Vertical screw conveyor: Vertical conveying can be considered where available floor space is limited and the process requires material to move upward. The actual configuration should be determined according to the required lifting height, capacity, material properties, and equipment arrangement.
Shaftless screw conveyor: Shaftless designs are generally more suitable for sticky, wet, or easily bridging materials. For dry lime powder, a conventional shafted screw conveyor is often more appropriate, depending on the material condition and conveying requirements.
For most lime powder conveying applications, the appropriate configuration should be selected based on the actual conveying route rather than the material name alone. Capacity, conveying distance, installation angle, inlet and outlet position, and required dust control should all be considered before determining the conveyor structure.
Lime powder is a fine and dusty material, so a controlled and enclosed conveying method is important. A screw conveyor provides a continuous conveying path and can be configured according to the required capacity, conveying distance, and installation layout.
Enclosed conveying: The enclosed screw and housing help reduce powder leakage and material exposure during transportation, making the conveyor suitable for conveying lime powder between silos, processing equipment, and packing systems.
Continuous feeding: The rotating screw continuously moves lime powder from the inlet to the discharge point, making it suitable for steady feeding to mixers, feeders, packing machines, and other downstream equipment.
Flexible installation: The conveyor can be arranged horizontally or at a suitable inclined angle. Conveyor length, inlet and discharge positions, and other dimensions can be configured to fit different production line layouts, including installations beneath storage silos or between processing units.
Customizable capacity: Screw diameter, rotational speed, motor power, and conveyor length can be selected according to the required throughput, conveying distance, material characteristics, and installation conditions.
Easy integration with production lines: The screw conveyor can be connected with storage silos, mixers, feeders, packing machines, and dust collection systems to provide continuous lime powder transfer between different processing stages.
Lime Powder Screw Conveyor is mainly used for dry powder materials that can be continuously conveyed by a screw mechanism. Besides lime powder, the conveyor can be configured for hydrated lime, quicklime powder, calcium carbonate powder, fly ash, cement powder, and other similar dry powders. The actual conveyor configuration should be selected according to material characteristics, required capacity, conveying distance, and installation conditions.
| Material | Typical Conveying Consideration | Common Application |
| Lime Powder | Fine, dry powder; enclosed conveying is useful for dust control | Silo and process transfer |
| Hydrated Lime | Fine powder; conveying configuration should match material flowability | Feeding and process conveying |
| Quicklime Powder | Dry powder; conveyor configuration depends on capacity and conveying route | Storage and processing systems |
| Calcium Carbonate Powder | Fine dry powder; screw size and speed should match required throughput | Powder processing lines |
| Fly Ash and Cement Powder | Dry powder; enclosed conveying helps contain material during transfer | Building material and industrial systems |
The following specifications provide a preliminary reference for selecting a Lime Powder Screw Conveyor. Actual capacity can vary according to material bulk density, feeding condition, conveying angle, screw speed, and other operating conditions.
| Model | Screw Diameter | Capacity | Conveying Distance | Power |
| LS150 | 150 mm | 2–6 t/h | 1–10 m | 2.2 kW |
| LS200 | 200 mm | 5–10 t/h | 3–15 m | 3 kW |
| LS250 | 250 mm | 8–15 t/h | 5–20 m | 4 kW |
| LS300 | 300 mm | 15–25 t/h | 10–30 m | 5.5 kW |
The available models cover different conveying capacities and distances, but the model should not be selected by capacity alone. Material characteristics, installation angle, feeding method, discharge height, and required operating conditions should also be considered before finalizing the conveyor configuration.
The right Lime Powder Screw Conveyor should be selected according to the required capacity, conveying distance, installation angle, and material characteristics. The feeding and discharge arrangement should also be considered when determining the final configuration.
Capacity and screw size: Required throughput affects the screw diameter, rotational speed, and motor power. The actual operating capacity should be used as the basis for selection rather than the maximum rated capacity.
Conveying distance and angle: The distance between the inlet and discharge point, together with the installation angle and discharge height, affects the conveyor configuration and power requirements. The available LS models cover conveying distances of approximately 1–30 m.
Material characteristics: Bulk density, particle size, moisture, and flowability can vary between different lime powders and should be considered when determining the screw configuration and operating conditions.
Construction and connection: Carbon steel or stainless steel can be selected according to the working environment and material requirements. The inlet and outlet dimensions should also match connected equipment such as storage silos, mixers, feeders, or packing machines.
For a suitable configuration, provide the lime powder type, required capacity, conveying distance, installation angle, feeding method, discharge height, and construction material. These details help determine the appropriate screw diameter, motor power, conveyor length, and overall configuration.
The Lime Powder Screw Conveyor is used for continuous transfer of dry lime powder between different stages of a processing or storage system. Its enclosed conveying structure makes it suitable for applications where fine powder needs to be moved between equipment while limiting material exposure and dust dispersion.

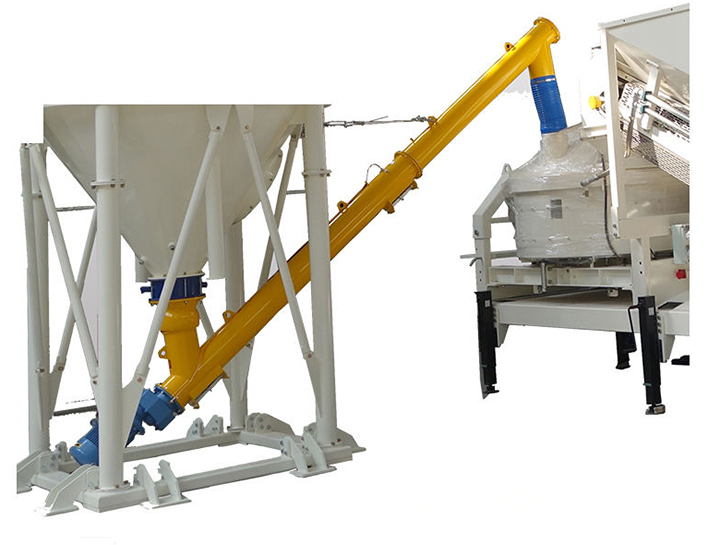

Silo to processing equipment: The conveyor can transfer lime powder from storage silos to mixers, reactors, feeders, or other processing equipment. The inlet and discharge arrangement can be configured to match the connected equipment.
Silo to packing system: For powder packing lines, the screw conveyor can provide continuous transfer from a storage or feeding system to the packing equipment. The enclosed housing helps contain fine powder during conveying.
Powder feeding systems: The conveyor can also be used to feed lime powder into a production process at a controlled and continuous rate. The screw diameter and operating speed can be selected according to the required feeding capacity.
Building material and chemical processing: Lime powder is commonly handled in building material, mineral processing, and chemical production systems. The screw conveyor can be integrated with silos, mixers, dust collection equipment, and other material handling equipment according to the process layout.
The final conveyor arrangement depends on the material condition, required capacity, conveying distance, installation angle, and connection points of the production line.
To recommend a suitable Lime Powder Screw Conveyor and prepare an accurate quotation, several basic operating and installation details are required. Providing the following information can help determine the conveyor size, motor power, length, and overall configuration.
Material: Provide the type of lime powder, and if available, its bulk density, particle size, moisture content, and flowability.
Capacity: Specify the required conveying capacity, such as t/h or kg/h. This is one of the main factors used to determine the screw diameter and operating speed.
Conveying distance: Provide the required horizontal or inclined conveying distance. For inclined conveying, also provide the approximate lifting height or installation angle.
Inlet and discharge conditions: Provide the feeding point, discharge point, inlet height, discharge height, and connection dimensions if available. A simple layout drawing or equipment dimensions can also be helpful.
Construction requirements: Specify whether carbon steel or stainless steel is preferred and whether there are any special requirements for the working environment or powder handling process.
With the material, capacity, conveying distance, installation conditions, and connection information, Dahan can recommend a suitable Lime Powder Screw Conveyor configuration and provide the corresponding technical and quotation details.
Request a Lime Powder Screw Conveyor Quote
A Lime Powder Screw Conveyor continuously transports dry lime powder between silos, mixers, feeders, packing machines, and other processing equipment. Its enclosed structure helps reduce powder leakage and dust dispersion.
Yes. It can be configured for lime powder, hydrated lime, quicklime powder, and similar dry powders. The conveyor should be selected according to the material's density, moisture, particle size, and flowability.
Selection mainly depends on capacity, conveying distance, installation angle, material characteristics, and connection conditions. These details determine the suitable screw diameter, motor power, conveyor length, and configuration.
