PVC Auger Feeder

Introduction of PVC Auger Feeder

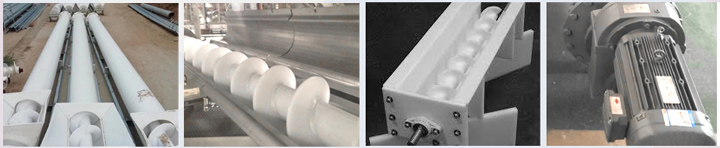

The PVC auger feeder is composed of polypropylene plastic spiral blades and corrosion-resistant and non-deformable polypropylene pipes. It has a fast fecal removal speed, saves time and effort, is well sealed, and cleans the feces. The user can lift or pull the feces out of the shed without leaving the shed. On the dung car. Corrosion resistance, easy maintenance, long service life, can be customized according to the customer's site.

Working Principle of PVC Auger Feeder

The motor drives the screw shaft to rotate forward. After the material enters the PVC auger feeder, it moves forward with the displacement direction of the screw blade rotation. During this process, the gravity of the material itself and the friction between the screw feeder casing and the material and other forces , To promote the continuous conveying of materials with the spiral blades for a long time; generally, if the conveying distance is long, a hanging bearing will be added to the middle of the spiral shaft to ensure that the equipment has sufficient power for material conveying.

Benefits of PVC Auger Feeder

1. The use of plastic pp material can ensure that the materials are not easily corroded by acid and alkaline materials during the transportation process and have a long service life.

2. It can be loaded and unloaded in the middle, with high speed, fast and clean dung removal. Users can lift the dung out of the shed or pull the dung truck without leaving the shed.

3. The conveying capacity can reach 142 cubic meters per hour, and the conveying length of a single machine can reach 60 meters.

4. The conveying direction is reversible, and it can also be conveyed in the opposite direction at the same time. During the conveying process, the materials can be stirred, mixed, added and cooled.

5. Good airtightness, which can prevent the odor from spilling during the transportation process, and the feces are not easy to spill out, and improve the cleanliness of the farm space.

Technical Parameters of PVC Auger Feeder

Model		Diameter (mm)	Pitch (mm)	Rotating speed (r/min)	Capacity (m³/h)	Rotating speed (r/min)	Capacity (m³/h)	Rotating speed (r/min)	Capacity (m³/h)	Rotating speed (r/min)	Capacity (m³/h)
Small	100	100	100	140	2.2	112	1.7	90	1.4	71	1.1
	125	125	125	125	3.8	100	3	80	2.4	63	1.9
	160	160	160	112	7.1	90	5.7	71	4.5	56	3.6
	200	200	200	100	12.4	80	9.9	63	7.8	50	6.2
Small	250	250	250	90	21.8	71	17.2	56	13.6	45	10.9
	315	315	315	80	38.8	63	30.5	50	24.2	40	13.4
	400	400	355	71	62.5	56	49.3	45	38.6	36	31.7
Large	500	500	400	63	97.7	50	77.6	40	62	32	49.6
	630	630	450	50	138.5	40	110.8	32	88.6	25	69.3
	800	800	500	40	198.5	32	158.8	25	124.1	20	99.3

Application of PVC Auger Feeder

PVC auger feeder is mainly used in chicken farms, duck farms, pig farms, cattle farms and other machines used to process animal manure. Used to replace manual cleaning, it can reduce labor intensity and improve the cleanliness of the farm space. Moreover, even if the manure is processed, the incidence of diseases in poultry and livestock can be reduced.
