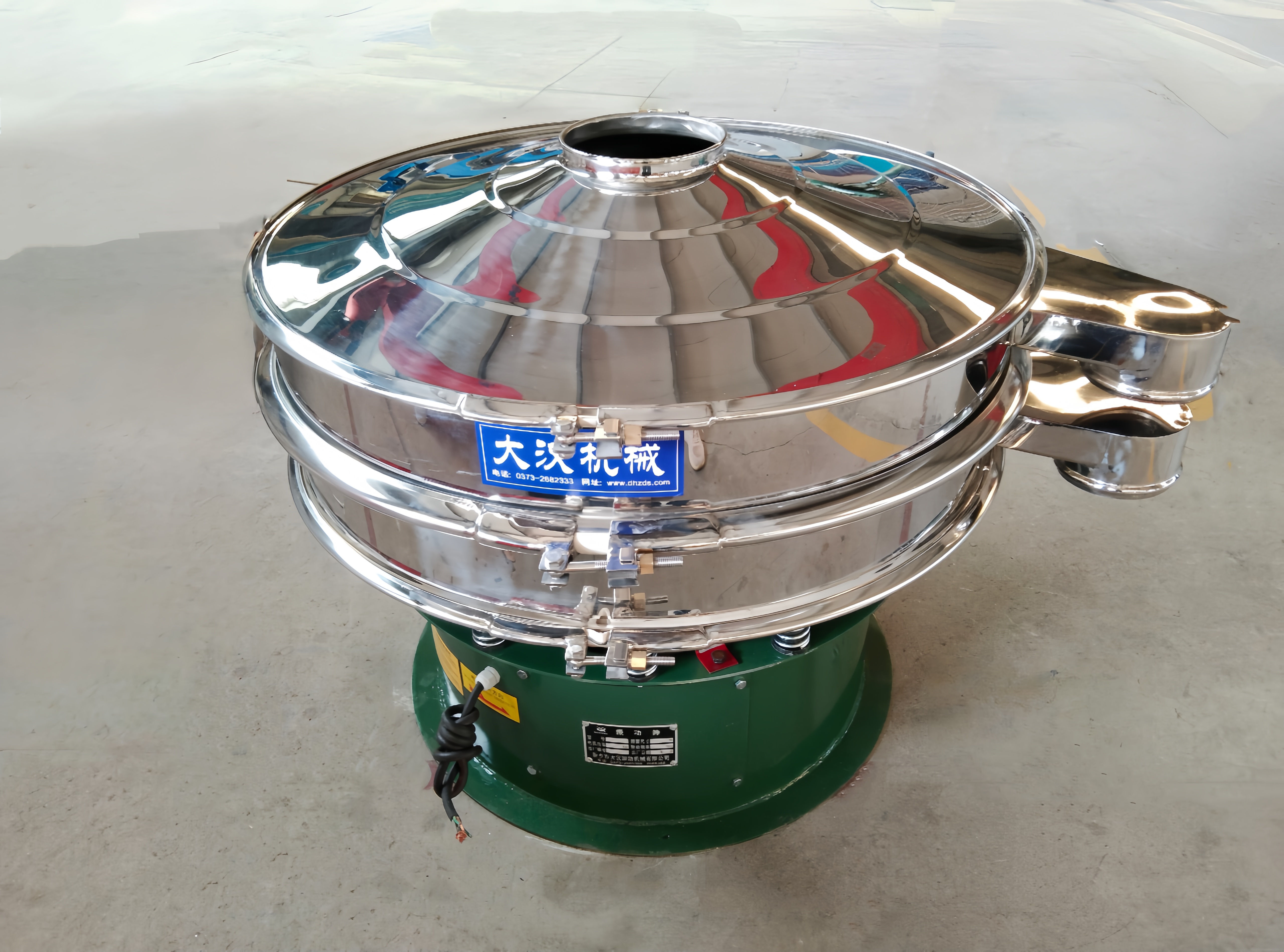

Abrasive Particle Vibrating Screen

Abrasive Particle Vibrating Screen is used for precise classification and impurity removal of abrasive particles. A vertical vibrating motor generates excitation force, causing the abrasive particles to continuously jump, tumble, and loosely stratify on the screen surface, thus achieving through-screening. It solves the problems of abrasive particle classification, impurity removal, and screening. It is adaptable to abrasive particles of different mesh sizes and hardness, supports 10-500 mesh screening, and has a screen diameter of up to 2 meters. It can also be equipped with an ultrasonic system to handle the screening of ultrafine abrasive powders. The hourly output can easily reach 10 tons. It supports production line workflow operation and non-standard customization, and can be customized for production in conjunction with upstream and downstream equipment.

What are the main functions of the Abrasive Particle Vibrating Screen?

The core function of the Abrasive Particle Vibrating Screen is to achieve high-precision particle size classification and impurity separation of abrasive particles. It can strictly classify mixed materials into different grades according to particle size, ensuring uniform particle size distribution; simultaneously, it removes dust, overly coarse particles, and broken foreign objects, thereby effectively controlling the particle size distribution range.

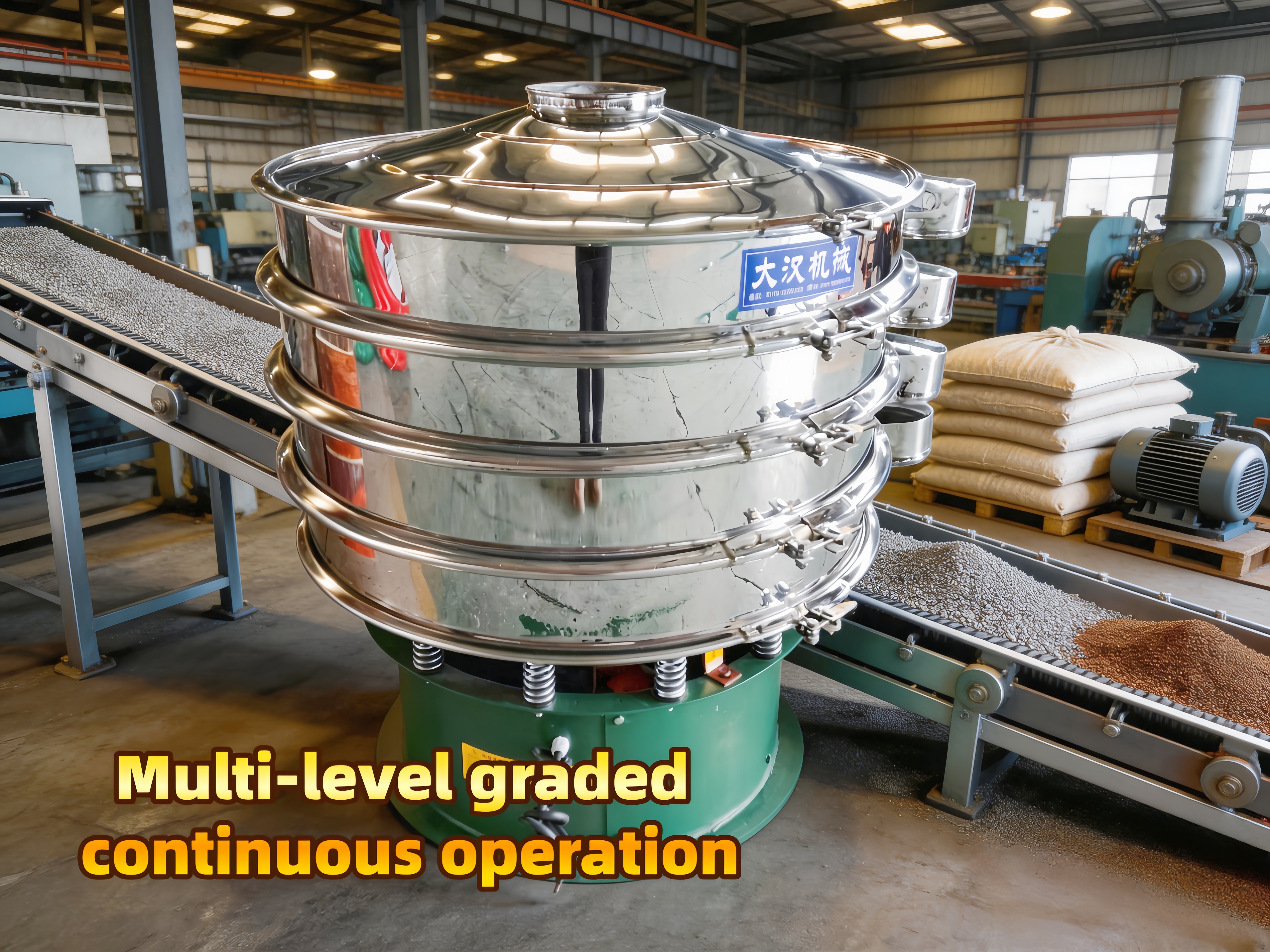

Multi-layer classification: It can precisely classify abrasive particles into coarse, medium, and fine grades according to production needs, meeting the requirements of different application scenarios.

Impurity removal and purification: It quickly filters impurities, dust, and substandard particles from abrasives, improving the purity of abrasive products.

Continuous operation: The product supports 24-hour uninterrupted operation, adapting to different production capacity requirements, balancing screening efficiency and accuracy, and adapting to diverse production scenarios in the abrasive industry.

Quality improvement: By installing screens of varying mesh sizes, it can simultaneously classify and remove impurities from abrasive particles, separating standard particles and dust from the abrasive mix.

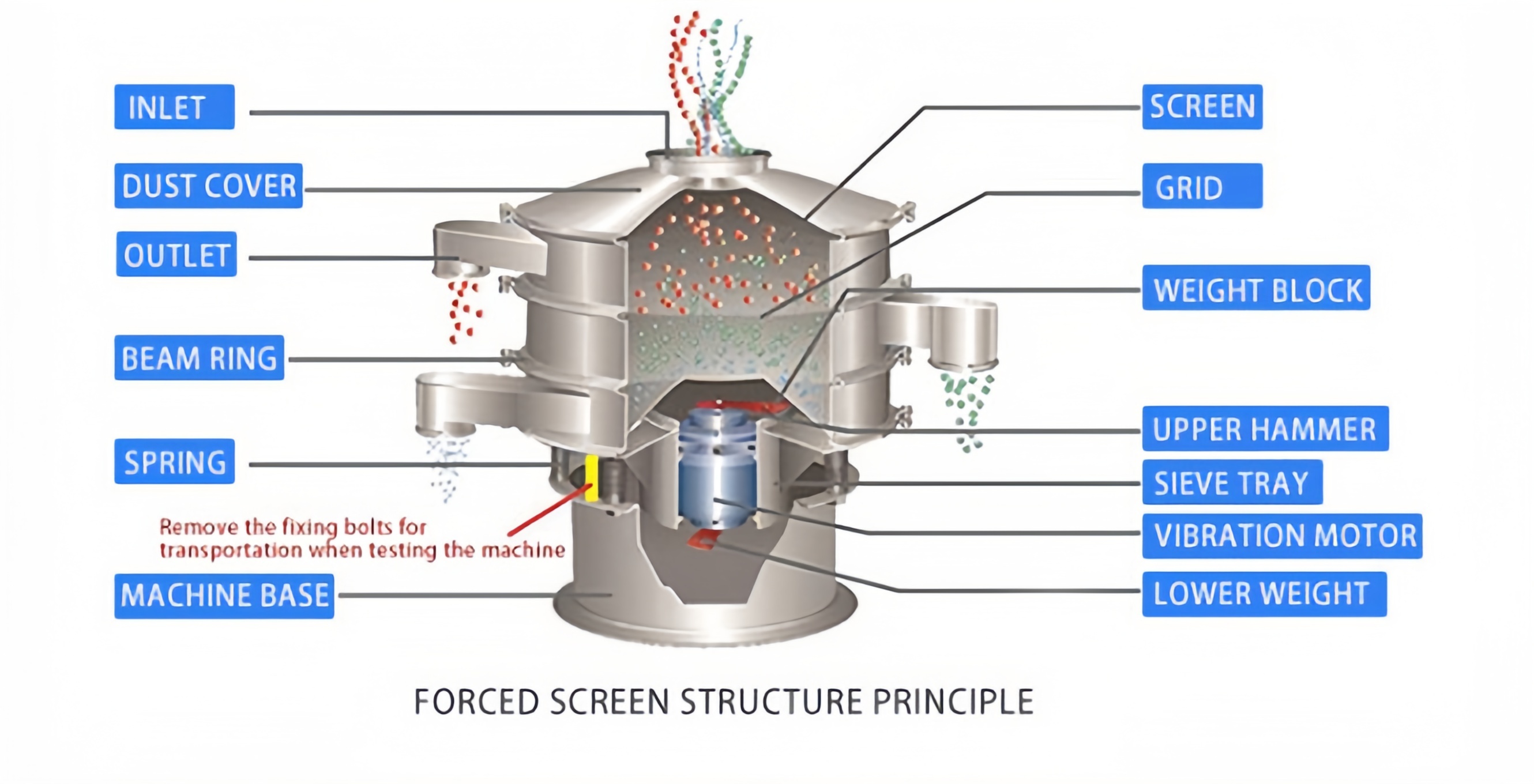

Abrasive Particle Vibrating Screen Structure

The Abrasive Particle Vibrating Screen features a compact and rational structural design, consisting of a screen box, screen mesh, shock-absorbing springs, base, and discharge port. These components work together to ensure effective screening. The screen box employs a sealed design to prevent abrasive dust from spilling out and enhances the equipment's wear resistance. A high-quality vertical vibrating motor is used as the vibration source, providing stable power for screening. The screen mesh is made of wear-resistant material based on the abrasive characteristics and can be replaced with different mesh sizes as needed. The shock-absorbing device effectively reduces vibration during operation, lowers noise, and extends the equipment's lifespan. The base is welded with thickened steel to ensure stable operation. Multiple interfaces are designed for grading requirements, enabling the separate collection of abrasives of different specifications.

Abrasive Particle Vibrating Screen Working Principle

The Abrasive Particle Vibrating Screen operates based on the three-dimensional vibration principle. Its core mechanism involves a vertical vibrating motor driving an eccentric weight to rotate, converting the motor's rotational motion into a composite vibration in three directions: horizontal, vertical, and inclined, which is then transmitted to the screen surface. After entering the screen surface through the feed inlet, the abrasive particles undergo stratification based on particle size and density under the action of combined vibration. Fine particles fall into the lower layer through the screen mesh, while coarser particles remain in the upper layer, ultimately completing the classification through different outlets.

Abrasive Particle Vibrating Screen Technical Parameters

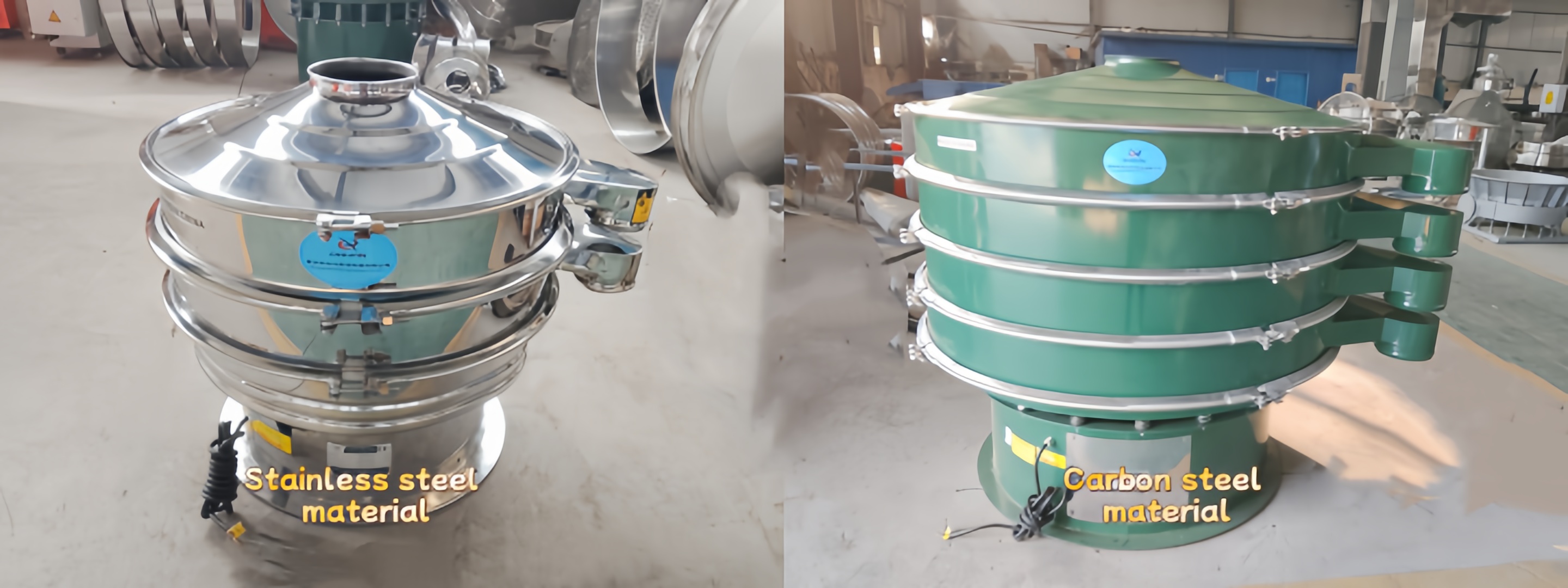

Abrasive Particle Vibrating Screen Sales Types

Our factory's abrasive particle vibrating screens are mainly divided into two categories according to material: stainless steel and carbon steel. The stainless steel type has excellent corrosion resistance and wear resistance, suitable for handling acidic, alkaline, or high-cleanliness abrasives; the carbon steel type has a robust structure and economical cost, suitable for conventional abrasives and general production environments. Users can flexibly choose according to the chemical properties of the abrasive, hygiene standards, and budget.

Stainless Steel Type: Constructed from 304 or 316L stainless steel, it boasts excellent corrosion resistance, wear resistance, and hygiene. It is rust-resistant, effectively preventing abrasive contamination, and is suitable for screening high-purity, high-requirement abrasives. It is also suitable for humid and highly corrosive production environments, with low maintenance costs and a long service life.

Carbon Steel Type: Welded from high-quality carbon steel, it features a robust structure, high cost-effectiveness, good load-bearing capacity, and impact resistance. Suitable for screening ordinary abrasives, it is suitable for dry, non-corrosive production environments. The carbon steel type has a lower manufacturing cost, making it suitable for small and medium-sized enterprises with limited budgets and lower requirements for abrasive purity.

What types of abrasive particles can the Abrasive Particle Vibrating Screen screen screen?

The Abrasive Particle Vibrating Screen can quickly screen three main categories of abrasive particles: coarse, medium, and fine. Through a multi-layer screen combination, it completes multi-stage separation in one pass, meeting the screening needs of different particle size specifications.

Coarse abrasive: Mesh size ranges from 4 to 40 mesh. Common abrasives include coarse brown fused alumina, coarse white fused alumina, coarse silicon carbide, and coarse quartz sand. These abrasive particles are large and hard, mainly used for rust removal on metal surfaces, stone grinding, and architectural sandblasting.

Medium abrasive: Mesh size ranges from 46 to 100 mesh. Common abrasives include medium-sized brown fused alumina, white fused alumina, silicon carbide, and garnet. These abrasive particles have a moderate balance of hardness and fineness, mainly used for tool sharpening, furniture polishing, and precision metal surface finishing.

Fine abrasive: Mesh size ranges from 120 to 240 mesh. Common abrasives include fine brown fused alumina, fine white fused alumina, and micronized silicon carbide. These abrasive particles are small and fine-textured, mainly used for precision instrument grinding, electronic component polishing, and high-end coating materials.

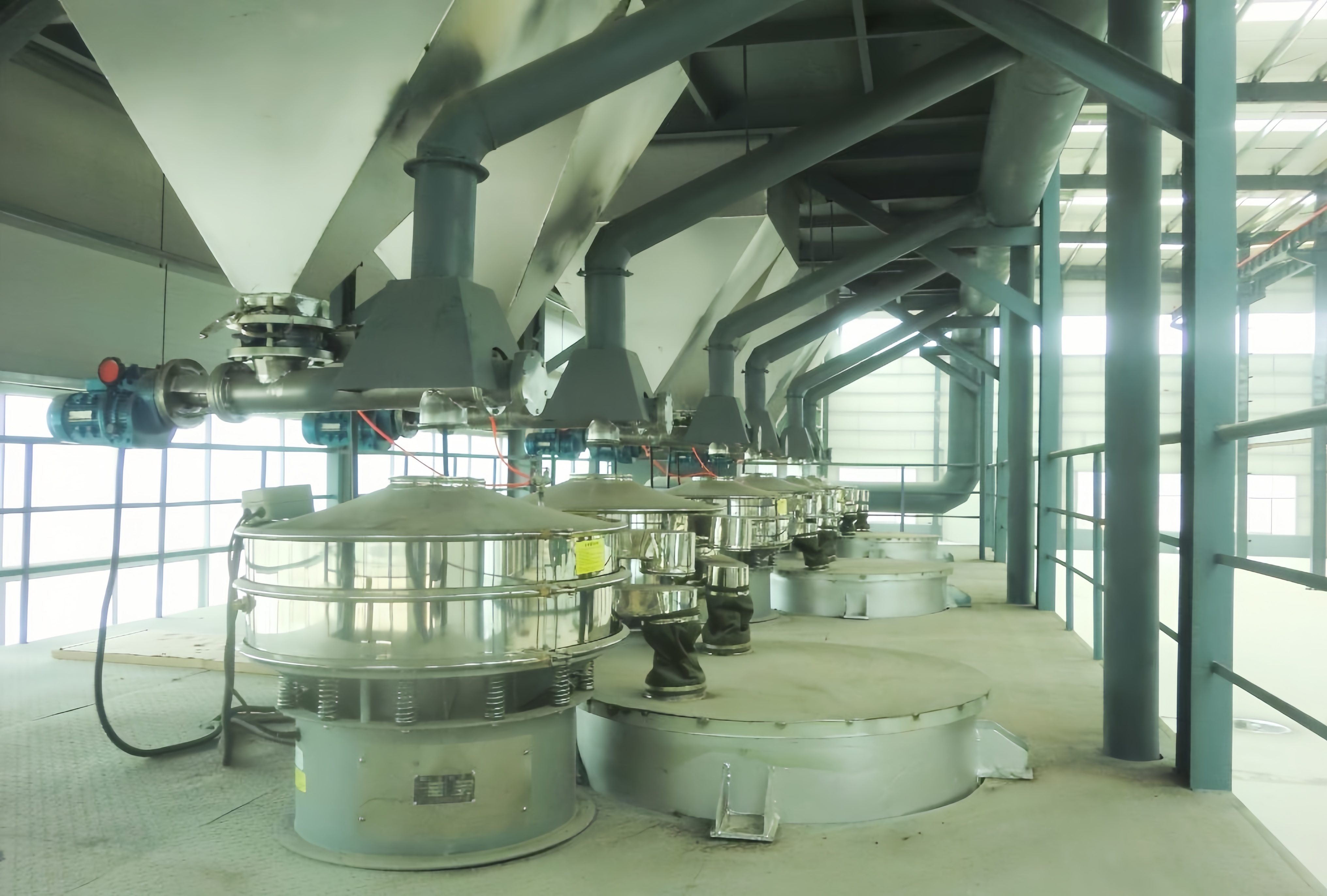

Abrasive Particle Vibrating Screen Customer Case

A large abrasive manufacturer, primarily producing brown fused alumina and white fused alumina, previously used traditional vibrating screens for screening. This resulted in frequent screen clogging, insufficient grading accuracy, and an excessively high proportion of coarse and fine particles mixed in, severely impacting product quality and production efficiency, and hindering the company's large-scale development. After purchasing our abrasive particle vibrating screen (stainless steel type, suitable for multi-mesh screening), a double-layer screen structure was customized to meet their production needs, enabling simultaneous grading of coarse and medium particles. After the equipment was put into operation, screening efficiency increased by 30%, the grading accuracy of coarse, medium, and fine particles reached over 99%, and the screen clogging problem was completely resolved, eliminating the need for frequent shutdowns for cleaning.

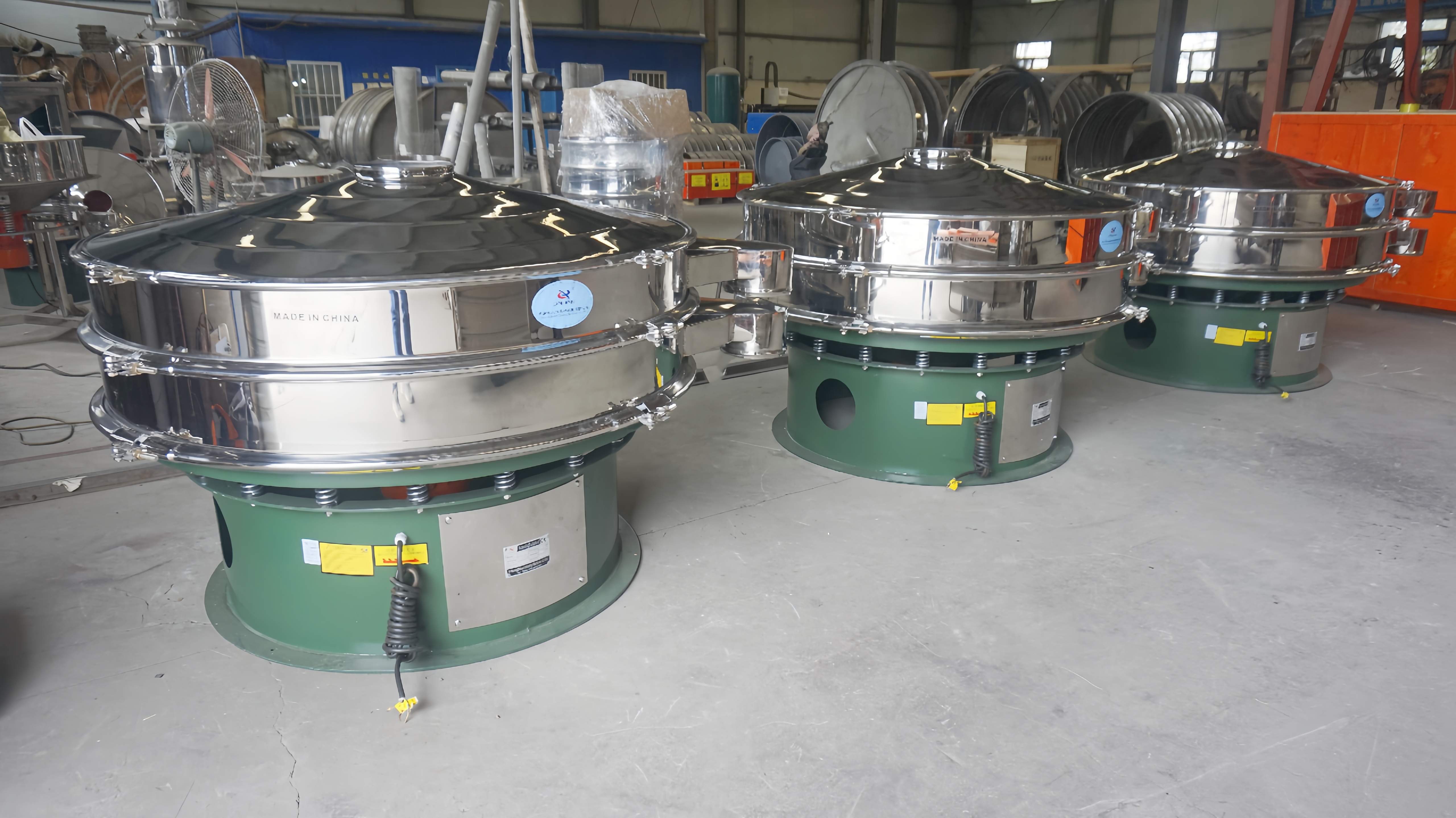

Abrasive Particle Vibrating Screen Manufacturer

Dahan Vibration Machinery is a source manufacturer integrating R&D, production, and sales of Abrasive Particle Vibrating Screens. Leveraging years of industry experience and technological accumulation, we have built a complete production system and quality inspection process. We offer rotary vibrating screens in both stainless steel and carbon steel. The core components of our equipment are made of high-quality materials and undergo rigorous testing to ensure wear resistance, stable operation, and long service life. We have a professional R&D team that can tailor screening solutions according to customers' abrasive characteristics, production capacity requirements, and mesh size requirements. We also provide full-process services including pre-sales consultation, factory commissioning, after-sales technical training, and spare parts supply, quickly responding to customer needs and solving screening problems. Our products are sold worldwide, serving thousands of abrasive production companies.

As a core screening device in the abrasive production process, the Abrasive Particle Vibrating Screen effectively solves many pain points of traditional screening equipment with its accurate grading capabilities, rapid processing efficiency, and strong wear resistance. It is suitable for screening different mesh sizes and types of abrasive particles, from coarse to fine.
