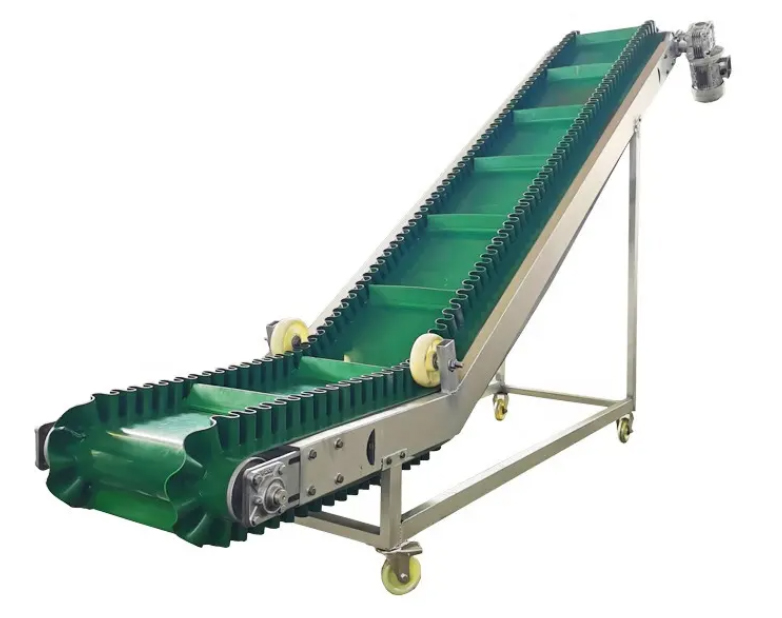

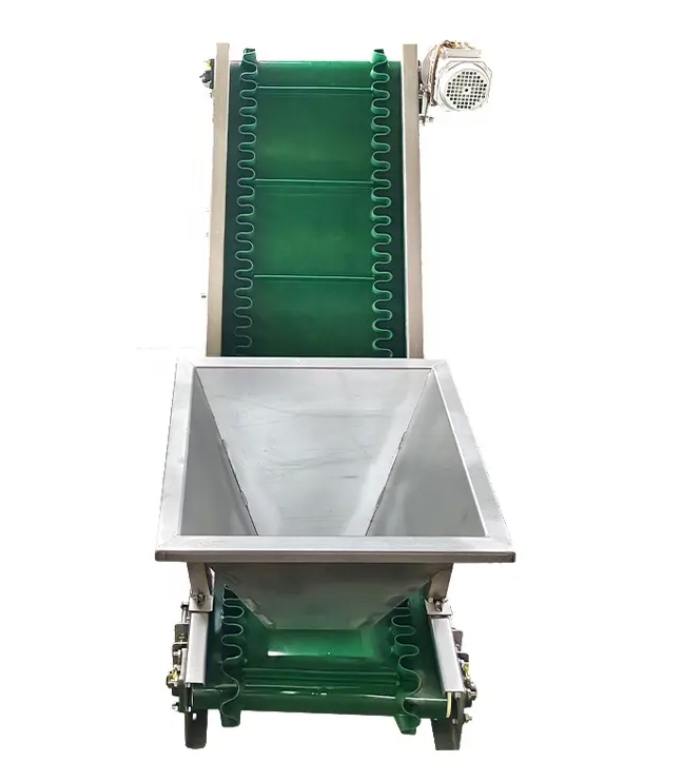

Corrugated Sidewall Conveyor Belt is used for conveying granular, powdery and small block materials. Its structure consists of a base belt, corrugated sidewalls and a transverse partition, which can effectively prevent material leakage and backslip, and achieve stable conveying within the range of 0° to 90°. It is especially suitable for vertical or nearly vertical height difference conveying conditions. According to different process requirements, the conveyor belt width can be customized from 500mm to 1600mm, the conveying distance can reach 5 to 50 meters, and the processing capacity of a single device can reach 50 to 800 tons per hour.
Corrugated Sidewall Conveyor Belt has many significant advantages. First of all, in terms of conveying angle, the maximum inclination angle of traditional flat belt conveyors usually does not exceed 20°, while the corrugated sidewall conveyor belt can achieve conveying within the range of 0° to 90°, which greatly saves space and is especially suitable for installation environments with limited plant area or complex terrain. Secondly, the sealing is strong, and the combined structure of the sidewall and the partition effectively prevents the material from being scattered during operation. It is suitable for a variety of materials such as powder, granular, and small blocks. In addition, the conveyor belt has a wide range of applicability and is suitable for complex working conditions such as normal temperature, high temperature, oil resistance, acid and alkali resistance, and the base belt can choose different wear-resistant, heat-resistant, and flame-retardant materials. In terms of conveying methods, the corrugated sidewall conveyor belt can be used for open conveying, which is convenient for observation and maintenance; it can also be designed as a closed conveying, which effectively controls dust and odor, and is suitable for production environments with high environmental protection requirements.
Corrugated Sidewall Conveyor Belt is mainly composed of three parts: base belt, corrugated sidewall and transverse partition.
Base belt: As the main part of load-bearing and traction, it usually adopts a multi-layer canvas, wire rope or EP cloth structure with good tensile strength and flexibility.
Corrugated sidewalls: Fixed on both sides of the base belt, shaped like waves, can effectively prevent material leakage, and play a "blocking" role when climbing or conveying vertically.
Cross-partitions: Installed vertically or obliquely in the middle of the base belt, used to fix and support bulk materials, so that they remain stable during transportation and prevent sliding or rolling. According to the angle requirements, cross-partitions can be divided into T-type (inclined conveying) and TC-type (vertical conveying).
Corrugated Sidewall Conveyor Belt is widely used in industries with high requirements for material conveying angles, spatial layout and sealing, especially in coal, electricity, metallurgy, cement, chemical industry, ports, grain and other fields. In coal mines and power plants, it can be used to transport coal from the ground to boiler hoppers or silos to achieve vertical or large-angle transportation. In the building materials industry, it is suitable for conveying heavy materials such as limestone and cement clinker; at ports and docks, it is often used for the rapid loading and unloading of bulk materials such as grain, fertilizers, and ores; in the chemical and metallurgical industries, it is suitable for sealed conveying of powdered or corrosive materials.
