How to Choose a Laboratory Sieve Shaker for Particle Analysis — Key Factors & Tips

In particle size analysis (PSA), getting reproducible and accurate gradation results depends heavily on the laboratory sieve shaker you use. Whether you are testing aggregates, chemical powders, or pharmaceutical granules, choosing the wrong shaking mechanism can lead to blinded screens, skewed data, and failed quality audits. This guide aims to give you an engineer’s breakdown of how to select the right laboratory test sieve shaker for your specific application.

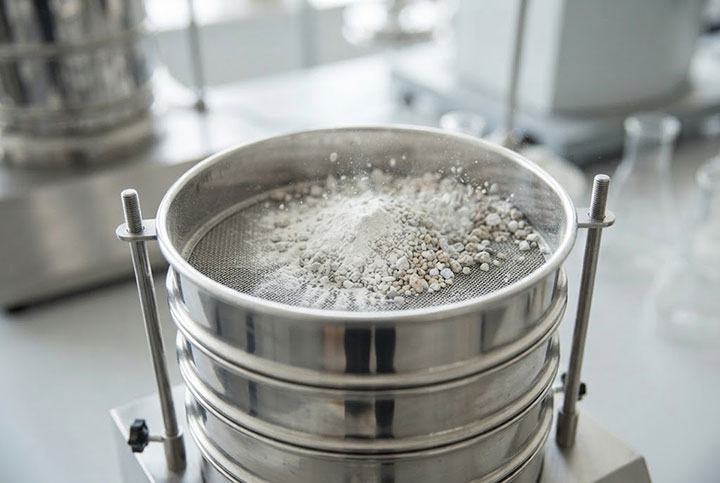

Close-up view of fine chemical powder and aggregate granules being actively agitated and separated on the wire mesh of a Dahan laboratory test sieve shaker.

Understand Your Material Characteristics

Before looking at machine types, your material's physical behavior dictates how it must be agitated. Evaluating these parameters prevents costly misfits:

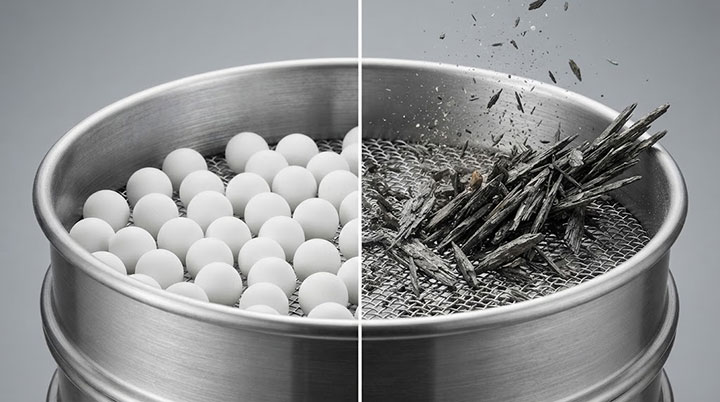

Split-screen close-up of a Dahan laboratory sieve shaker showing spherical ceramic beads (left) passing through the mesh easily versus elongated and flaky aggregate particles (right) causing blinding on the standard wire mesh.

Particle Size Range & Distribution: Coarse aggregates (above 5mm) and fine powders (down to 20 microns) require vastly different energy inputs. Ensure the shaker can handle your specific cut-off points without overloading or under-agitating the sample bed.
Particle Morphology (Shape Matters): Spherical particles drop through mesh openings easily under basic vibration. However, elongated, flaky, or needle-like particles tend to wedge into square apertures, causing blinding. For irregular shapes, you need a machine that introduces vertical motion or tapping action to force particle re-orientation.

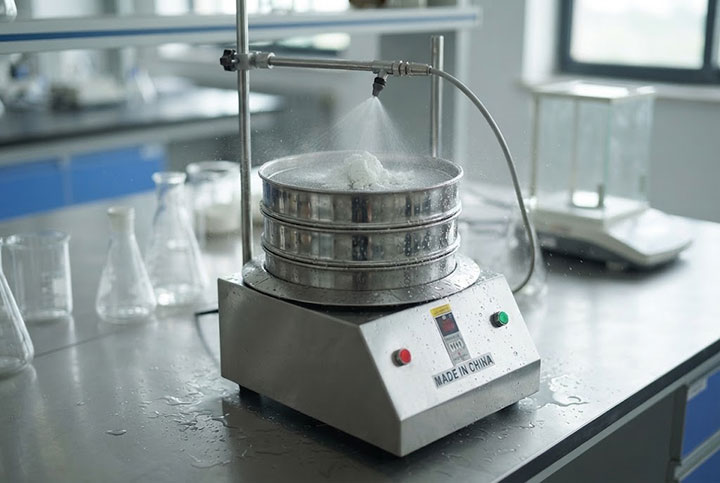

An operating Dahan stainless steel laboratory sieve shaker on a lab bench, with a dedicated wet sieving attachment and spray nozzle actively washing a clumped white powder sample.

Moisture and Flowability: Dry powders that agglomerate due to static or residual moisture will yield distorted test results. If your material is prone to clumping, determine whether your workflow requires a dry sieving setup with flow aids or a dedicated wet sieving configuration.

Match the Sieve Shaker Agitation Mechanism

Different drive mechanisms interact with test sieves in distinct ways. Selecting the proper action type is critical for separation efficiency. The comparison below outlines the ideal applications for each type:

Watch the Dahan laboratory sieve shaker equipment in operation.

Mechanism Type	Action Principle	Best Applications
Mechanical Tapping (Tap-Type)	Combines side-to-side circular motion with a vertical mechanical tap on top of the stack.	Heavy bulk materials, construction aggregates, and dense near-mesh particles.
Electromagnetic & 3D Vibratory	Projects sample in a 3D throwing motion with simultaneous rotation; no mechanical friction parts.	Fine mineral powders, chemicals, and pharmaceutical granules.
Sonic Sieve Shakers	Uses a vertical column of oscillating air waves without direct mechanical impact on frames.	Ultra-fine powders down to the sub-micron range.

Key Technical Specifications to Evaluate

Beyond basic operation types, evaluating specific hardware metrics ensures long-term testing reliability and laboratory compatibility:

Watch the Dahan laboratory electromagnetic sieve shaker in action.

Sieve Frame Compatibility: Verify that the clamping assembly accommodates your standard test sieve diameters (such as 200mm, 300mm, 8-inch, or 12-inch) and supports both full-height and half-height frames securely without adapter leaks.
Amplitude and Frequency Control: Precise control over vibration intensity is mandatory. Digital controllers allowing fine adjustments of amplitude and pulse frequency prevent sample degradation while ensuring complete particle stratification across every sieve level.
Clamping System & Ease of Operation: Look for quick-release clamping rods or threaded securing lids. A robust, evenly distributed clamping mechanism prevents sample loss during operation and stops frame deformation caused by uneven manual tightening.
Noise Level & Acoustic Protection: Continuous mechanical vibration generates significant workplace noise. Assess whether the unit features sound-dampening engineering or compatibility with acoustic enclosures to maintain a safe, compliant, and comfortable laboratory environment.

Laboratory Compliance: Calibration, Documentation & Traceability

International Testing Standards

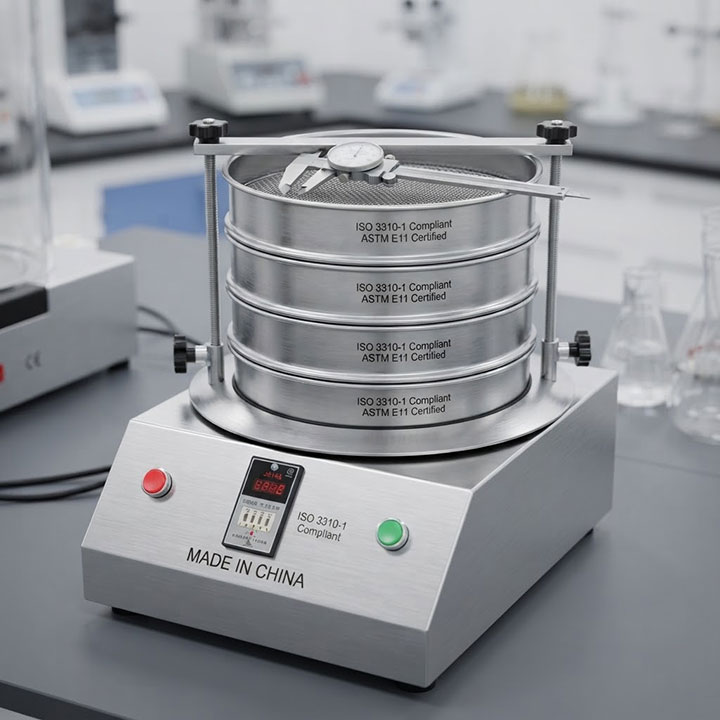

Close-up of a Dahan stainless steel laboratory sieve shaker displaying laser-etched 'ISO 3310-1 Compliant' and 'ASTM E11 Certified' markings on its base and top sieve, with a calibration caliper resting nearby on the mesh.

Ensure your sieve shaker and matching test sieves comply with recognized global standards such as ASTM E11 or ISO 3310. Compliance guarantees that your particle size distribution data is legally defensible and universally accepted. Using non-compliant test media often leads to rejected batches, failed customer audits, and costly re-testing cycles.

Amplitude Calibration & Data Logging

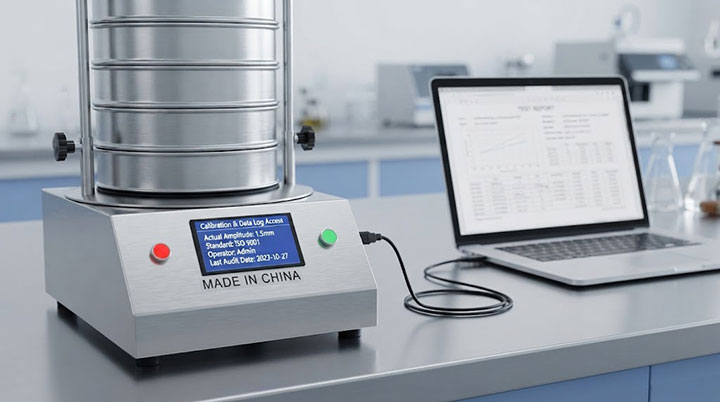

A detailed view of the advanced digital control panel on a Dahan laboratory sieve shaker, showing 'Calibration & Data Log Access' menu with ISO 9001 parameters, connected via USB to a laptop displaying an automated test report.

Advanced testing protocols require proof of consistent energy input. Look for units equipped with digital microprocessors that monitor actual vibration amplitude, store test parameters, and support quality audit traceability. This capability eliminates manual logging errors and provides verifiable proof that your testing environment meets strict ISO 9001 requirements.

Total Cost of Ownership: Maintenance & Sieve Lifespan

When calculating the true investment value of a laboratory sieve shaker, purchase price is only part of the equation. Long-term operational costs heavily depend on hardware durability:

Preventing Premature Sieve Wear: Inferior clamping systems or uncontrolled vibrations can cause test sieves to rattle loosely, leading to distorted frame edges, worn-out mesh wires, and frequent replacements of expensive brass or stainless steel test sieves. A stable, precision-engineered locking mechanism protects your consumables.
Mechanical Reliability & Service Life: Industrial testing environments demand robust drive assemblies. Look for units designed with maintenance-free motors and heavy-duty suspension springs that resist fatigue over thousands of testing cycles, minimizing unexpected downtime in your lab.

Quick Troubleshooting: Why Is Your Particle Analysis Giving Inconsistent Results?

Even with high-end equipment, operator error or environmental factors can introduce data variances. Here is how to diagnose common lab discrepancies:

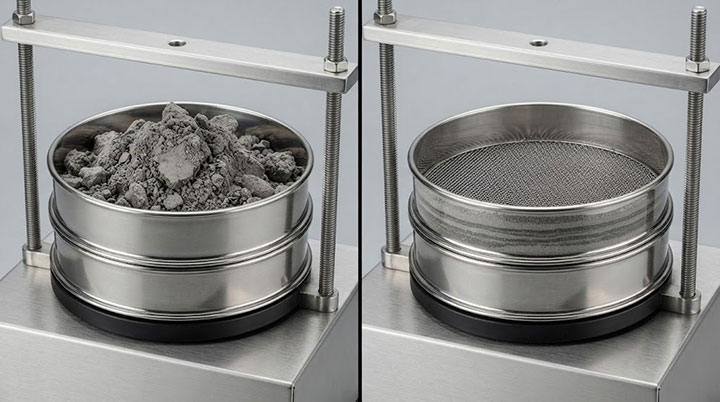

Split-screen macro photograph of a Dahan laboratory sieve shaker showing incomplete stratification and mesh blinding with grey aggregate (left) versus complete stratification and a clean mesh after stabilized sieving (right).

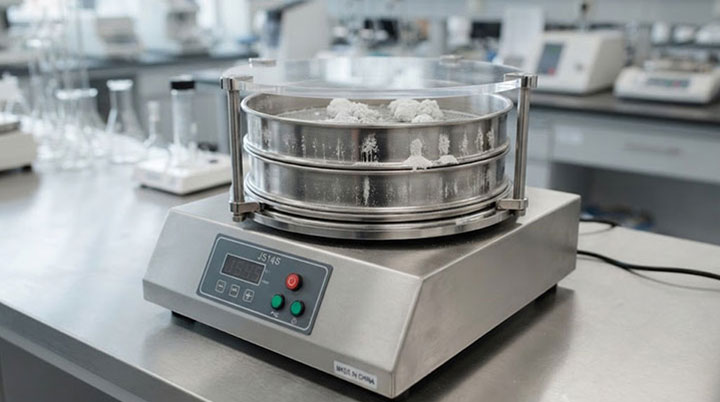

Close-up view of a Dahan laboratory sieve shaker's top sieve stack, where fine hydroscopic powder has formed dense clumps stuck to the mesh, and fine particles are electrostatically clinging to the vertical stainless steel inner walls.

Inadequate Sieving Time or Blinding

If two consecutive tests yield conflicting percentage weights, the cause is often incomplete particle stratification or progressive mesh blinding. Run a time-series test to establish the precise endpoint where sample weight stabilizes, rather than relying on arbitrary run times.

Environmental and Sample Handling Factors

Changes in ambient humidity can cause hydroscopic powders to clump inside the stack, while static electricity traps fine particles against the sieve walls. Ensure samples are thoroughly dried and conditioned before placing them into the shaker.

Conclusion & Expert Recommendation from Dahan Machinery

Choosing the right laboratory sieve shaker requires balancing your material's physical behavior, particle size range, and compliance standards. Investing in a precision-engineered, reliable testing unit ensures repeatable accuracy and protects your product quality from the ground up.

Looking for a custom solution?

Are you looking for a reliable, high-precision laboratory sieve shaker tailored to your specific testing standards? Contact the engineering team at Dahan Machinery today for a custom selection solution, technical specifications, and direct expert support.

Frequently Asked Questions (FAQs)

Q1: What is the main difference between dry sieving and wet sieving?

Dry sieving is standard for free-flowing, stable powders and granular materials. Wet sieving is essential when handling ultrafine powders that tend to agglomerate heavily due to static or surface moisture, utilizing a liquid spray to gently wash fines through the mesh without damaging the particles.

Q2: How often should laboratory test sieves be calibrated or replaced?

Test sieves should be visually inspected for mesh distortion or wear after every few dozen tests. In certified laboratories operating under ISO guidelines, analytical sieves are typically subject to annual calibration checks or replacement based on usage frequency and abrasive material hardness.

Q3: Can a single laboratory sieve shaker handle both coarse aggregates and fine powders?

Yes, provided the unit allows flexible amplitude control and accommodates interchangeable test sieve diameters. However, you must adjust the agitation intensity and sieving time accordingly—high energy levels suitable for coarse gravel can easily damage delicate fine-mesh test sieves.
