Linear Vibrating Screen Troubleshooting: Common Faults & Solutions

In industrial screening operations, unexpected equipment downtime translates directly to lost production time and increased operational costs. A linear vibrating screen relies on precise synchronization and continuous mechanical stress. When a fault occurs—whether it is abnormal noise, uneven material flow, or bearing overheating—quick and accurate diagnosis is critical to preventing minor issues from turning into major failures.

This field guide provides practical troubleshooting methods for plant operators and maintenance engineers to identify root causes quickly and restore optimal equipment performance.

How a Linear Vibrating Screen Works

The linear vibrating screen is driven by dual vibrating motors mounted in reverse synchronization. As the motor shafts rotate, the eccentric blocks generate an exciting force that compels the entire screen box—along with the material on top—to execute a linear throwing motion.

During operation, materials are fed evenly onto the screening surface from the inlet. As the material is continuously thrown forward and lands back on the mesh, particles smaller than the mesh aperture drop through, while oversized particles move toward the discharge end. Understanding this linear trajectory is essential for diagnosing conveying speed issues and material buildup.

Key Components & Pre-Inspection Checklist

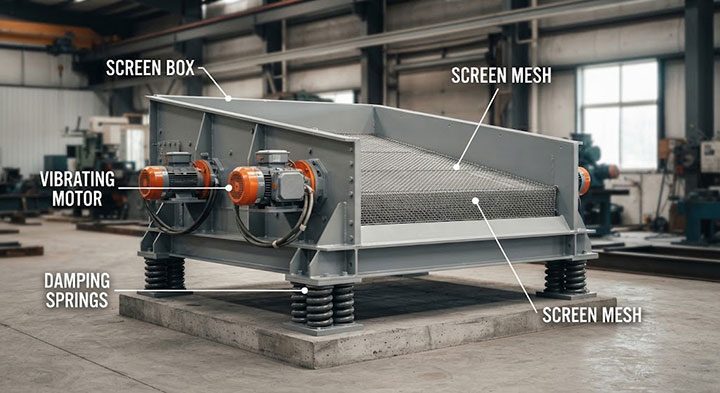

Main Components: Motors, Springs, Mesh, and Screen Box

A standard linear vibrating screen consists of a robust screen box, dual vibrating motors, damping springs, and high-wear screen meshes. The structural rigidity of the screen box and the tension balance of the mesh directly dictate separation efficiency and equipment lifespan.

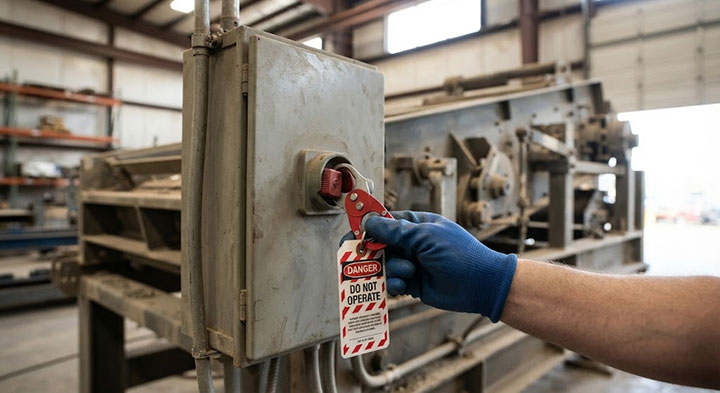

Pre-Start Safety Guidelines (LOTO Procedures)

Before conducting any inspection, maintenance, or troubleshooting, always enforce strict Lock-Out/Tag-Out (LOTO) protocols. Ensure the power supply is completely isolated and verify that all moving parts have come to a complete standstill before touching the machinery.

Common Faults, Causes, and Expert Troubleshooting Solutions

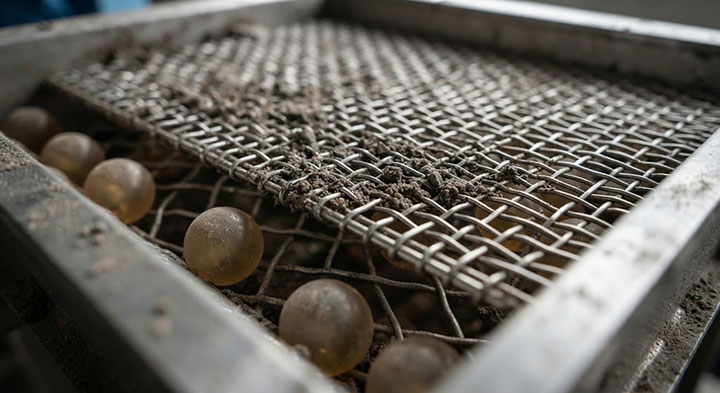

Fault 1: Screen Mesh Blinding and Material Accumulation

• Causes: High moisture content in materials, oversized particles wedging into the apertures, or insufficient mesh tension.
• Solutions: Clean the mesh regularly. Adjust feed rate to prevent overloading. If processing sticky materials, ensure proper tensioning or consider adding anti-blinding devices (such as bouncing balls or polyurethane cleaning elements).

Fault 2: Abnormal Noise and Excessive Vibration

• Causes: Loose anchor bolts, damaged damping springs, or structural cracks on the screen box.
• Solutions: Immediately shut down the machine. Inspect and retighten all base bolts. Replace broken or fatigued springs instantly, and check side plates for stress fractures.

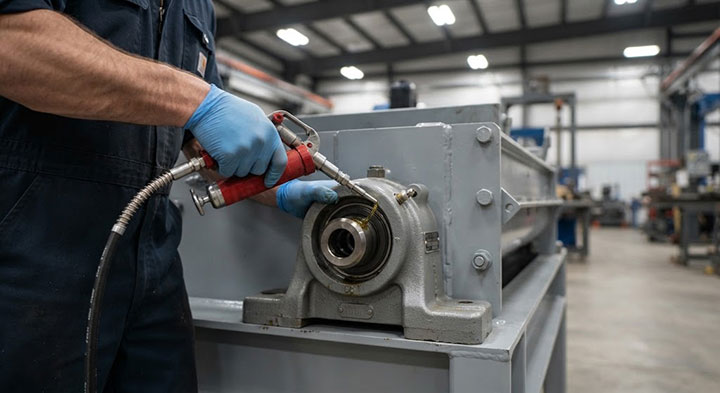

Fault 3: Bearing Overheating and Premature Failure

• Causes: Lack of lubrication, excessive grease, contaminated lubricant, or incorrect bearing installation clearance.
• Solutions: Check grease levels; fill bearings to roughly one-third to half capacity. Use clean, high-temperature lithium-based grease and replace worn bearings immediately if internal races show scoring.

Fault 4: Poor Material Stratification and Conveying Speed

To help you better identify the ideal screening pattern, the following video demonstrates the standard stratification process of a particle linear vibrating screen:

• Causes: Incorrect motor phase angle synchronization, uneven feeding, or incorrect inclination angle of the screen box.
• Solutions: Re-align dual motor rotation directions and verify eccentric block angles. Ensure the feed chute distributes material uniformly across the entire width of the top deck.

Preventive Maintenance & Operational Best Practices

Proactive maintenance is the cornerstone of maximizing the operational lifespan and screening efficiency of your linear vibrating screen. Implementing a disciplined maintenance routine prevents unexpected downtime and expensive repairs.

Daily Inspection Routine

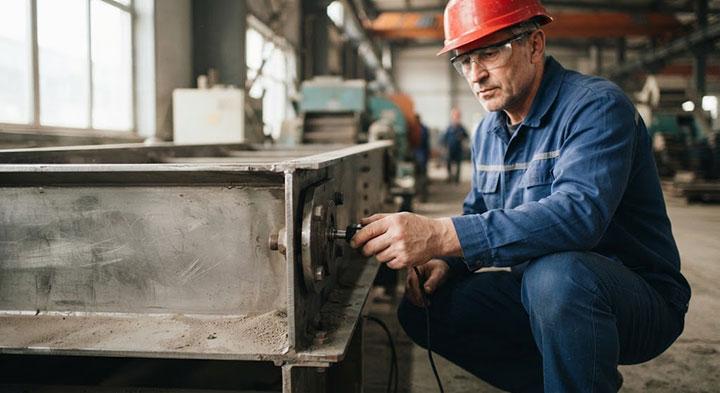

Operators should perform a quick visual and acoustic check before every shift. Monitor operating sound for sudden changes, check motor surface temperature, and ensure there are no unusual obstructions in the discharge chutes.

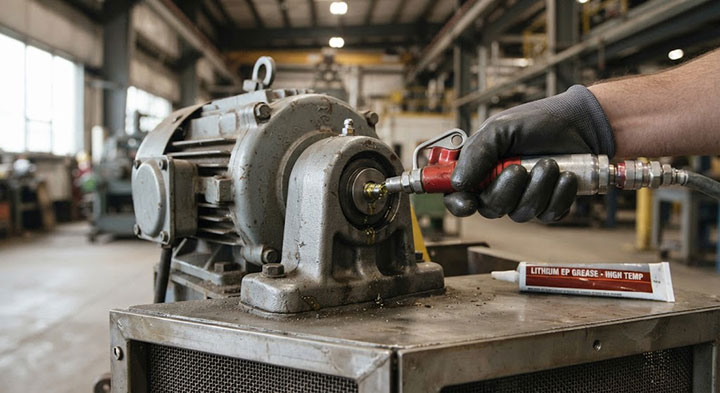

Lubrication Management for Vibrating Motors

Establish a strict lubrication schedule based on running hours rather than calendar days. Use high-quality, high-temperature resistant lithium grease. Avoid over-greasing, as excessive lubricant traps heat and leads to premature bearing failure.

Fastener Tightening and Structural Checks

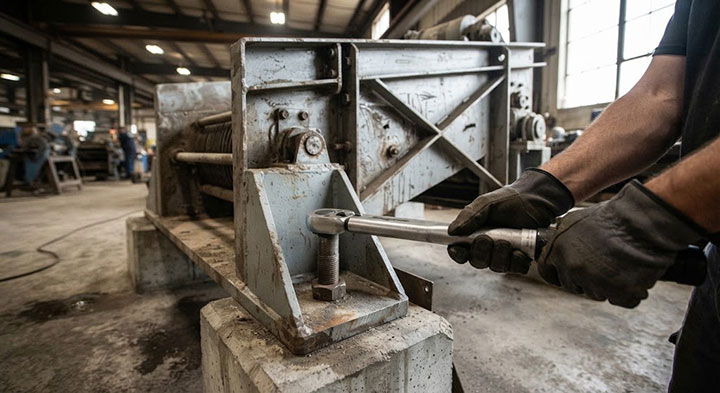

Continuous high-frequency vibration naturally loosens mechanical fasteners over time. Routinely check and retighten all critical bolts—especially motor mounting bolts and beam connections—during scheduled maintenance windows.

When to Replace Parts vs. Upgrading the Entire Machine

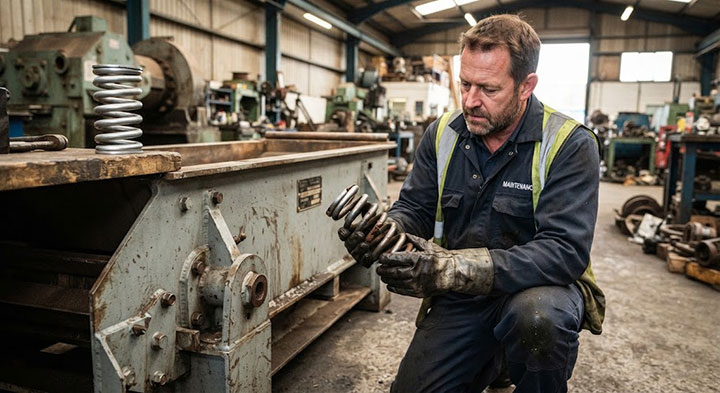

Deciding whether to replace individual components or invest in a new screening machine depends on the frequency of failures and overall equipment wear. Routine maintenance items—such as screen meshes, damping springs, and seals—should be replaced immediately upon showing signs of fatigue.

However, if the screen box exhibits recurrent structural cracking, severe side plate deformation, or if production requirements have outgrown current capacity, component-level repairs become a temporary fix. In such cases, upgrading to a modern, higher-capacity linear vibrating screen is more cost-effective in the long run to significantly reduce recurring downtime and boost output.

Frequently Asked Questions (FAQ) About Linear Vibrating Screen Maintenance

What causes a linear vibrating screen to throw materials unevenly?

Uneven material throwing or biased flow is typically caused by incorrect motor phase angle synchronization, misaligned eccentric blocks, or uneven feeding across the inlet. Verifying motor rotation directions and ensuring a uniform feed rate will resolve this issue.

How can I prevent screen mesh blinding when processing wet materials?

To prevent mesh blinding with high-moisture materials, ensure proper mesh tensioning to reduce wire vibration damping. Additionally, installing secondary anti-blinding aids such as rubber bouncing balls or polyurethane cleaning components under the screen mesh is highly effective.

What is the correct lubrication interval for vibrating motor bearings?

Lubrication schedules should be based on operational hours rather than calendar time—typically every 200 to 300 operating hours. Always use high-temperature lithium-based grease and fill the bearing housing to only one-third or half capacity to prevent overheating from excess grease.

When is it more cost-effective to replace the whole machine instead of repairing it?

If the screen box suffers from recurrent structural fatigue, severe frame distortion, or if your facility requires a significant upgrade in production capacity, repeated component repairs will only lead to continuous downtime. Upgrading to a new, high-efficiency screening unit becomes the more economical choice.

Field Application: Solving High-Wear Screening Challenges in Glass Recycling

In real-world industrial applications, material characteristics dictate maintenance strategies. For instance, in a recent project handling broken glass recycling at Dahan Machinery, the abrasive nature and sharp edges of glass particles presented severe challenges regarding mesh blinding and rapid frame wear.

By adjusting the linear vibration intensity, optimizing the screen mesh aperture selection, and reinforcing the contact points with high-wear resistant materials, our engineering team successfully resolved material accumulation and doubled the continuous operational lifespan of the screening unit. Real-world case insights like this ensure that our troubleshooting methods are proven directly on the factory floor.
