In industrial powder and particle processing, multi-deck screening is designed for high efficiency and precise separation. However, production supervisors often face a silent profit killer: mesh blinding and pegging. When throughput drops and product purity degrades, the root cause usually points right back to the screening surface.
While often used interchangeably, these two phenomena represent distinct mechanical challenges on a multi-deck screen:
In multilayer setups, lower decks are especially vulnerable because materials have already undergone primary separation, leaving finer, harder-to-handle fractions behind.

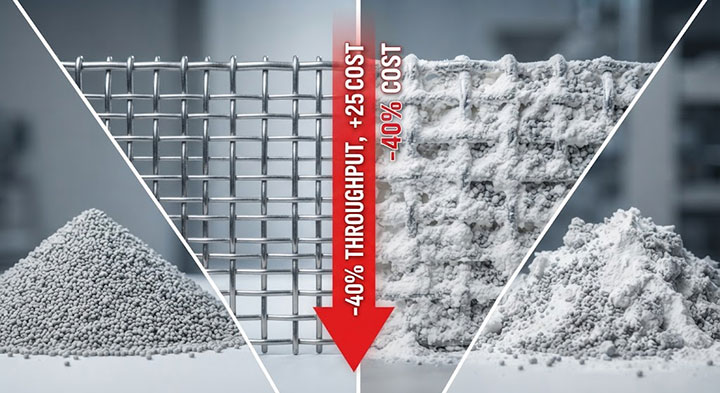

Treating screen blockage as a minor maintenance nuisance leads to compounding operational losses:
Solving mesh blinding is not just about cleaning a screen—it is about restoring line profitability and protecting equipment lifespan.
To effectively mitigate screen clogging and restore operational stability, engineers must first identify the precise mechanical or physical triggers occurring across the multi-deck structure.

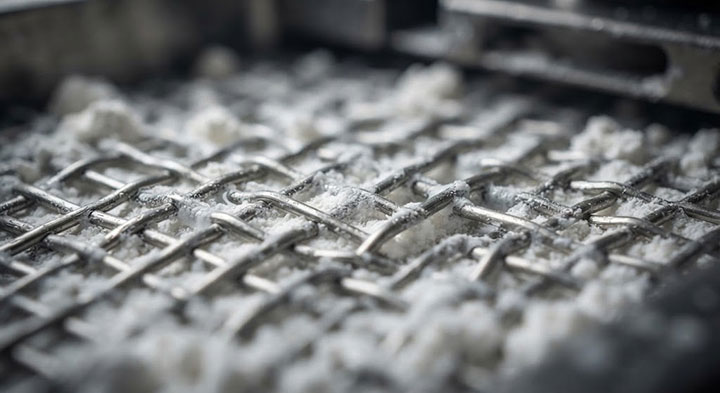

Even a minimal moisture percentage in fine powders creates liquid bridges between particles. This capillary force causes individual particles to agglomerate and cling aggressively to the metal wires, completely sealing off the mesh openings.

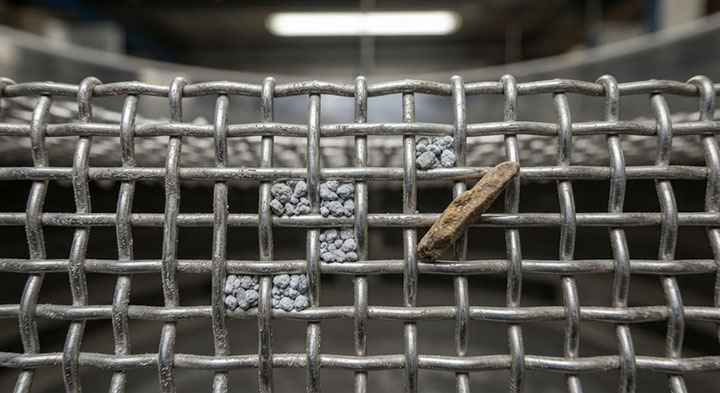

Particles whose dimensions closely match the mesh aperture are the primary culprits of pegging. Furthermore, flaked, elongated, or angular particles enter the openings at awkward angles, wedging tightly instead of passing freely.

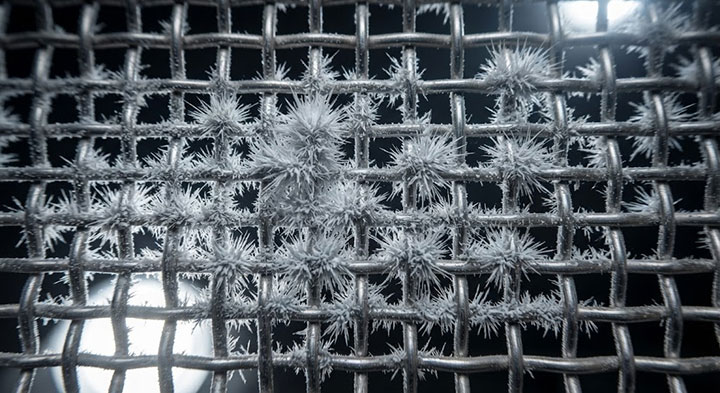

Dry, insulating powders (such as certain plastics, fine minerals, or chemical reagents) generate intense friction during high-speed vibration. This static buildup causes particles to stick firmly to the mesh wire, defying standard gravitational flow.
Overloading the top deck floods the screening surface, preventing particles from making proper contact with the mesh wire. Meanwhile, uneven feeding causes localized choking, rendering parts of the multi-deck screen completely ineffective.
When passive measures fail to control screen blinding, integrating specialized active de-blinding systems directly onto the multi-deck structure becomes essential.
By applying high-frequency, low-amplitude ultrasonic vibrations directly to the screen mesh, this technology breaks surface tension and significantly reduces electrostatic bonding. It is the premier choice for ultra-fine powders (often below 100 mesh) that resist standard mechanical agitation.

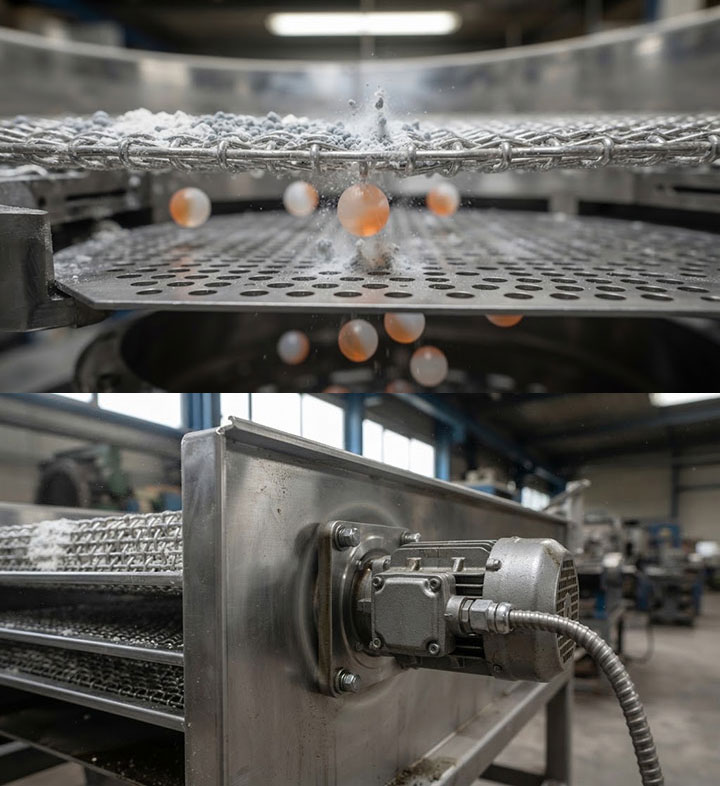

Positioned beneath the screen mesh, perforated decks house resilient rubber or silicone bouncing balls. As the vibrating screen operates, these balls continually strike the underside of the mesh, dislodging wedged near-size particles and preventing material buildup.
Traditional setups rely heavily on lower-frequency centrifugal force. Utilizing high-frequency, low-amplitude direct-drive motors increases particle-to-mesh contact frequency, preventing particles from settling and lodging into the apertures.
For abrasive or semi-sticky materials, rigid metal wire can be replaced with flexible modular polyurethane panels. The natural flex of the polyurethane material under vibration actively prevents particles from pegging or blinding the apertures.
Beyond hardware installations, operator-level adjustments to machine mechanics and material flow play a critical role in preventing screen choking.
See how optimized linear vibration effectively moves material to minimize localized mesh blinding.
Choosing the correct mesh material and configuration is often the most cost-effective line of defense against continuous blinding and pegging issues.

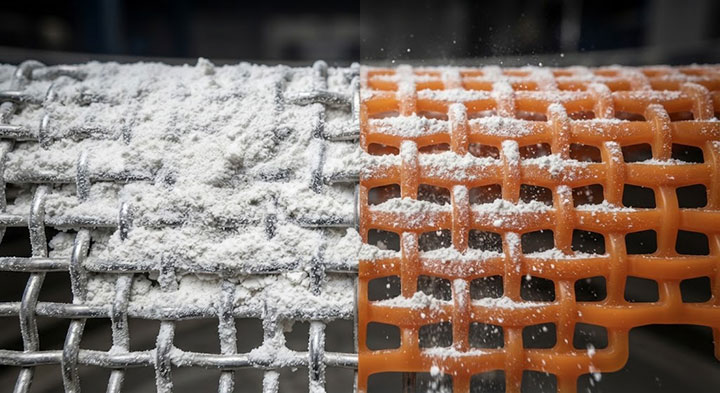

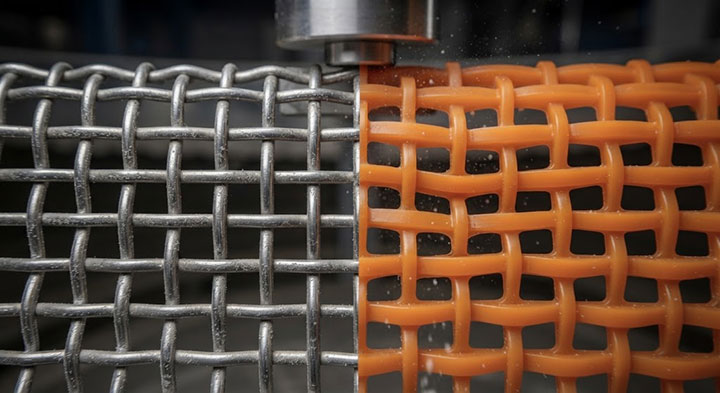

While traditional stainless steel wire mesh provides high open area and precise cut-points, rigid metal lacks flexibility under sticky loads. In contrast, modular polyurethane panels feature elastic apertures that expand and contract slightly during vibration, actively shedding near-size or wedged particles.
Different operating environments demand tailored mesh configurations to maintain continuous throughput:
| Industry Sector | Common Material Challenges | Recommended Mesh & Anti-Blinding Solution |
|---|---|---|
| Fine Chemicals & Pharmaceuticals | Electrostatic fine powders, clumping, high hygiene demands | Stainless steel mesh paired with ultrasonic de-blinding systems |
| Food Processing | Moisture sensitivity, organic cohesion, strict safety standards | Woven wire cloth equipped with food-grade silicone bounce balls |
| Mining & Aggregates | Heavy impact, abrasive wet ores, severe pegging | Modular polyurethane panels or self-cleaning slotted wire mesh |
Real-world application demonstrates how targeted equipment configuration resolves persistent sorting and clogging bottlenecks.
Watch the dynamic jumping motion of activated carbon granules on a linear vibrating screen—an effective way to prevent blinding during high-throughput processing.
In agricultural and food processing operations involving multi-deck separation (such as grading fibrous or light-density materials like dried daylilies), traditional screening lines frequently encounter structural blinding and material compaction on lower fine-mesh decks. Manual sorting is labor-intensive, while standard improper mesh setups cause severe production delays and inconsistent grading accuracy.
To address these challenges, our engineering team deployed a custom-configured Multi-Deck Linear Vibrating Screen solution:
The Result: The upgraded multi-deck system effectively resolved severe mesh choking, increased overall processing throughput, and delivered precise separation cuts that met strict commercial export standards. Read the full daylily linear vibrating screen case study here.

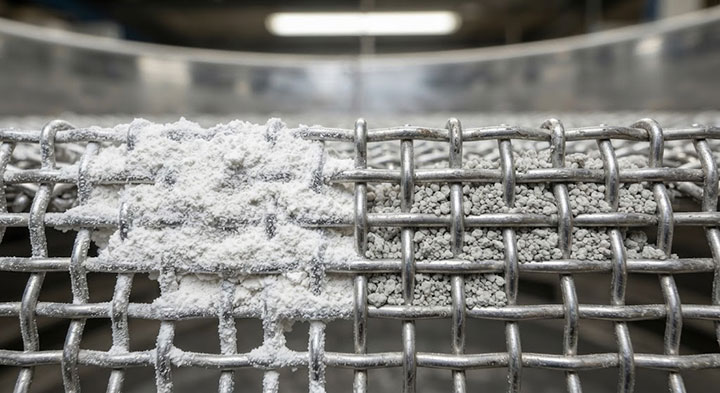

Blinding occurs when fine or cohesive particles adhere to the wire strands and seal off the mesh openings. Pegging (or wedge pegging), on the other hand, happens when near-size individual particles become physically wedged and trapped tightly inside the mesh apertures.
Ultrasonic de-blinding systems apply high-frequency, low-amplitude acoustic vibrations directly to the screening surface. This energy breaks surface tension, reduces electrostatic bonding, and prevents fine particles from clinging to the wire mesh.
Yes. Many anti-blinding solutions—such as bounce ball assemblies, retrofittable ultrasonic transducers, or modular polyurethane panels—can be integrated into existing multi-deck vibrating screens with minimal structural modification.
