Single-Deck vs. Multi-Deck Vibrating Screens: How to Choose the Right One for Your Plant

The Real Engineering Problem You Are Trying to Solve

When designing or upgrading a processing line, plant engineers often get bogged down in theoretical capacities and motor power ratings. However, physical reality on the factory floor tells a different story. Choosing between a single-deck or multi-deck vibrating screen is rarely just about checking a box on a spec sheet—it is about resolving bottlenecks where throughput clashes with separation accuracy.

The Hidden Bottleneck of Single-Stage Separation

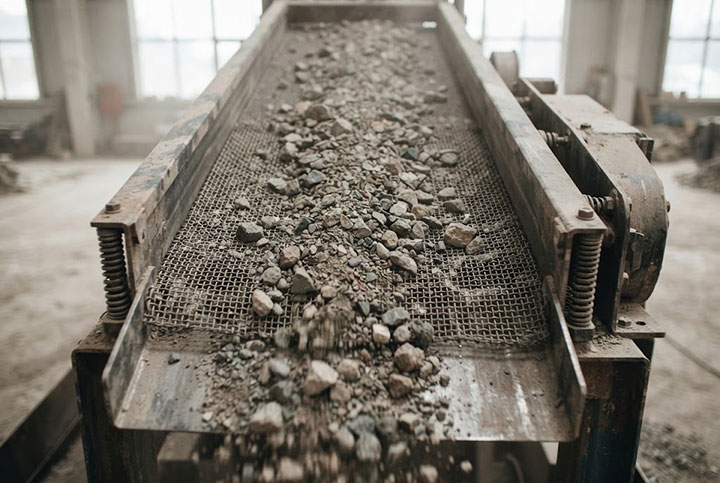

A single-deck unit excels at heavy volume and rapid scalping, but forcing it to handle complex sizing often triggers a domino effect of operational inefficiencies. If your raw feed contains a wide distribution of particle sizes, a single surface forces a compromise: you either sacrifice oversized retention or let undersized material contaminate your final discharge. Recognizing this limitation is the first step toward optimizing your plant's yield.

Why More Decks Do Not Always Equal Better Output

Conversely, assuming that adding more decks automatically solves your grading challenges is a costly engineering trap. Each additional deck introduces vertical drop, increases structural weight, and concentrates mechanical stress. If the top mesh experiences higher volumetric impact than the bottom fine screen, your machine falls out of equilibrium—leading to premature mesh failure and localized material pooling rather than smooth stratification.

Structural Realities of Single-Deck vs. Multi-Deck Units

The mechanical behavior of a vibrating screen stems directly from how its frame translates kinetic energy from the vibration motor or exciters to the screening media. Understanding this structural anatomy prevents mismatching equipment capabilities with your material load.

Single-Deck: Maximizing Volumetric Flow for Bulk Material

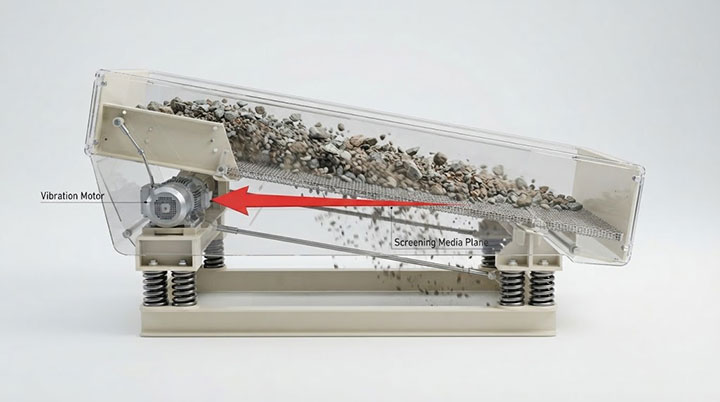

A single-deck layout prioritizes unhindered volumetric throughput. With only one layer of screening media, the entire energy vector concentrates on a single horizontal or inclined plane. This configuration reduces structural dead zones, allowing high volumes of bulk material to cascade rapidly across the surface. It is structurally optimized for scalp tasks, oversized removal, or straightforward two-fraction classification where volume outweighs multi-grade precision.

Multi-Deck: Balancing G-Force Distribution Across Multiple Fractions

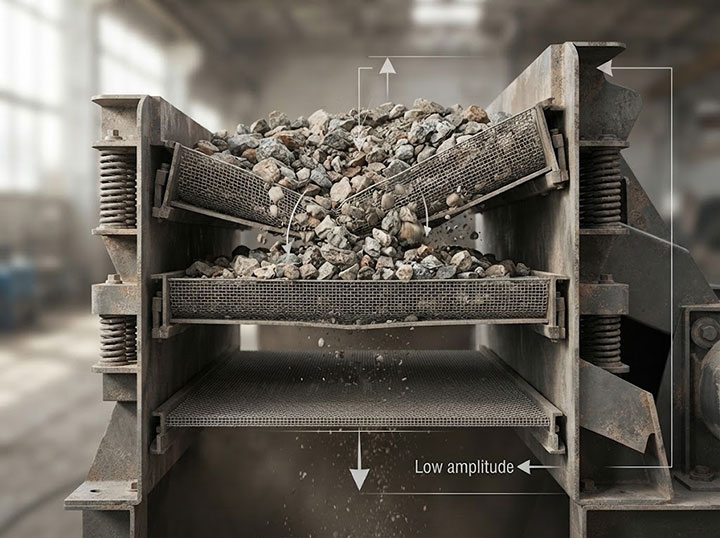

Multi-deck architectures demand sophisticated dynamic balancing. As eccentric blocks generate centrifugal force, that energy must transmit evenly through stacked frames separated by spacer plates and dampening springs. The upper decks absorb the initial heavy impact load, while lower decks handle finer particles requiring higher stratification frequency. Ensuring uniform G-force distribution across every tier is critical to prevent the lower fine-mesh decks from losing amplitude and blinding prematurely.

The Cut-Point Matrix: Material Behavior Under Different Deck Configurations

A successful screening outcome depends heavily on how your material reacts to G-force and aperture size as it cascades. Evaluating your material behavior beforehand eliminates costly trial-and-error on the production floor.

When a Single Deck Suffices (And When It Fails)

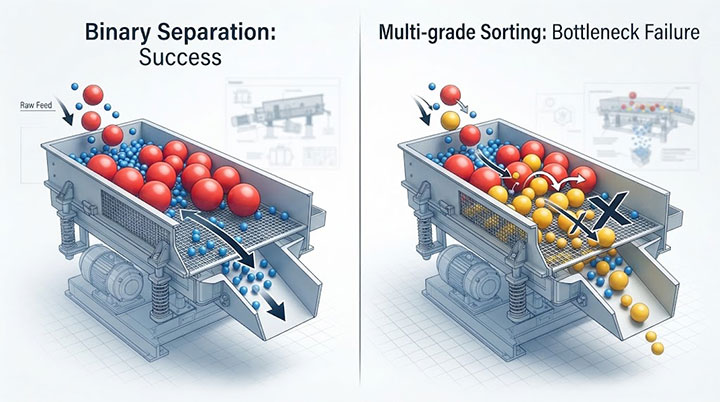

A single deck thrives when your goal is binary: separating oversize lumps from fine product, or removing minor impurities from a uniform bulk stream. However, it fails instantly if your process demands simultaneous separation into three or more marketable fractions. Forcing a single deck into multi-grade sorting creates bottlenecks where mid-sized particles repeatedly bounce across the discharge chute without finding an open aperture.

Multi-Deck Physics: Managing Cut Precision Without Sacrificing Throughput

Multi-deck setups allow you to isolate coarse, medium, and fine cuts in a single pass. Yet, physics imposes strict limits: as material drops to lower decks, the available open area decreases, and moisture or agglomeration tendencies intensify. To maintain high cut precision, the upper deck must successfully strip away heavy coarse fractions, protecting delicate lower fine meshes from undue impact and blinding.

Plant Economics: Total Cost of Ownership (TCO) Beyond the Initial Price Tag

When evaluating capital expenditure, plant managers often fixate on the upfront machine cost. However, the true financial impact of a vibrating screen is revealed over years of operation. Total Cost of Ownership (TCO) is an accumulation of maintenance labor, energy usage, footprint allocation, and production efficiency. Understanding these long-term variables is crucial for making a fiscally responsible procurement decision.

• Labor Intensity of Mesh Maintenance: Single-deck screens offer direct mesh access ensuring rapid maintenance, whereas multi-deck units require time-consuming dismantling of upper frames, significantly increasing labor intensity.
• Production Downtime Costs: Extended maintenance downtime on complex multi-deck screens results in greater cumulative revenue loss from halted production compared to the rapid screen changes of single-deck units.
• Facility Space & Footprint Economics: Achieving multi-grade separation with multiple single-deck machines multiplies your facility footprint and infrastructure costs, which a single, consolidated multi-deck unit avoids.
• Aggregated Power Consumption & Efficiency:While multi-deck screens use more robust motors, their aggregate energy consumption per ton of processed material is often lower than running several single-deck machines in series.

How Dahan Engineers Match Decks to Custom Plant Layouts

Off-the-shelf equipment rarely fits every industrial requirement seamlessly. Real-world processing plants deal with diverse variables such as factory headroom constraints, fluctuating moisture levels, and unique particle size distribution ratios.

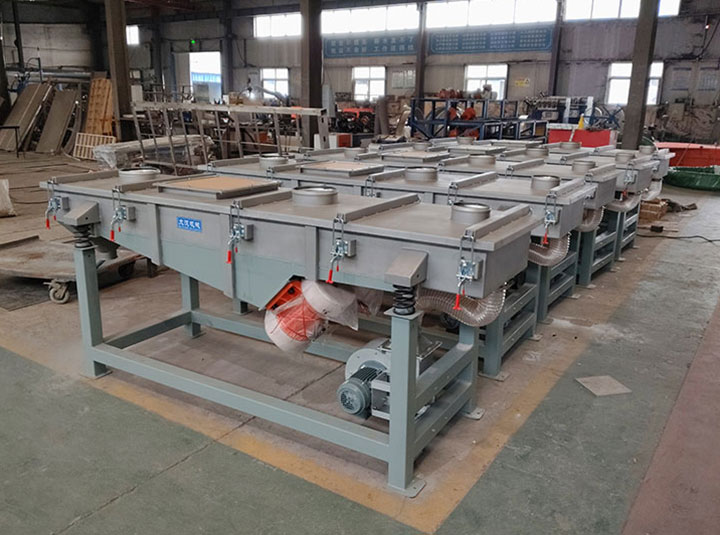

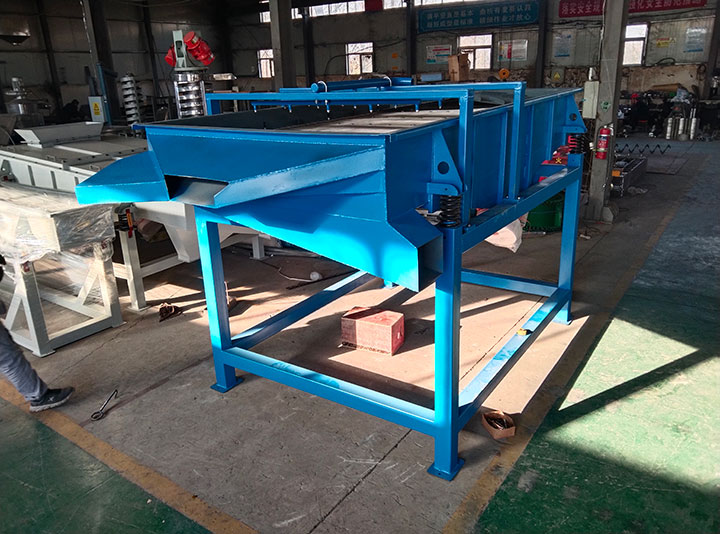

At Dahan Machinery, our engineering approach begins with material testing and particle analysis rather than pushing a standardized model. Whether designing a compact single-deck screen for high-volume scalping or configuring a multi-deck system equipped with advanced anti-blinding technologies (such as ultrasonic deblooming systems for fine powders), we tailor the frame stiffness, eccentric block weights, and inclination angles to match your exact plant layout. This custom validation guarantees that your investment achieves peak classification efficiency without unexpected operational friction.

Decision Framework: Your Step-by-Step Selection Checklist

Before finalizing your equipment procurement, run through this concise engineering checklist to confirm whether a single-deck or multi-deck vibrating screen aligns with your production targets:

• Define Output Fractions: Do you only need to separate oversize material from fine product (Choose Single-Deck), or must you sort 3 to 4 distinct particle sizes in one pass (Choose Multi-Deck)?
• Evaluate Factory Space: Is your plant constrained by horizontal footprint (favoring multi-deck stacking) or limited vertical headroom (favoring series-connected single units)?
• Analyze Material Tendencies: Does your feed material exhibit high moisture, stickiness, or blinding risks that require specialized anti-clogging configurations on lower mesh tiers?
• Calculate TCO vs. Throughput: Balance your immediate capital budget against long-term maintenance downtime and energy consumption per ton processed.

Frequently Asked Questions (FAQ) on Vibrating Screen Selection

Can a single-deck vibrating screen separate more than two particle sizes?

No. A standard single-deck unit is physically limited to dividing material into two fractions: oversize and undersize (or product and scalp waste). If your processing line requires simultaneous classification into three or more particle grades, a multi-deck vibrating screen or multiple single units configured in series is necessary.

Do multi-deck screens require more maintenance time during mesh replacement?

Traditionally, changing screens on lower tiers of a multi-deck unit demands more time. However, modern industrial designs utilize quick-release clamping mechanisms, modular frames, and side-access doors to minimize teardown time, keeping routine mesh replacement durations comparable to single-deck setups.

How does material moisture affect the choice between single and multi-deck units?

High moisture and sticky characteristics intensify blinding risks, especially on the lower fine-mesh decks of a multi-deck screen where impact energy is lower. For sticky or damp materials, single-deck scalping or multi-deck systems integrated with advanced anti-blinding technologies (such as ultrasonic deblooming systems) are strongly recommended to maintain stable production flows.
