Ribbon Mixer Blender

Introduction

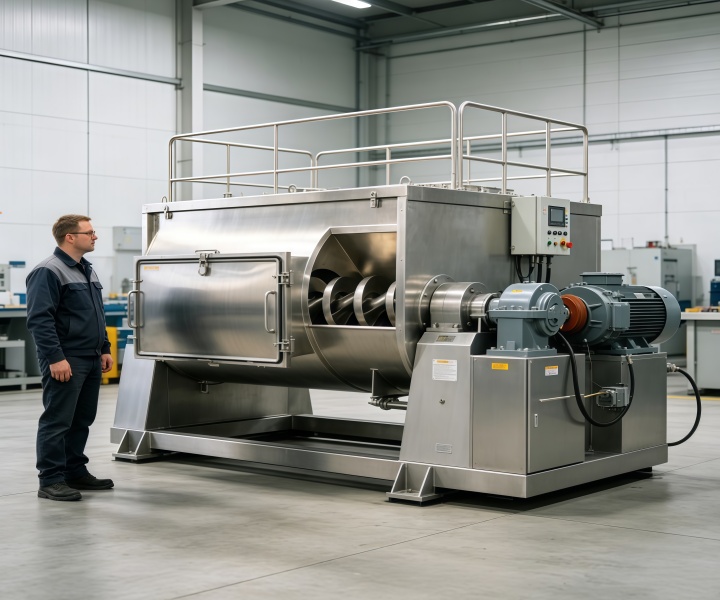

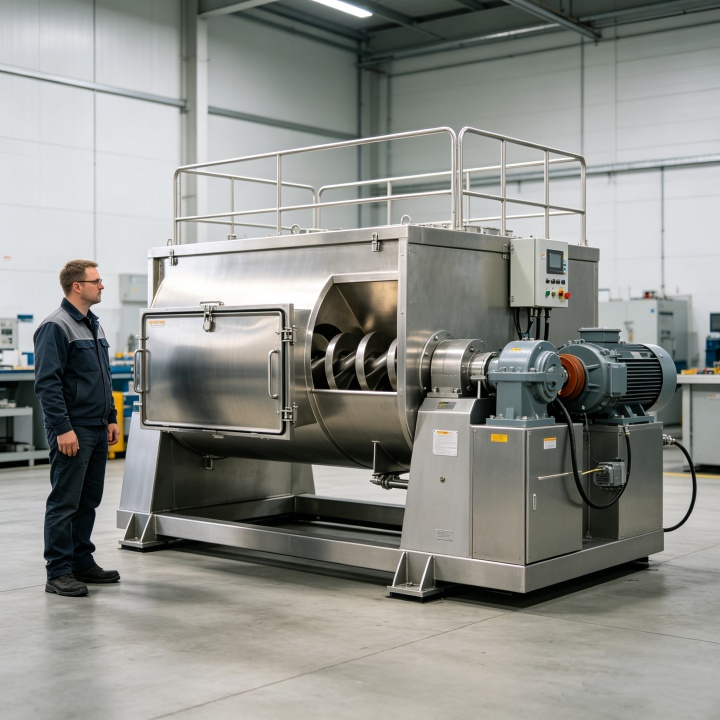

The Ribbon Mixer Blender is a versatile and high-performance industrial mixing machine designed for the homogeneous blending of dry powders, granules, and free-flowing bulk solids. Characterized by its unique inner and outer helical ribbon agitators, this blender delivers rapid, uniform mixing with minimal product degradation. It is the industry standard for applications requiring gentle yet thorough action, from food processing and pharmaceuticals to chemicals and construction materials. Whether you are scaling up from lab production or integrating into a fully automated production line, the ribbon mixer offers reliability, scalability, and outstanding batch-to-batch consistency.

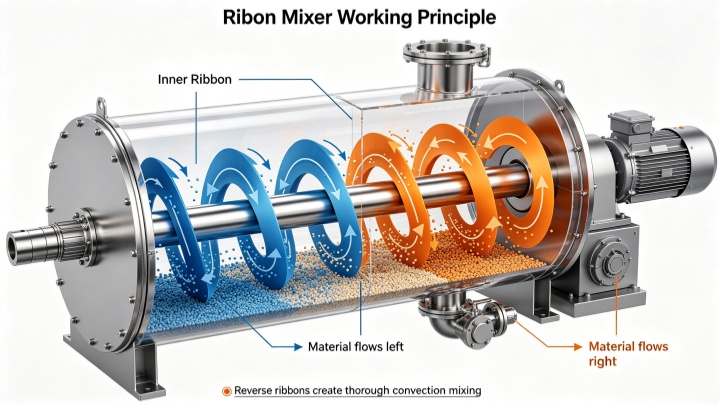

Working Principle

The ribbon mixer operates on a dual-agitation mechanism driven by a single motor and gearbox. The machine features two sets of helical ribbon blades:

• Outer Ribbon: Moves material in one direction along the trough wall.
• Inner Ribbon: Moves material in the opposite direction along the central shaft.

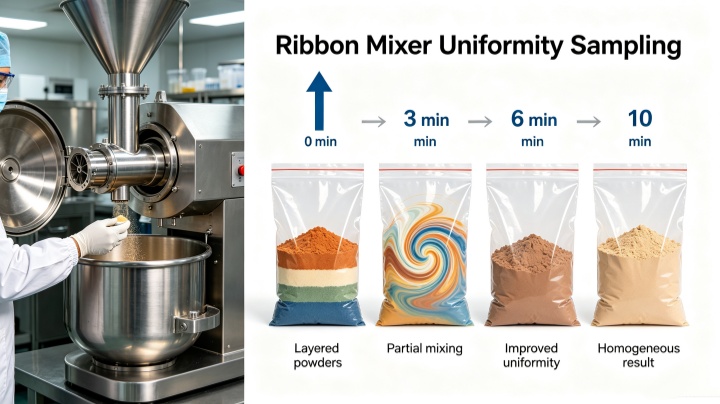

This counter-current motion creates a vigorous three-dimensional flow pattern. Materials are continuously folded, sheared, and tumbled, resulting in a rapid cross-mixing effect. The mixing cycle typically completes within 3–10 minutes, achieving a coefficient of variation (CV) of less than 5%, ensuring exceptional homogeneity even for minor ingredient additions.

Key Advantages

• High Mixing Efficiency: Achieves uniform blends in 3–10 minutes, significantly reducing production cycle times.
• Gentle Handling: The ribbon design minimizes particle attrition, preserving friable materials and crystalline structures.
• Versatile Capacity: Available from 50L to 30,000L, accommodating both R&D and mass-production needs.
• Easy Cleanability: Optional spray nozzles, removable shaft ends, and large inspection doors enable CIP (Clean-in-Place) and rapid product changeovers.
• Energy-Efficient: Optimized blade pitch and shaft speed reduce power consumption compared to other mechanical mixers.
• Leak-Proof Operation: Double mechanical seals and robust shaft packing prevent dust leakage, ensuring a safe and clean working environment.

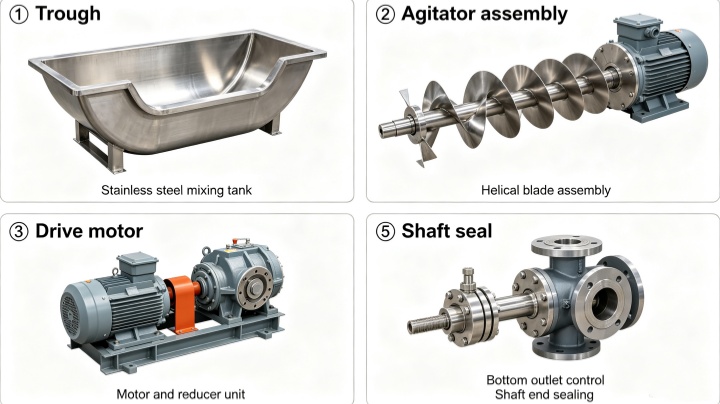

Structural Features

All contact parts are manufactured to FDA/GMP standards, with fully rounded corners and crevice-free welds to eliminate bacterial growth and cross-contamination risks.

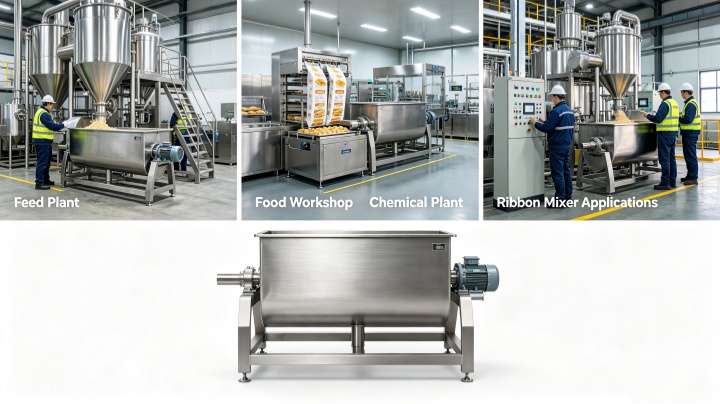

Applications

The Ribbon Mixer Blender serves a broad spectrum of industries:

• Food & Beverage: Flour blends, spices, baking mixes, seasonings, powdered milk, and instant drink powders.
• Pharmaceuticals: Tablet granulations, dry powder blends, nutraceuticals, and vitamin premixes.
• Chemicals: Fertilizers, detergents, pigments, dyes, polymer additives, and ceramic powders.
• Construction: Dry mortars, cement additives, gypsum, and thermal insulation compounds.
• Animal Feed & Pet Food: Premixes, mineral supplements, and aquatic feed ingredients.

With its robust construction and flexible customization, the ribbon mixer is equally effective for both batch and continuous blending processes, making it the go-to solution for dry material homogeneity.

For detailed specification sheets, 3D drawings, or a customized quote based on your specific material properties and batch size, please contact our engineering team.
