Vibratory Sifter for Cereals

Vibratory sifter for cereals is applied for the removal of impurities, grading, and particle size separation of raw cereal materials. Driven by a vibration motor, the screen surface induces material forward displacement to achieve particle classification. The equipment is utilized in primary and deep processing of crops such as wheat, rice, corn, oats, buckwheat, and sorghum to maintain raw material cleanliness and particle size consistency.

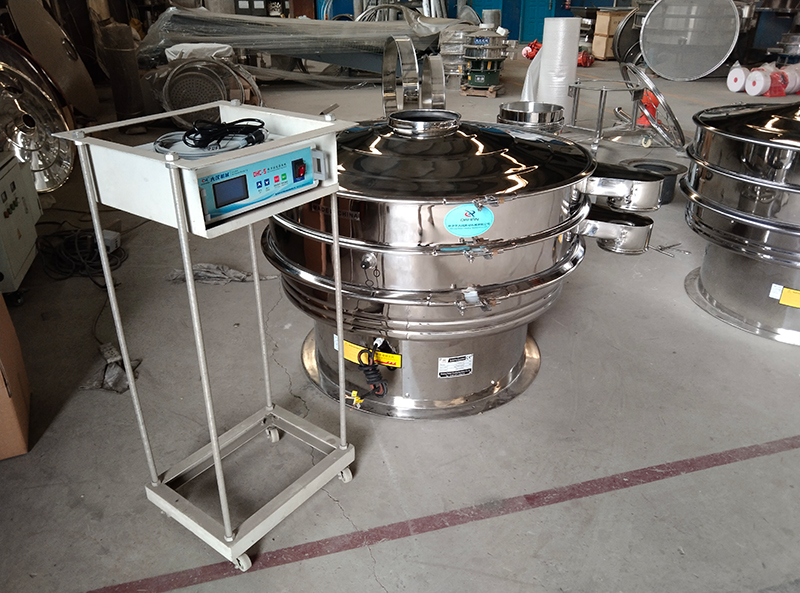

During the screening of cereal particles such as whole grains, broken rice, corn grits, or barley grains, the vibratory sifter utilizes coarse to medium mesh screens, typically ranging from 2 mesh (approximately 10 mm) to 20 mesh (approximately 0.85 mm). Multi-layer configurations allow the simultaneous separation of multiple particle size fractions, such as whole grains, broken fractions, and fine dust. The motion mode is adjusted to process fragile grains with lower impact forces to reduce breakage. Screen structures are fabricated from stainless steel (304 or 316L) to meet food-contact hygiene requirements, and can be integrated with bouncing balls or ultrasonic systems to mitigate screen blinding during the processing of higher-moisture or sticky grains like oats and millet.

Linear Vibrating Screens for Bulk Coarse Grains

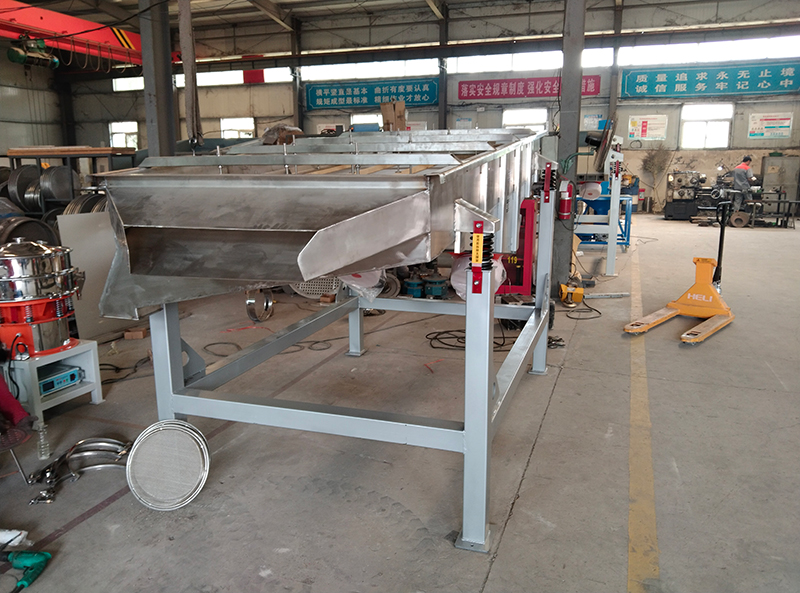

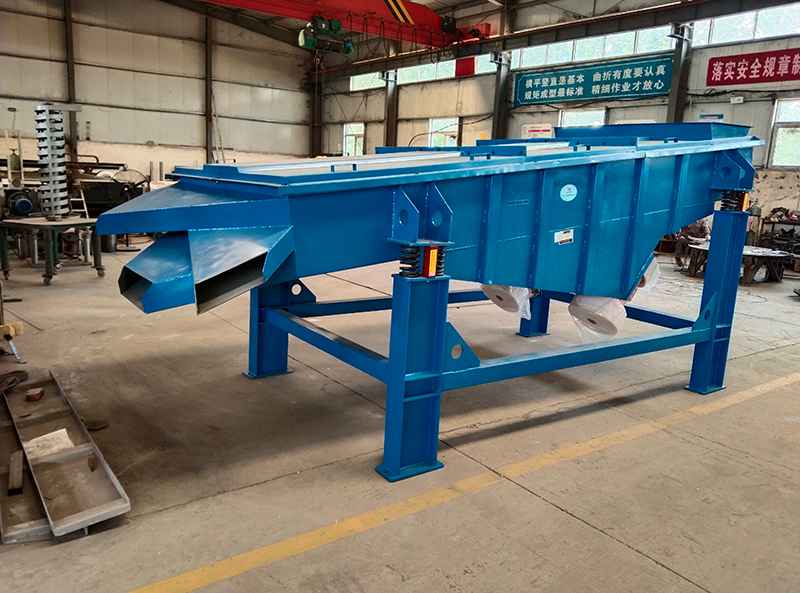

Linear vibrating screens are applied for processing bulk quantities of coarse grains, such as whole wheat, corn kernels, and broken rice, utilizing coarser mesh sizes ranging from 2 mesh (approximately 10 mm), 4 mesh (approximately 5 mm), to 8 mesh (approximately 2.36 mm). They are utilized to separate coarse impurities such as stones, straw fragments, and bag fibers while performing preliminary particle size grading. Processing capacities range from 2 to 10 tons per hour for medium models and exceed 20 tons per hour for industrial units, fitting continuous production line environments.

Technical Specifications of Linear Cereal Vibrating Screen

Model	Layer	Screening Area (mm)	Mesh Size (mesh)	Particle Size (mm)	Capacity (t/h)	Power (kW)
DZSF-520	1 - 4 layers	500 × 2000	2 - 20	0.85 - 10	≤ 3	0.37 × 2
DZSF-612		600 × 1200			≤ 5	0.37 × 2
DZSF-1020		1000 × 2000			≤ 8	0.75 × 2
DZSF-1030		1000 × 3000			≤ 12	1.1 × 2
DZSF-1224		1200 × 2400			≤ 15	1.5 × 2
DZSF-1530		1500 × 3000			≤ 20	2.2 × 2

Rotary Vibrating Screens for Fine Powders

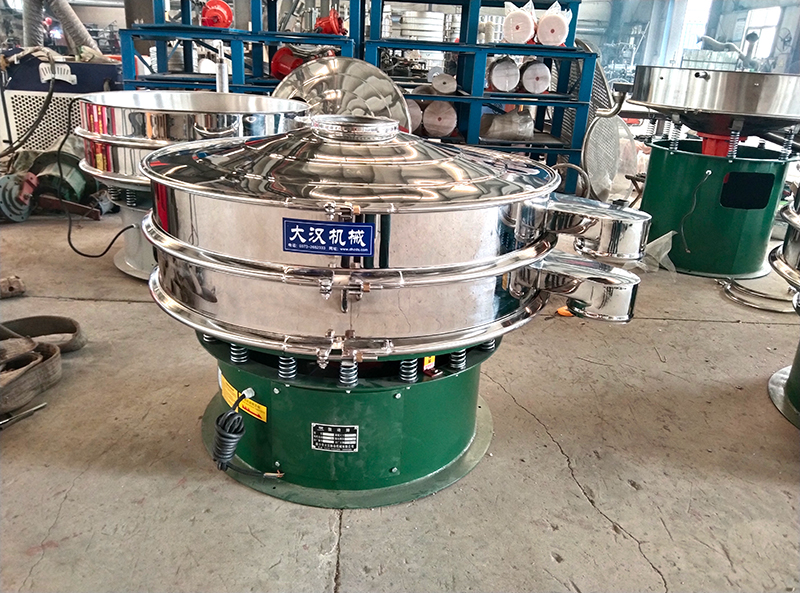

Rotary vibrating screens, also designated as circular vibrating screens, are applied for the fine screening and classification of fine particles and powdered grain products, including corn flour, rice flour, and general grain powders. Configurations support 1 to 3 screen decks to achieve 2 to 4 grading fractions. Common mesh specifications range from 40 mesh (approximately 400 micrometers), 60 mesh (approximately 250 micrometers), 80 mesh (approximately 180 micrometers) up to 120 mesh (approximately 125 micrometers) or finer. This configuration is utilized for agglomerate removal, foreign matter separation, and powder particle size control. The compact footprint facilitates screen mesh changes, fitting multi-variety and small-batch production transitions. Processing capacities typically range from 100 to 800 kilograms per hour, with larger models reaching 1 to 2 tons per hour depending on mesh dimensions and material properties.

Technical Standards and Applications in Grain Processing

Grain vibration screening applications utilize linear or rotary vibrating screens based on material physical forms and technological requirements.

Video: Industrial vibratory sifter operating in a grain cleaning and grading processing line.

Configuring appropriate mesh dimensions and deck quantities enables process control across raw material impurity removal, whole grain grading, and powder fine screening. Both equipment types utilize 304 or 316L stainless steel materials to comply with food processing hygiene standards, and can integrate mechanical cleaning mechanisms, dust extraction systems, and control modules to support operational consistency and product specifications. They are applied across grain processing facilities, flour mills, and grain deep processing enterprises.

Technical Specifications of Cereal Vibratory Sifter

Model	Diameter (mm)	Feeding Size (mm)	Frequency (RPM)	Layers	Power (kW)	Capacity (kg/h)
DH-400	400	< 10	1450	1 - 5	0.18	50 - 150
DH-600	600				0.25	100 - 300
DH-800	800				0.55	300 - 600
DH-1000	1000				0.75	500 - 1000
DH-1200	1200				1.1	800 - 1500
DH-1500	1500				1.5	1200 - 2500

How to Choose: Linear vs. Rotary Vibrating Screen for Your Cereal Processing Line

Selecting the optimal screening equipment depends on your specific raw material characteristics, particle size requirements, and production scale. Use the following criteria to determine whether a linear vibrating screen or a rotary vibrating screen fits your processing line:

Material Form and Particle Size

• Choose Linear Vibrating Screens if: You are processing bulk coarse grains, whole kernels, or seeds (such as whole wheat, corn kernels, or raw paddy) that require coarser mesh sizes (2 to 20 mesh) and the removal of large impurities like stones and straw.
• Choose Rotary Vibrating Screens if: You are handling fine powders, flours, or small granules (such as corn flour, rice flour, or starch) requiring fine mesh screening ranging from 40 mesh up to 200 mesh for de-agglomeration and strict particle size control.

Production Capacity and Plant Scale

• Choose Linear Vibrating Screens if: Your operation demands high-throughput, continuous industrial processing, with capacities ranging from 2 to over 20 tons per hour.
• Choose Rotary Vibrating Screens if: Your facility operates multi-variety, small-batch, or medium-scale production lines, with typical processing capacities ranging from 100 kg to 2 tons per hour.

Space and Maintenance Requirements

• Linear Screens: Designed with an elongated, multi-deck structure ideal for large-scale production plants with linear workflow layouts.
• Rotary Screens: Feature a compact, vertical motor footprint that saves floor space and allows for quick and easy screen mesh changes during product transitions.

Processing Parameters for Cereal Flours and Powders

For corn flour, wheat flour, rice flour, or instant porridge bases, vibrating screens are fitted with fine mesh sizes ranging from 40 mesh (approximately 400 micrometers) to 200 mesh (approximately 75 micrometers) based on target fineness specifications. These fine mesh configurations separate agglomerates, oversize particles, and foreign matter to maintain product consistency and hygiene standards. Processing capacity varies according to mesh aperture, screen surface area, and material flow properties.

For instance, a single-layer vibrating screen with a 1000 mm screen diameter processes 100 to 500 kilograms of grain powder per hour, while larger industrial-grade units achieve multi-ton continuous hourly operations. Equipment designs facilitate cleaning procedures to support multi-batch production schedules in food-grade processing environments.

Frequently Asked Questions (FAQ)

What is the difference between linear and rotary vibrating screens for cereal processing?

Linear vibrating screens are designed for high-throughput, bulk coarse grain processing (2 to 20 mesh) such as whole wheat and corn kernels to remove large impurities. Rotary vibrating screens are utilized for fine powder classification and de-agglomeration (40 to 200 mesh) for items like corn flour and rice flour.

How do you prevent screen blinding when sifting high-moisture or sticky grains like oats?

Screen blinding is mitigated by integrating mechanical bouncing balls or ultrasonic cleaning systems into the vibrating screen structure, which continuously agitate the mesh and prevent damp or sticky materials from clogging the apertures.

What materials are used in cereal vibratory sifters to comply with food safety standards?

All food-contact surfaces and structural components of the sifters are fabricated from high-grade 304 or 316L stainless steel, ensuring full compliance with international food processing hygiene and safety regulations.
