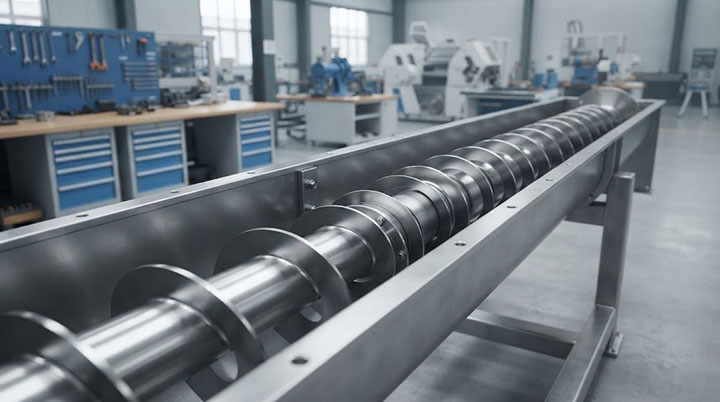

A custom industrial screw conveyor is a mechanical handling system that uses a rotating helical screw blade (flighting) within a tubular or U-shaped trough to move bulk materials horizontally, vertically, or at an incline.
As the screw shaft rotates, material fed into the housing is pushed forward by the flighting. Enclosed designs prevent dust and odor emission during transfer, ensuring clean plant operations.
Every conveyor is engineered to match your required throughput, material characteristics, and plant layout.
| Parameter / Feature | Customization Options |
|---|---|
| Conveyor Types | Tubular (Enclosed), U‑Trough, Shafted, Shaftless, Inclined, Vertical |
| Diameter Range | 100 mm to 1250 mm (Custom lengths available) |
| Material Construction | Carbon Steel, SS304, SS316L, Wear‑Resistant Alloy Steel |
| Flight Configurations | Standard, Cut & Folded, Ribbon, Cone, Hard‑faced edges |
| Angle of Inclination | Horizontal (0°) up to 90° Vertical configuration |
Tailor individual sub-components to withstand specific chemical properties, temperatures, or wear intensities.

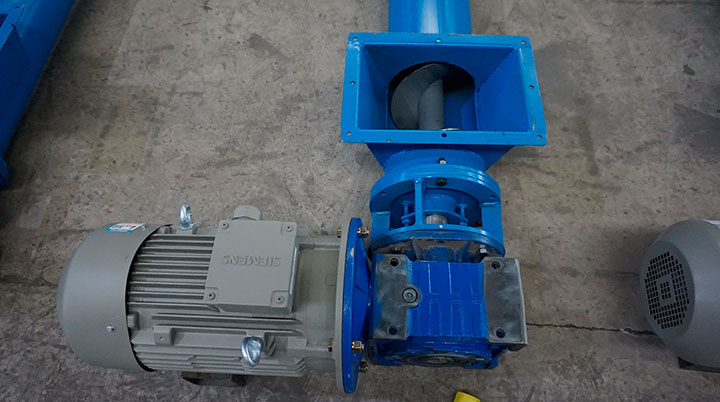

Drive & Motor Packages: Equipped with globally recognized gear reducers (SEW, Nord, Siemens) and explosion-proof motors. Custom torque and output RPM ratios are configured precisely for your load weight.
Flight & Pitch Variations: Choose from standard pitches for free-flowing powders, short pitches for steep inclinations, or ribbon flights for cohesive and sticky substances to prevent caking.
Liners & Shaft Seals: Optional replaceable UHMWPE or abrasion-resistant steel trough liners, paired with multi-layer gas-tight packing seals to completely eliminate leakage of fine dust.
Inlets, Outlets & Flanges: Custom-positioned feed hoppers, pneumatic slide gates, and matching flange connections designed to seamlessly integrate into your current ductwork and control system.

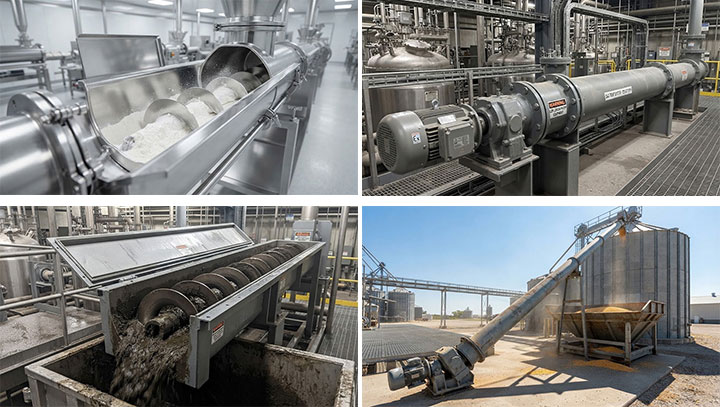

Our heavy-duty screw conveyors are engineered to perform reliably across demanding industrial processing environments.
Food Processing: Constructed with mirror-polished 304/316L stainless steel, featuring crevice-free continuous welding. Fully compliant with sanitary regulations for the contamination-free transfer of flour, sugar, and grains.
Chemical & Pharmaceutical: Fully enclosed, gas-tight systems with certified explosion-proof drives. Engineered safely to handle toxic, volatile compounds and abrasive fine powders without atmospheric exposure.
Wastewater & Municipal: Heavy-duty shaftless screw conveyors optimized for high-moisture sludge, grit, and municipal solid waste. The coreless design prevents wrapping and clogging during continuous dewatering tasks.
Agriculture & Feed Mills: High-throughput tubular and trough conveyors built for continuous, wear-resistant handling of animal feed, pellets, and bulk seeds across high-capacity grain elevators.
Explore how our engineered-to-order screw conveyor systems solve complex bulk handling challenges across diverse industries.
Application: Transporting dewatered sludge cakes and municipal treatment plant residuals.
Dahan Solution: Heavy-duty shaftless screw conveyor design to prevent clogging, specifically optimized for high-moisture and viscous waste materials.
Result: Smooth, continuous transfer of sticky residues directly to disposal containers without material buildup.
Application: Vertical lifting of soybeans and inclined feeding of poultry feed.
Dahan Solution: Tailored vertical screw conveyors achieving efficient height lifting, alongside sealed inclined screw configurations for feed mills.
Result: Space-saving vertical elevation and consistent, dust-free material delivery matching high-throughput production lines.
Every custom screw conveyor undergoes strict quality inspections and trial runs before leaving our facility.
Raw Material Inspection: Strict verification of steel plate thickness, grade compliance, and material certification through spectrometry checks.
Dynamic Balancing: Precision balancing tests performed on long screw shafts to eliminate vibration, ensure smooth rotation, and prevent premature bearing wear.
Pre-Shipment Trial Run: Simulated test runs conducted in-house to verify drive performance, sealing integrity, and noise levels, complete with inspection reports.
Quick answers to common technical and purchasing questions regarding custom industrial screw systems.
A: Shafted conveyors feature a central pipe with welded flighting, ideal for horizontal or mild inclined conveying of dry, free-flowing powders. Shaftless conveyors use a heavy spiral helix without a central shaft, making them perfect for sticky, viscous, or high-moisture materials like wastewater sludge without clogging.
A: Conveyor capacity depends on trough diameter, screw pitch, rotational speed (RPM), and material bulk density, as well as a filling factor (typically 15% to 45% depending on material abrasiveness). Our engineering team can accurately calculate your precise requirements based on your plant data.
A: For corrosive or food-grade applications, 304 or 316L stainless steel is recommended due to its superior chemical and oxidation resistance. For abrasive minerals or heavy wear applications, we utilize wear-resistant alloy steels or integrate UHMWPE trough liners to significantly extend equipment lifespan.
Ready to configure your system? Share your material specs and plant requirements with our engineering team today for a fast factory response.
